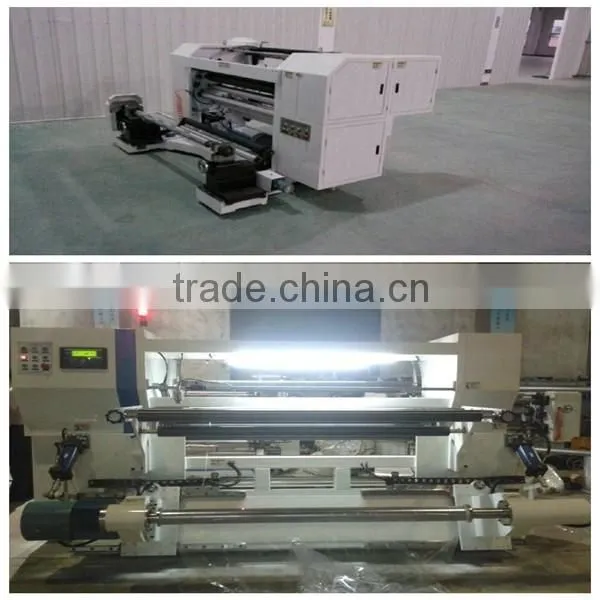

High-speed fully automatic aluminum foil slitting machine

Specifications

fully automatic slitting machine
1.Suitable for plastic film,aluminum foil,laminating film
2.Machine working speed : 230m/min

APPLICATION:

This machine is suitable for BOPP, PET, PVC. PE, A luminum foil and paper material etc.slitting and rewinding. It integrates advanced mechanical, electric, optical and pneumatic technology and components. This machine has been proved to be of high performance such as high speed, high stability, easy operation and high slitting meatness. It is a kind of idea machine for slitting.



PERFORMANCE AND FEATURES:



1)The whole machine is controlled by PLC system. It can set working parameters via touch screen as per the slitting requirement. LCD screen disply and moniter the working status. The control system has the function such as start buffer, loose proof and meter counter etc, and it is very easy for operation.



2: Introduce automatice tension control system for unwinding , keep the unwinding tension constant. It is also can controlled by taper control according to slitting requirement system for Edge position control, track edge or track line,automatically ensures the correct position of the runing material.

3:Shaft less pneumatic clutch for unwinding roll loading and hydraulic pressure lift utility.

4: Main drive and rewinding section is driven by two vector control motor separately.Rewinding tension is controlled by PLC system according to the preset parameters and rewinding diameter as per slitting requirement. The control method is automatic digital taper.

5: The rewinding roller is air differential shaft, slip force can be adjusted automatically to accommodate thickness variety of the material for multi-roller slitting.



SPECIFICATION:

Type	YFJL-400
Thickness of material	0.012-0.15mm
Max.unwinding width	1300MM
Max.unwinding diameter	Φ700MM
Width of final roll	50-700MM
Max.rewinding diameter	Φ480MM
Internal core diameter	Φ76MM OR 152MM
Max.Mechanical speed	400M/MIN
Max. slitting & rewinding speed	230M/MIN
Total power	12KW
weight of machine	2200KG
overall dimension (L*W*H)	2300*1900*1500MM
