Home > Instruments & Meters > Test Instrument > Test Machine > RK2672 Hi-pot TesterHigh Voltage Withstand Tester Hi-pot Tester Insulation Tester

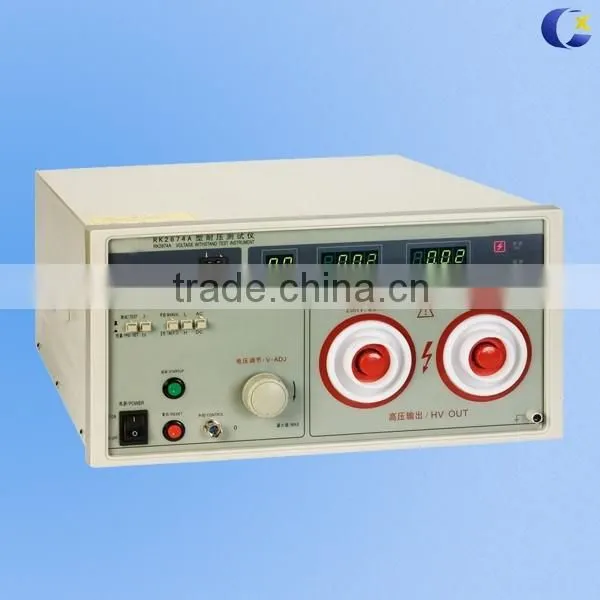

RK2672 Hi-pot TesterHigh Voltage Withstand Tester Hi-pot Tester Insulation Tester

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

RK2672

Contact Supplier Request Quote Chat Now

Shenzhen Chuangxin Instruments Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name cx

Model Number RK2672

Power Electronic

Usage Other, hipot testing

RK2672 Hipot tester 0~5kv Withstand Tester Hi-pot Tester Insulation Tester

Key words: withstanding voltage tester , high Voltage tester, Hi-pot tester

Description:

RK series Dc high voltage generator is according to China industry standard ZBF 24003-9, research, produce portable dc high voltage generator, is suitable for power department, mines power department, scientific research units, railway, chemical industry, power plant, etc to test the high voltage of lightning arrester of zinc oxide, magnetic blow lightning arrester, power cable, generator, transformer, switch equipments and so on .

Application

RK2672 is the special equipment of DC voltage withstand test and leakage current test for the light arrestor, cable and HV equipment for the power department and industry or mine customers. The device is the updated replacement for which is developed based on PRC Energy Department's Standard and complied with the requirement of No-Gap Oxygen-Zn Light Arrestor(GB 11032-89).
The RK2672 adopts new technology, new material and new parts with the features like: big power capacity, small volume, light weight and the protection functions like reliable over-voltage, over-current and 0-voltage position switch-off. It has 0.75 times voltage storage and time relay and can set timing sound alarm in the testing. The whole instrument is portable ,easy operation, safe and reliable which is quite suitable for the site test of power department.

Technical Parameter:

Model	RK2672A/AN	RK2672B	RK2672C	RK2672D	2672E
Output Voltage Range	0~5kv(AC/DC)	0~5kv(AC)	0~5kv(AC/DC)	0~5kv(AC/DC)	0~5kv(AC)
Voltage Resolution	10V	10V	10V	10V	10V
Voltage Accuracy	±5%	±5%	±5%	±5%	±5%
Leakage current (AC)	0-2/20mA	0-100mA	0-2/20/100mA	0-2/20/200mA	0-2/20/200mA
Leakage current (DC)	0-2/10mA		0-2/20mA	0-2/20mA
Current Resolution	0-2mA:1μA 2-20mA:10μA	0~2mA:1μA 2~20mA:10μA 20~100mA:100μA		0~2mA:1μA 2~20mA:10μA 20~200mA:100μA	0~2mA:1μA 2~20mA:10μA 20~200mA:100μA
Current Accuracy	±5%
Measurement Time Setting	0s-99s,Continuously setting and manual
Maximum output power	100VA	500VA	500VA	1000VA	1000VA
Capacitor of Transformer	500VA	750VA	750VA	1500VA	1500VA
Display Form	LED Digital display
Power Requirements	220V±10%,50Hz±5%
Operation Environment	0°C~40°C,≤85%RH
Dimensions	320270180mm		430370200mm		430370200mm
Weight	9.4kg	13.2kg	17.2kg	32kg	32kg

Service we can provide:

1.High quality guarantee.

2.Shipment/Freight with professional documents.

3.Packing as your request, with photo before shipment.

4.Professional after-service from our engineers.

5.Warrantly period one year.

Our advantages:

Professional technology support.

Full experience of large numbers containers loading in Chinese sea port.

Fast shipment by reputed shipping line.

Best service after shipment with emails.

Cargoes photo before and after loading into container.

Our concept:

1.Client is first. We are trying to bring maximum profit to our clients and we only share small.

2.Credibility is the most important.

3.Quality control is our life.

4.Great sense of responsibility.

We will be responsible for not only our products, our clients, our suppliers, also the society

We can also provide Test Fingers & Probes,Spring impactor,Go and IEC60061-3 Not Go Gauge,Flammability Testing equipment,Plug and Socket Gauges ,ETC

welcome your inquiry!

Skype:Bellacxyq
