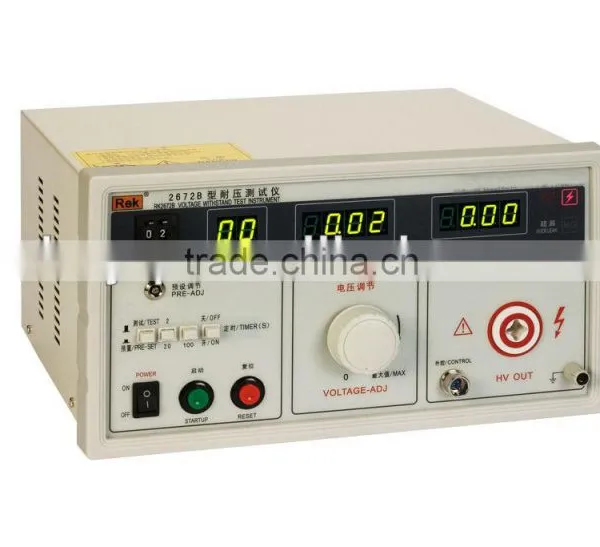

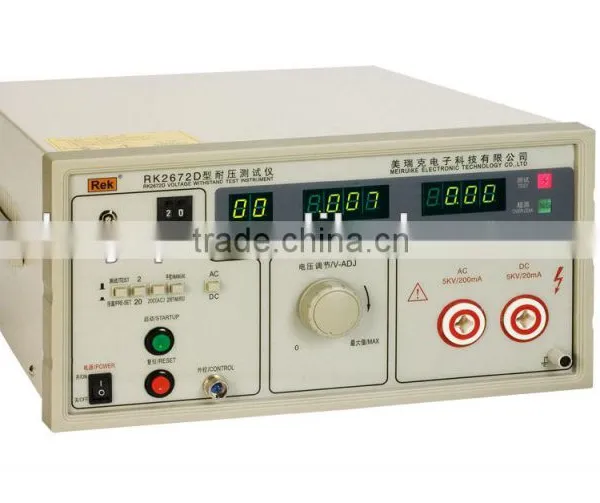

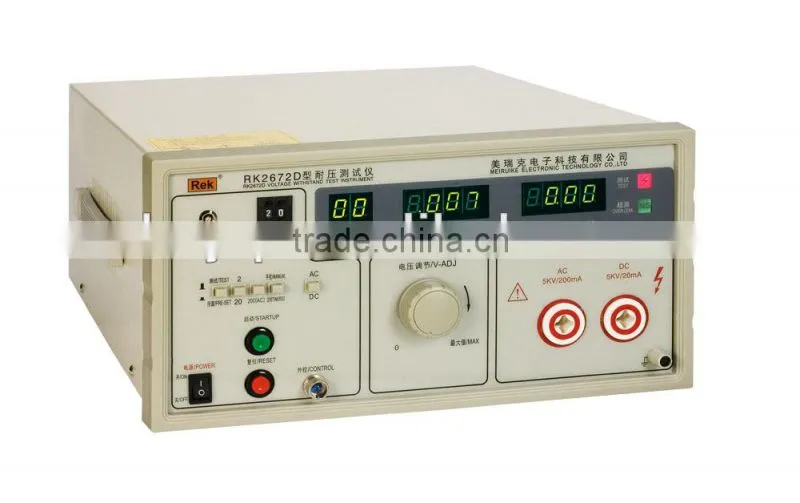

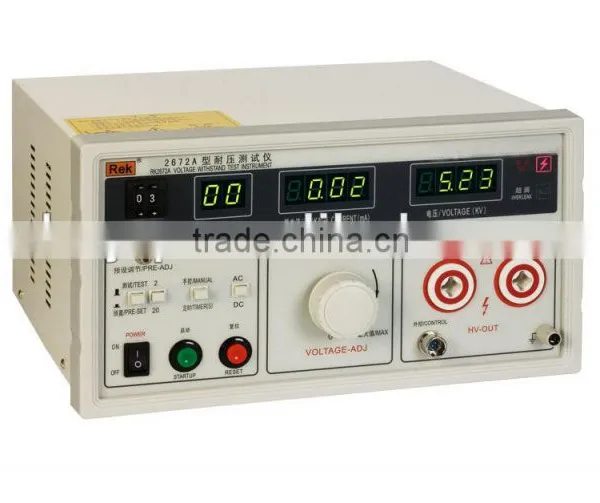

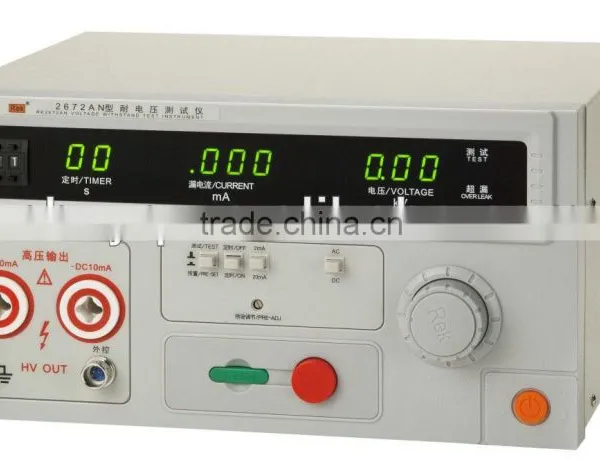

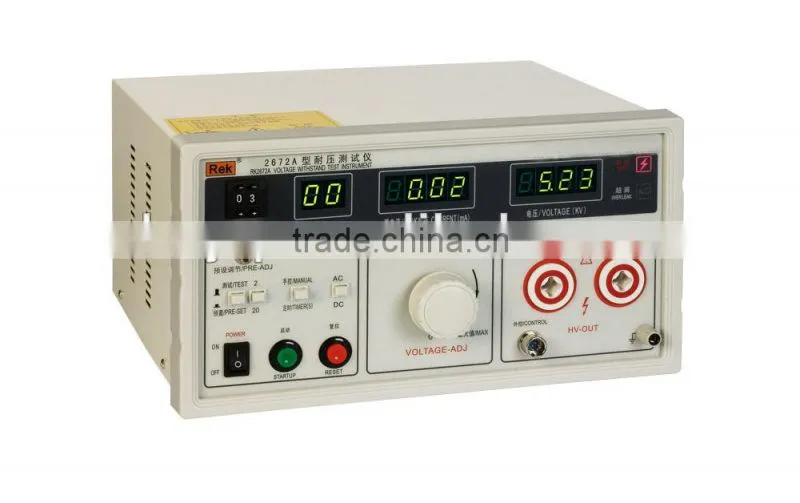

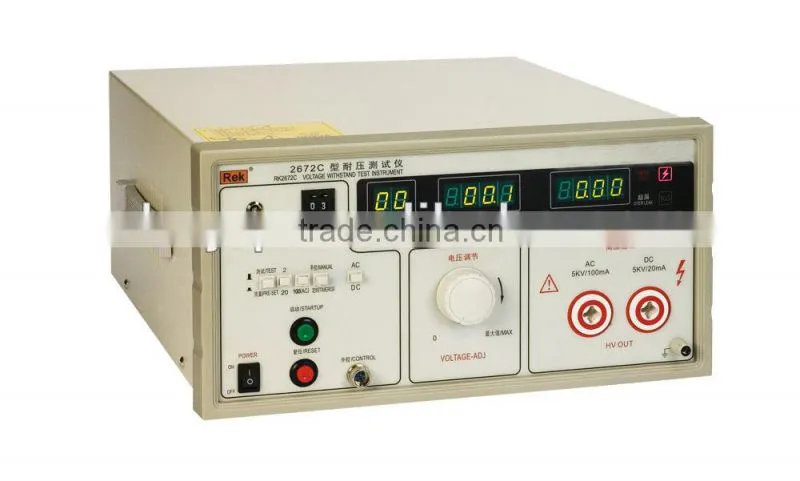

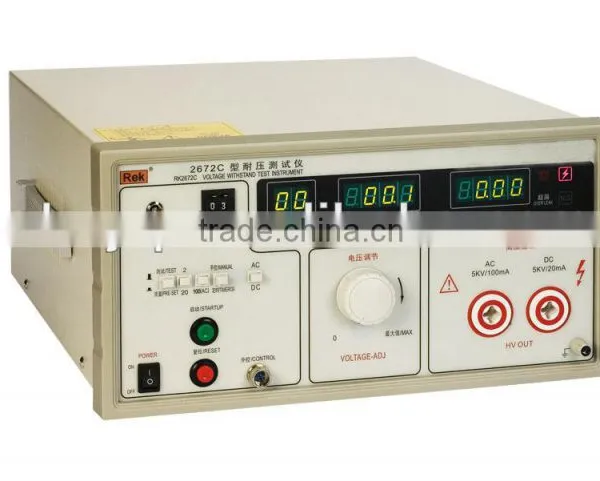

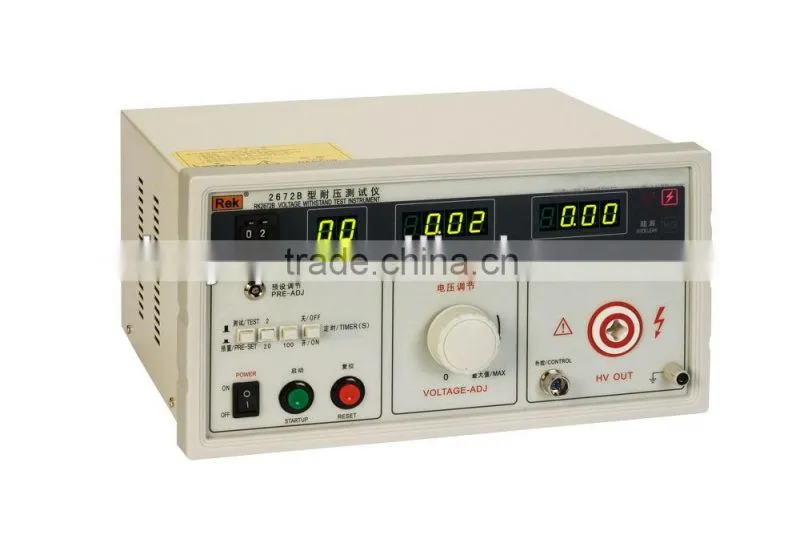

2672 series 0-5KV AC/DC Hipot Tester Voltage Withstand Tester Hipot Test Equipment With High Quality
Operation condition:
Environment Temperature: 0~40°C
Relative Humidity: ≤75%
Atmospheric Pressure: 101.25KPa
Technical Parameter:
|
2672A |
2672B |
2672C |
2672D |
|
output voltage(AC/DC) |
0~5kv/ (AC/DC) |
0~5kv/ (AC) |
0~5kv/ (AC/DC) |
0~5kv/ (AC/DC) |
|
voltage resolution |
10V |
10V |
10V |
10V |
|
| Voltage accuracy | ±5% |
±5% |
±5% |
±5% |
|
Leakage current(AC) |
0-2/20mA |
0-100mA |
0-2/20/100mA |
0-2/20/200mA |
|
Leakage current (DC) |
0-2/10mA |
|
0-2/20mA |
0-2/20mA |
|
current resolution |
0~2mA:1μA |
0~2mA:1μA |
|
0~2mA:1μA
|
|
current accuracy |
±5% |
||||
test time |
0~99s, hand control |
||||
Max output powe |
100VA |
500VA |
500VA |
1000VA |
|
| Transformer capacity |
500VA |
750VA |
750VA |
1500VA |
|
display |
LED |
||||
Power |
220V±10%,50Hz±5% |
||||
working envirment |
0°C~40°C,≤85%RH |
||||
product size |
300*270*180mm |
430*370*200mm |
|
||
weight |
9.4kg |
13.2kg |
17.2 |
32KG |
|
