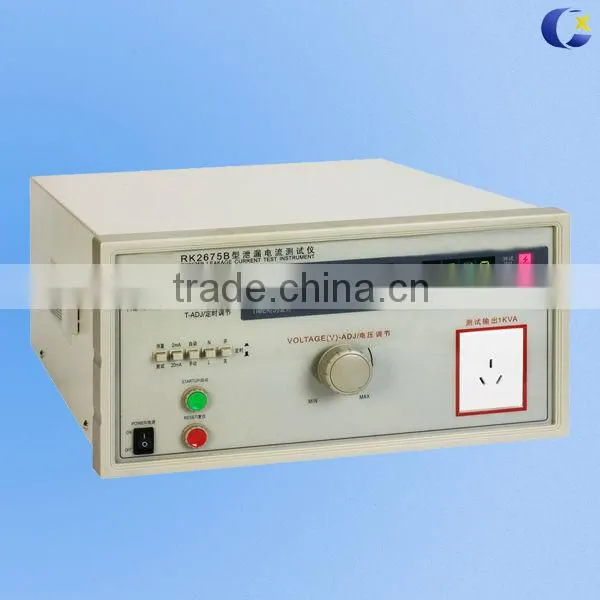

IEC60598 Ac Leakage Current Tester Can Measuring Insulation Resistance And Ground Resistance
US$ 1 - 200
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CX
Model Number:
CX-2675C
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Voltage Withstand Tester Hipot Test Equipment With High QualityNegotiableMOQ: 1 Set -
Lab Dc High Voltage Generator Ac Withstand Test SetsNegotiableMOQ: 1 Set
-
40KV 80KV Hipot Tester Ac/dc Withstanding Voltage And Insulation TesterNegotiableMOQ: 1 Set
-
AC/DC 5KV 10KV Hipot Test Equipment Hipot TesterUS$ 1,000 - 3,000MOQ: 1 Set
-
VDE0472 Insulated PVC Cable Wire High Temperature Pressure TesterUS$ 120 - 600MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
CX
Model Number
CX-2675C
Power
Electronic
Usage
Other, Electric safety test

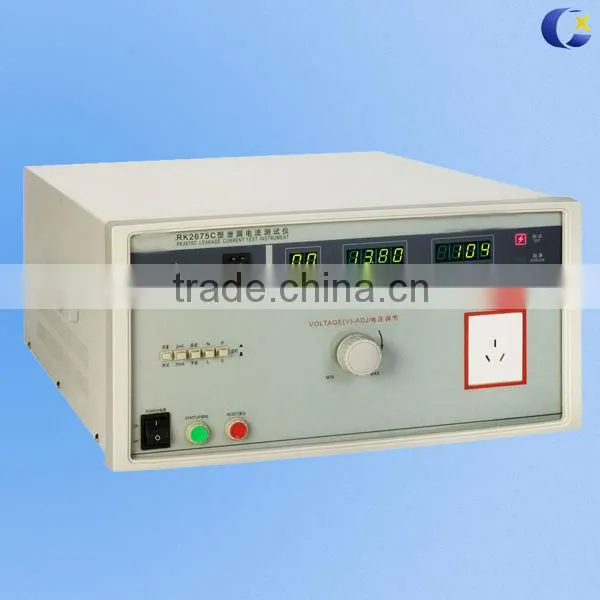

IEC60598 2KVA Leakage Current Tester Can Measuring Insulation Resistance And Ground Resistance
Main features
Original plug and play MD clip, display MD network circuit;
Original MD network circuit video, changeable, can be measured;
Inner 4 kinds of main MD slip, can equip other slips;
DC-1MHz bandwidth, Earth Leakage Current, Enclosure leakage current and applied part leakage
Can test single phase/three phase test
Intelligent judgment, voice and light alarm, large font display;
Application :
- Capacitors
- Relays
- Switches
- Connectors
- Materials
- Cables
- PC boards
Technical parameter:
| Voltage | 0~250V |
| Current | 0.01mA-20mA |
| Current Resolution | 0.01mA |
| Current Accuracy | ±3% |
| Transformer capacity | 2000VA |
| Test Time | 0~99s, manual control |
| Display | LED digital |
| Power supply | 220V±10%,50Hz±5% |
| Work environment | 0°C~40°C,≤85%RH |
| Dimension | 51*430*200mm |
| Weight | 40KG |
