Home > Instruments & Meters > Test Instrument > Test Machine > Lab Dc High Voltage Generator Ac Withstand Test Sets

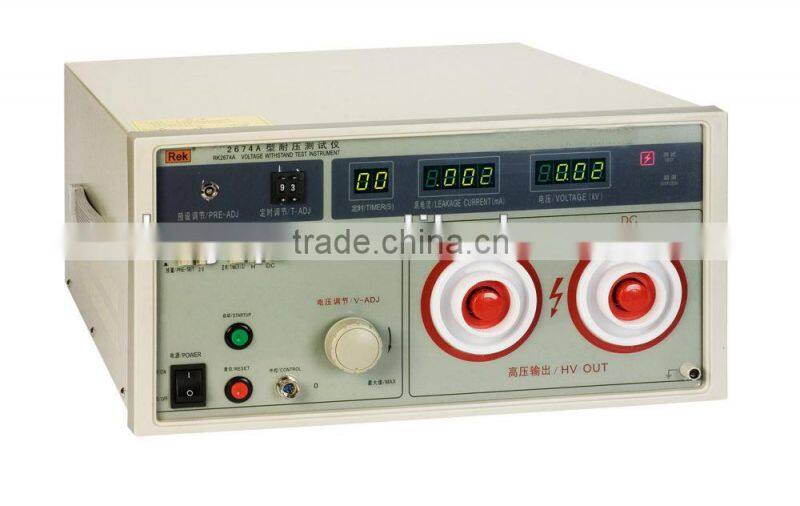

Lab Dc High Voltage Generator Ac Withstand Test Sets

Name: Lab Dc High Voltage Generator Ac Withstand Test Sets
Brand: SZCX
SKU: 110727103
Availability: InStock

Lab Dc High Voltage Generator Ac Withstand Test Sets thumbnail-1

Lab Dc High Voltage Generator Ac Withstand Test Sets photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

SZCX

Model Number:

CX-2674A

Contact Supplier Request Quote Chat Now

Shenzhen Chuangxin Instruments Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name SZCX

Model Number CX-2674A

Power Electronic

Usage Other, safety test

2674A 10kv voltage withstand test instrument

Technical Parameter:

Model	RK2672A/AN	RK2672B	RK2672C	RK2672D	2672E
Output Voltage Range	0~5kv(AC/DC)	0~5kv(AC)	0~5kv(AC/DC)	0~5kv(AC/DC)	0~5kv(AC)
Voltage Resolution	10V	10V	10V	10V	10V
Voltage Accuracy	±5%	±5%	±5%	±5%	±5%
Leakage current (AC)	0-2/20mA	0-100mA	0-2/20/100mA	0-2/20/200mA	0-2/20/200mA
Leakage current (DC)	0-2/10mA		0-2/20mA	0-2/20mA
Current Resolution	0-2mA:1μA 2-20mA:10μA	0~2mA:1μA 2~20mA:10μA 20~100mA:100μA		0~2mA:1μA 2~20mA:10μA 20~200mA:100μA	0~2mA:1μA 2~20mA:10μA 20~200mA:100μA
Current Accuracy	±5%
Measurement Time Setting	0s-99s,Continuously setting and manual
Maximum output power	100VA	500VA	500VA	1000VA	1000VA
Capacitor of Transformer	500VA	750VA	750VA	1500VA	1500VA
Display Form	LED Digital display
Power Requirements	220V±10%,50Hz±5%
Operation Environment	0°C~40°C,≤85%RH
Dimensions	320270180mm		430370200mm		430370200mm
Weight	9.4kg	13.2kg	17.2kg	32kg	32kg

Warranty policy

One Years warranty

As usual, the shipping fee are high. if return China to repair are not worth the money. So we could support technology and give you the spare parts along with the product .

Packaging

We check our products one by one before we pack and ship to make sure they are all what you ordered, to make sure the quantity and in good condition.
We usually pack our products by normal plastic bags or bubble bags and use cartons as outer packaging. We always choose the best and safe packaging material to make sure your orders won’t be damaged during delivery.

Delivery date

Usually we use traceable international Express service to ship. We ship within 3 business days after your payment was cleared. If your order is too big and our cargo cannot be ready within 7 business days, our shipping time should be longer.

We accept drop shipping and domestic pickup. If the material not enough or we have some customer queue up our products before you,

we will discuss with you the shipping date. If you want the delivery date faster than that day, please inquiry us, we will try to do it as your request.
