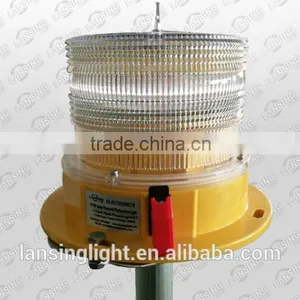

TY10A Synchronization Solar Powered Aviation Obstruction Light/aircraft Warning Light

TY10A Synchronization Solar Powered Aviation Obstruction Light/aircraft Warning Light thumbnail-1
TY10A Synchronization Solar Powered Aviation Obstruction Light/aircraft Warning Light photo-1
US$ 0.1 - 200 MOQ: 1 Piece
Key Specifications
Get Latest Price
IP Rating:
IP67
Emitting Color:
Red
Lamp Body Material:
Aluminum Alloy
Contact Supplier Request Quote Chat Now
Shanghai Lansing Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
IP Rating IP67
Emitting Color Red
Lamp Body Material Aluminum Alloy
Light Source LED
Place of Origin Shanghai, China
Brand Name LANSING
Model Number TY10A

Solar LED obstruction light
aviation obstruction light
Solar beacon
Aircraft warning light
Red flash









TY10A solar powered Aviation Obstruction light(Group Sync+Dry Contact Alarm)



TY10A based on TY10 basic features, configured synchronization and alarm signal output functions. An internal solar panel comes with TY10A, provides power supply to the light, which makes TY10A a self-contained and care-free light unit. Also, with the solar function, the light is easy to deploy to almost any condition and any emergency case. Robust body built and surface coating provides good protection against hash environments.



TY10A is equipped with an 8Ah NiMH rechargeable battery which could power the light up to 20 days when the weather is cloudy & rainy. Lithium battery is also a clean power source with no pollution. The NiMH battery is also easy to find almost anywhere.



Features

• Ultra-light LEDs, energy saving

• Dry contact type alarm out-put

• Group Synchronization by sync data shielded cable

• One unit Can be working independently as PL10

• Once fully charged, it can work for up to 200 hours

• Auto-off after being packed for 18 hours

Application

• High-rise building marking

• Telecom tower marking

• Road obstruction marking

• Navigation aid

• Port, dock entrance & walkway

• Buoy marking

• Offshore gas & oil platform







Specifications:



LIGHT OUT-PUT

SPECIFICATIONS

10 Candela

Nominal Night Range

>4 KM

LED Color Available

Red

Vertical Divergence

10 Degree

Horizontal Out-put

360 Degree

Illumination

Ultra-bright LEDs

LED Lifespan

100,000 Hours

OPERATION

Autonomy

200 Hours

On & Off Level

70/100 Lux

Flash Pattern

40FPM

POWER SUPPLY

Power Source

Solar module, mono-crystalline silicon

Solar Efficiency

13.5%

Max. Power Out-put

1.8 Watts

Battery Type

High-efficiency NiMH rechargeable battery

Battery Capacity

8 AH

Battery Replacement

Yes, replaceable

MECHANICAL STRUCTURE

Lens

Polycarbonate, UV Stabilize

Body

Polycarbonate or Die-casting Aluminum

Water-proof

IP67

Weight

1.65 KG(Polycarbonate) or 2.5KG(Die casting aluminum)

Temperature Range

-40 ~ +55

Dimensions

215.5mm H, 226mm Diameter

Warranty

5 years for light
2 years for NiMH battery

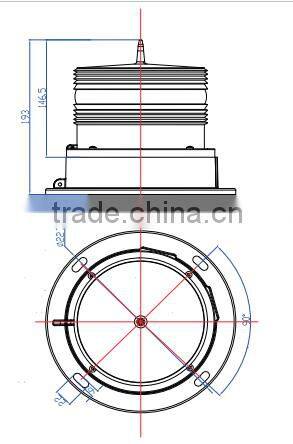

Product Dimensions:





Details Pictures:

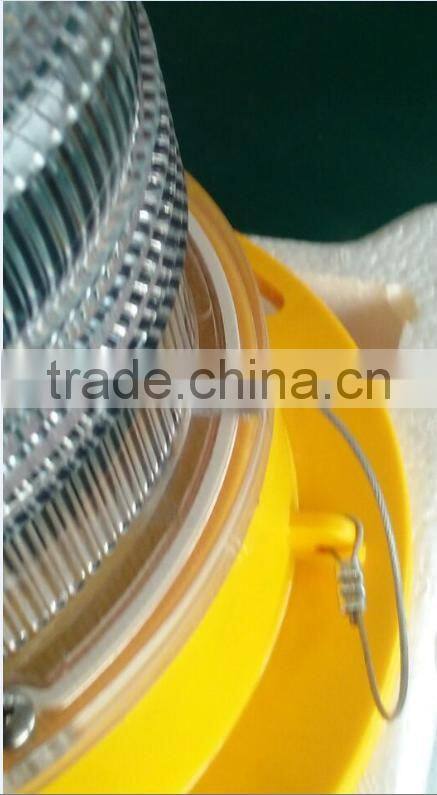

Drop-proof Steel Wire

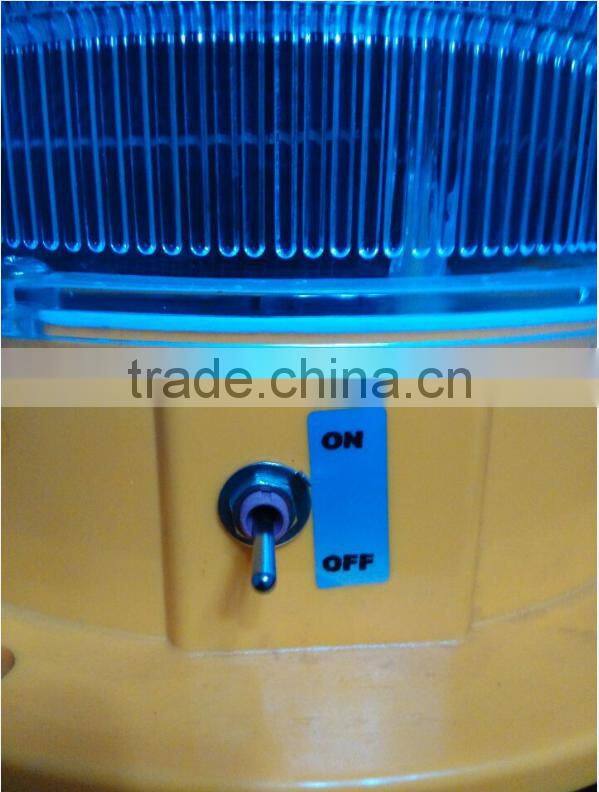

On/Off Switch

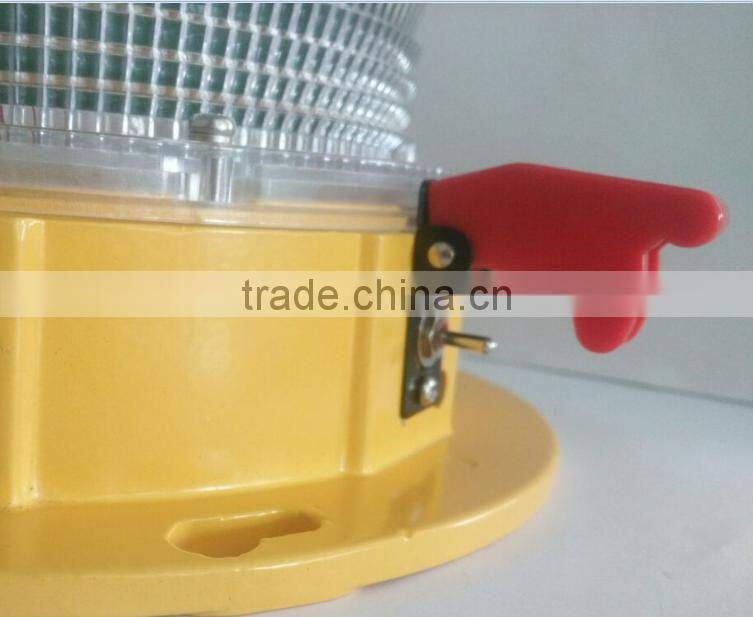

On/Off Switch Housing

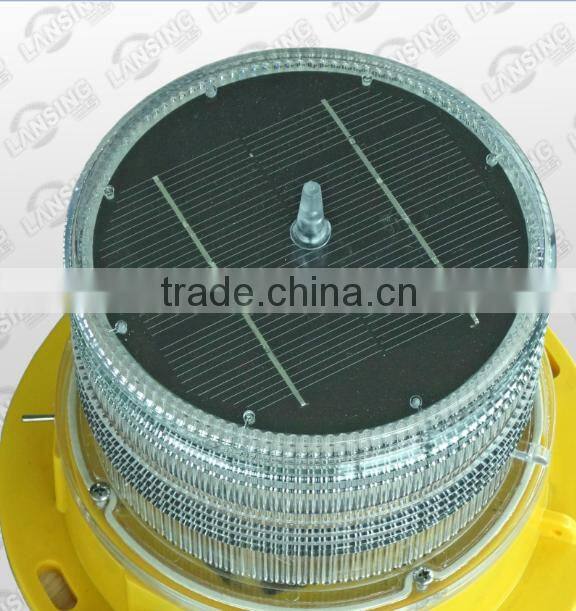

Solar Panel On the Top

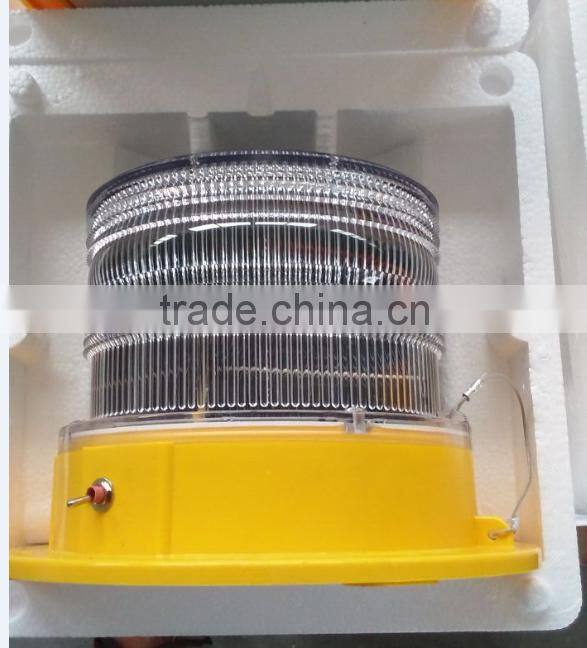

Bubble packing to ensure transportation

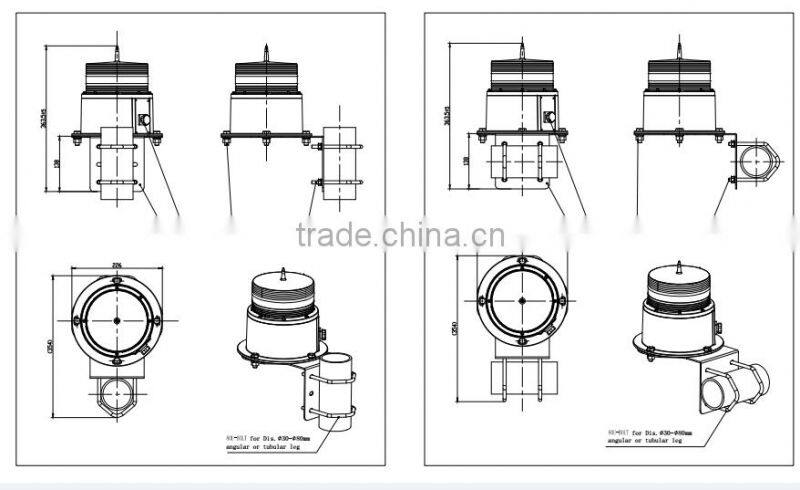

Installation:

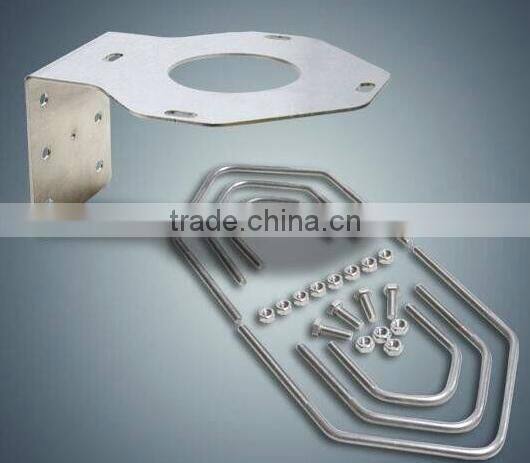

Mounting bracket:













Applications:



---Telecommunication Towers & Broadcast

---Wind Turbine

--- High Building

---Cranes

---Transmission Line Towers

---Lighthouses

---Chimneys

--- Bridges

---Offshore Oil & Gas Platform
