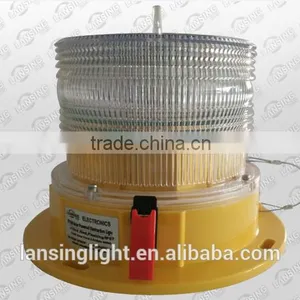

TY10S Low Intensity TYPE A LED Based Solar Powered Aviation Obstruction Light
Description
The solar panel comes with TY10S provides power supply to the light, which makes TY10S a self-contained and care-free light unit. Also, with the solar function, the light is easy to deploy to almost any condition and any emergency case. Robust body built and surface coating provides good protection against hash environments. TY10S is equipped with an 8Ah NiMH rechargeable battery which could power the light up to 20 days when the weather is cloudy & rainy. NiMH battery is also a clean power source with no pollution. The NiMH battery is also easy to find almost anywhere. TY10S is also available with an optional on/off switch for storing and protect battery from over-discharging.
Features:
--High quality optics for excellent beam spread control
--Ultra-light LEDs, energy saving
--Self-contained without outside power supply
--Maximum visibility distance 4 KM
--Once fully charged, it can work for up to 200 hours
--Auto-off after being packed for 18 hours
--All hardware of obstruction lights are made of corrosion resistant metals.
--Bird spikes for protection against droppings.
--Use of quality components and sophisticated technology reduce chances of maintenance and replacement.
--Low power consumption, which leads to huge savings on electricity bills.
--LED light source ensures long lifetime, maintenance free
--Shock and vibration resistant
--Corrosion resistant and UV stable polycarbonate housing
--Ease of mount, mount accessories available
Specifications:
LIGHT OUT-PUT | |
SPECIFICATIONS |
10 Candela |
Nominal Night Range |
>4 KM |
LED Color Available |
Red |
Vertical Divergence |
10 Degree |
Horizontal Out-put |
360 Degree |
Illumination |
Ultra-bright LEDs |
LED Lifespan |
100,000 Hours |
OPERATION | |
Autonomy |
200 Hours |
On & Off Level |
70/100 Lux |
Flash Pattern |
40FPM |
POWER SUPPLY | |
Power Source |
Solar module, mono-crystalline silicon |
Solar Efficiency |
13.5% |
Max. Power Out-put |
1.8 Watts |
Battery Type |
High-efficiency NiMH rechargeable battery |
Battery Capacity |
8 AH |
Battery Replacement |
Yes, replaceable |
MECHANICAL STRUCTURE | |
Lens |
Polycarbonate, UV Stabilize |
Body |
Polycarbonate or Die-casting Aluminum |
Water-proof |
IP67 |
Weight |
1.65 kg (Polycarbonate) or 2.5kg (Die-casting Aluminum) |
Temperature Range |
-40 ~ +55 |
Dimensions |
215.5mm H, 226mm Diameter |
Warranty |
5 years for light |

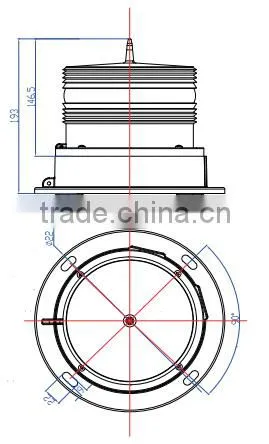

Installation Instructions:

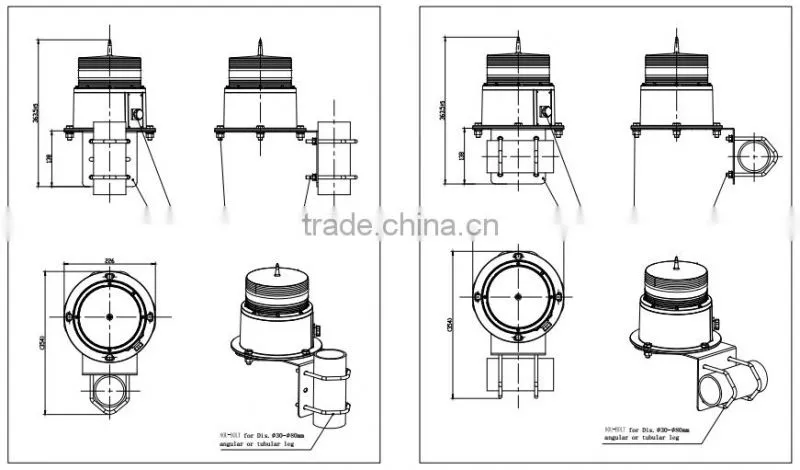

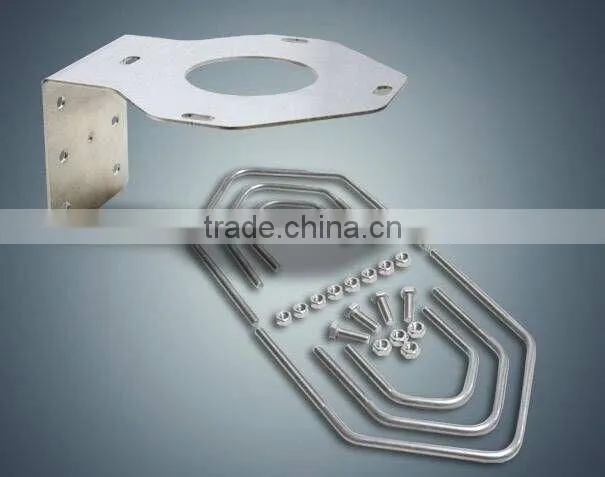

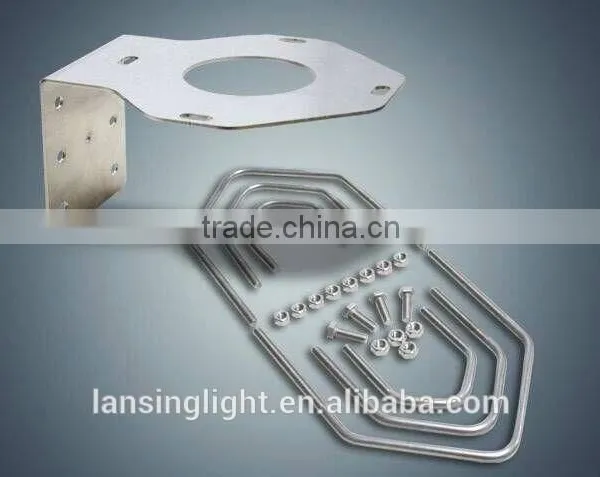

Mounting brackets:

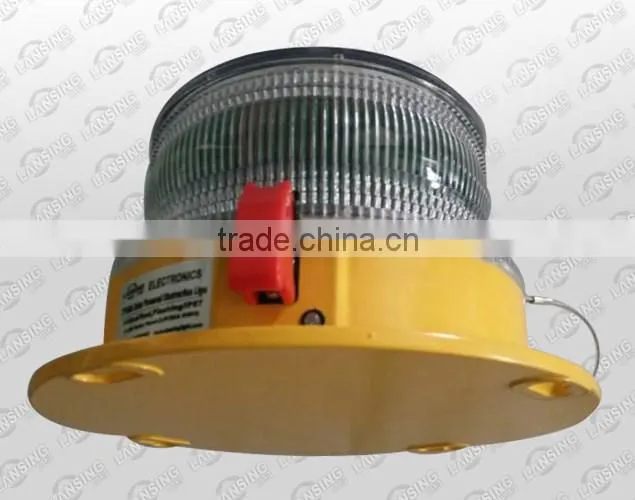

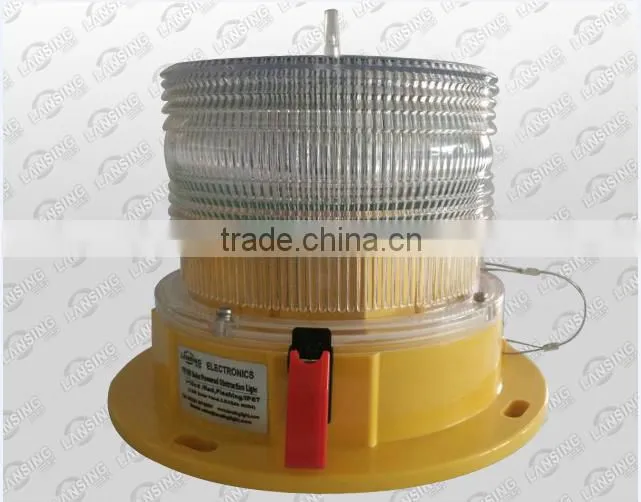

Detail Pictures:

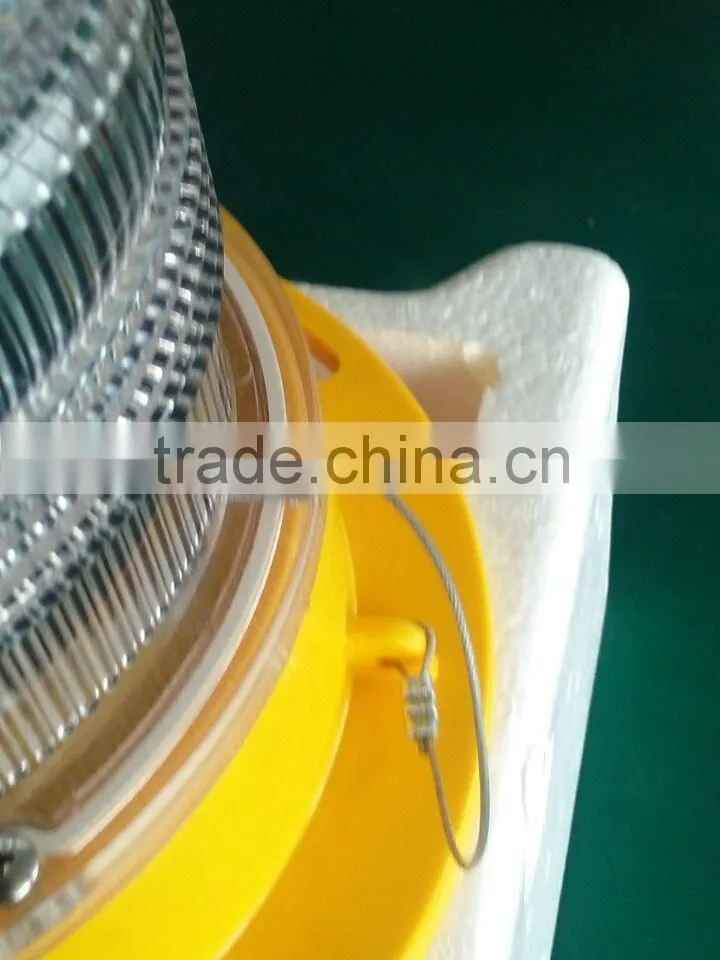

Drop-proof Steel Wire

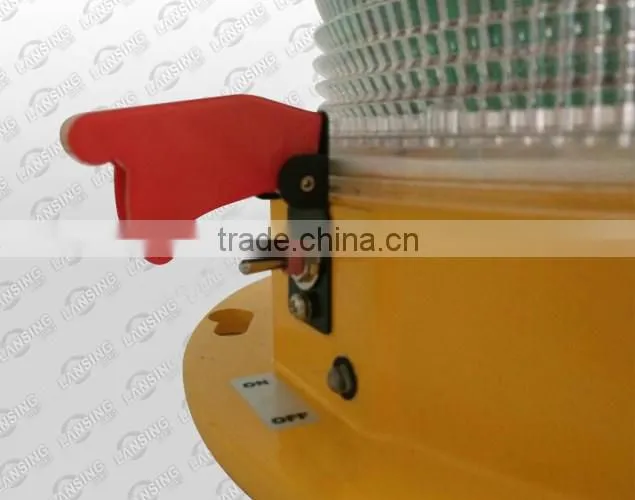

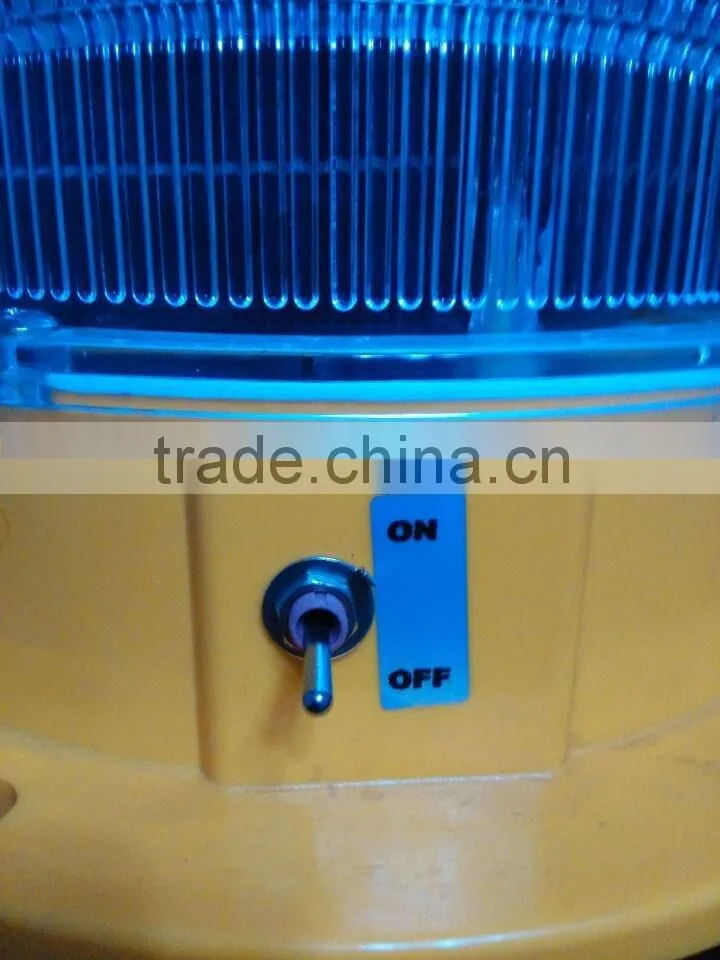

On/Off Switch
On/Off Switch Housing
Bubble packing to ensure transportation
Design, Quality and Value have made "LANSING" Lighting the partner of choice in the lighting industry over the past few years. "LANSING" products are built to last long, achieved through a high degree of craftsmanship, with lighting engineering experience.
The Entire product range is designed and fabricated by our expert team of professionals, who have strong technical and business skills. With the support of modern infrastructure and well qualified team, we are able to provide customized lighting products in the market. Satisfying the client's precise needs has been our foremost priority and we have formulated competitive price policy to meet this objective. We at "Lansing" Believes in strengthen our Team & resources and detail R&D engineering which enable us to know how to work with attention on the quality of details, customized solutions, customer care and support. Our offered products are widely used in telecommunication network, harbor,wind turbine, production factories etc industries.
There are many outstanding features that define Lansing brand: Customized solutions, reliability, Performance, Quality with competitive price. This defines our USP(Unique selling proposition).
After sales Policy:
For a period of five years from the date of shipment to Buyer, LANSING warrants all of the goods, which it has
manufactured to be free of material defects. If any such goods are found to be materially defective within the
five-years period, LANSING agrees to repair or replace the defective goods without charge to Buyer.
Full warranty is not available if one of the below situations happens:
1. Man-made damage and force majeure damage(such as lighting strike, earthquake etc)
2. Installation was not according to the instructions.
3. The used specification exceeds the normal specifications in the instruction.
4. Disassembling of the product without our permission.
5. Damaged by the inappropriate storage (storage should be moisture proof).
6. Products beyond the warranty period.
7. The products with battery should be charged periodically.
When a malfunction happens, please cooperate with our after-sales service staff with the detailed description of
the scene and malfunction. If necessary, please provide the photos of scene and malfunction product to us so
that we can offer the timely and effective service.
Lansing after-sales service staff is obligated to provide the failure analysis report to the customer
Warranty Periods
Products Category |
Warranty Period |
Light & control device |
5 Years |
Solar panel |
10 Years |
Rechargeable battery |
2 Years |
Accessory |
1 Years |
Customization Service
We believe that the more accessible our products are, the less they will cost our customers. For instance, our
customers can employ available supply voltage, colar customization, and so on.
We are providing the following services:
- Voltage customization (DC12V,DC24V,AC110V,AC220V,AC380V)
- Color customization (lamp, lampshade and housing)
- Flash frequency setup
- Special voltage customization(DC12V~DC220V,AC24V~AC3000V)
- Performance enhancement in high and low temperature
- Special customization based on your request
