Home > Lights & Lighting > Emergency Light & Indicator Light > Aviation Obstruction Light > TYI32 LED Solar Powered Aircraft Obstacle Light/aviation Warning Light

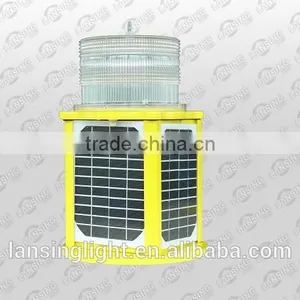

TYI32 LED Solar Powered Aircraft Obstacle Light/aviation Warning Light

Name: TYI32 LED Solar Powered Aircraft Obstacle Light/aviation Warning Light
Brand: LANSING
SKU: 110726577
Availability: InStock

TYI32 LED Solar Powered Aircraft Obstacle Light/aviation Warning Light thumbnail-1

TYI32 LED Solar Powered Aircraft Obstacle Light/aviation Warning Light photo-1

US$ 0.1 - 999 MOQ: 1 Piece

Key Specifications

Get Latest Price

Input Voltage(V):

12V(solar powered)

Lamp Power(W):

Lamp Luminous Flux(lm):

100%

Contact Supplier Request Quote Chat Now

Shanghai Lansing Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Input Voltage(V) 12V(solar powered)

Lamp Power(W) 12

Lamp Luminous Flux(lm) 100%

Lamp Luminous Efficiency(lm/w) 100%

CRI (Ra) 100%

IP Rating IP67

Emitting Color Red

Lamp Body Material Aluminum Alloy

Light Source LED

Place of Origin Shanghai, China

Brand Name LANSING

Model Number TYI32

Solar powered LED obstruction lights

Solar aircraft warning lights

Navigation lights

Aviation obstacle lights

TYI32 LED Solar Powered Aircraft Warning Light(TYPE B)

The solar panel comes with TYI32 provides power supply to the light, which makes TYI32 a self-contained and

care-free light unitAlso, with the solar function, the light is easy to deploy to almost any condition and any

emergency caseRobust body built and surface coating provides good protection against hash environments.

TYI32 is equipped with an high-efficiency rechargeable battery which could power the light up to 20 days when

the weather is cloudy & rainyThe rechargeable battery is also easy to find almost anywhere.

TYI32 is working under flashing mode, while ICAO requires that the low intensity light to be steady.

But, anyway, TYI32 could be a alternative option for some special needs.

Features:

High quality optics for excellent beam spread control
Ultra-light LEDs, energy saving
Self-contained without outside power supply
Maximum visibility distance 5KM
Once fully charged, it can work for up to 200 hours
Auto-off after being packed for 18 hours
All hardware of obstruction lights are made of corrosion resistant metals.
Bird spikes for protection against droppings.
Use of quality components and sophisticated technology reduce chances of maintenance and replacement.
Low power consumption, which leads to huge savings on electricity bills.
LED light source ensures long lifetime, maintenance free
Shock and vibration resistant
Corrosion resistant and UV stable polycarbonate housing
Ease of mount, mount accessories available

Specifications:

LIGHT OUT-PUT
SPECIFICATIONS	32.5 Candela
Nominal Night Range	>7.6 KM
LED Color Available	Red
Vertical Divergence	10 Degree
Horizontal Out-put	360 Degree
Illumination	Ultra-bright LEDs
LED Lifespan	100,000 Hours
OPERATION
Autonomy	200 Hours
On & Off Level	70/100 Lux
Flash Pattern	20-90FPM (Preprogrammed default 40FPM)
POWER SUPPLY
Power Source	Solar module, mono-crystalline silicon
Solar Efficiency	13.5%
Max. Power Out-put	12 Watts
Battery Type	High-efficiency Lead-Acid rechargeable battery
Battery Capacity	12V / 8AH
Battery Replacement	Yes, replaceable
MECHANICAL STRUCTURE
Lens	Polycarbonate, UV Stabilize
Body	Die-casting Aluminum
Water-proof	IP67
Weight	6 KG
Temperature Range	-40C ~ +55C
Dimensions	298mm H, 235mm Diameter
Warranty	5 years for light 2 years for Lead Acid battery

Installation Instructions:

Company Information

Design, Quality and Value have made "LANSING" Lighting the partner of choice in the lighting industry over the past few years. "LANSING" products are built to last long, achieved through a high degree of craftsmanship, with lighting engineering experience.

The Entire product range is designed and fabricated by our expert team of professionals, who have strong technical and business skills. With the support of modern infrastructure and well qualified team, we are able to provide customized lighting products in the market. Satisfying the client's precise needs has been our foremost priority and we have formulated competitive price policy to meet this objective. We at "Lansing" Believes in strengthen our Team & resources and detail R&D engineering which enable us to know how to work with attention on the quality of details, customized solutions, customer care and support. Our offered products are widely used in telecommunication network, harbor,wind turbine, production factories etc industries.

There are many outstanding features that define Lansing brand: Customized solutions, reliability, Performance, Quality with competitive price. This defines our USP(Unique selling proposition).

Our Services

After sales Policy:

For a period of five years from the date of shipment to Buyer, LANSING warrants all of the goods, which it has manufactured to be free of material defects. If any such goods are found to be materially defective within the five-years period, LANSING agrees to repair or replace the defective goods without charge to Buyer.

Full warranty is not available if one of the below situations happens:

1. Man-made damage and force majeure damage(such as lighting strike, earthquake etc)

2. Installation was not according to the instructions.

3. The used specification exceeds the normal specifications in the instruction.

4. Disassembling of the product without our permission.

5. Damaged by the inappropriate storage (storage should be moisture proof).

6. Products beyond the warranty period.

7. The products with battery should be charged periodically.

When a malfunction happens, please cooperate with our after-sales service staff with the detailed description of the scene and malfunction. If necessary, please provide the photos of scene and malfunction product to us so that we can offer the timely and effective service.
Lansing after-sales service staff is obligated to provide the failure analysis report to the customer

Warranty Periods

Products Category	Warranty Period
Light & control device	5 Years
Solar panel	10 Years
Rechargeable battery	2 Years
Accessory	1 Years

Customization Service

We believe that the more accessible our products are, the less they will cost our customers. For instance, our customers can employ available supply voltage, colar customization, and so on.
