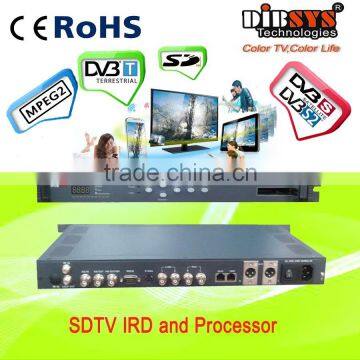

Single SDTV IP satllite receiver and decoder with CI slot_sdi/cvbs/AES EBU/XLR/YPbPr/IP/ASI out

RF input

interfaces

DVB-S/S2

frequency range: 950~2150MHz

level: -25~-65dBm

Connector: F type, 75ohm

Symbol rate: 1~45MBauds

LNB Power:13 VDC,18VDC

Demodulation Mode: QPSK,8PSK

Frequency Stepping: 500 KHz

DVB-C RF

Input Frequency Range: 47-862MHz

Symbol rate: 4-7.0MBauds

Input Level: -15-20dBmV

Demodulation Mode: 16/32/64/128/256 QAM/J.83 A/B/C(Optional)

DVB-T RF

Frequency Range: 146-862MHz

Bandwidth: 8MHz (6,7MHz Optional)

Level: -87- -20dBm

Constellations: QPSK, 16QAM, 64QAM

FEC Demodulation: 1/2,2/3,3/4,5/6,7/8

TS in/output

 interfaces

ASI

1xASI in/output

Input impedance:75 ohm

Max transport rate: ≤85Mbps

MPEG over IP

Max transport rate: ≤85Mbps

De-multiplex and re-multiplex transport stream

Encapsulation Protocols MPEG-2 TS over UDP

Addressing Multicast/unicast

Connectors 100M Base-T,RJ45

decode output interfaces

Video decode

output interfaces

2x Composite ,BNC

1x SDI,BNC

1x S-Video

Audio decode output interfaces

1x Pair R/L analog audio,BNC

1x pair R/L digital audio,XLR

Audio mode: stereo,left and right

Volume: 0-25

Re-multiplexing

Full or any program through multiplexing

PID Filter,Remapping,Passthrough

Resolution: PAL,NTSC

Conditional Access

Two PCMCIA Interface

Scrambling algorithm:DVB-CSA

Up to 8 program descrambling simultaneously

SCS interface:ISO7816

Max bitrate: ≤80Mbps

Management

100M Base-T Ethernet,RJ45,SNMP

6 keys: UP,DOWN LEFT,RIGHT,ENTER,ESC

Front-Panel KEY Borard,LED indicate light

Environment

Comply to GB13837-92 & GB8898-88 standard

Rated voltage: AC 90-260V  50/60Hz

Rated power: 20W

Working Temperature: -10~50°C

Storage Temperature: -10~75°C

Size: L: 280mm, W: 483mm, H: 44mm(1RU)

Weight: 3.2kg
