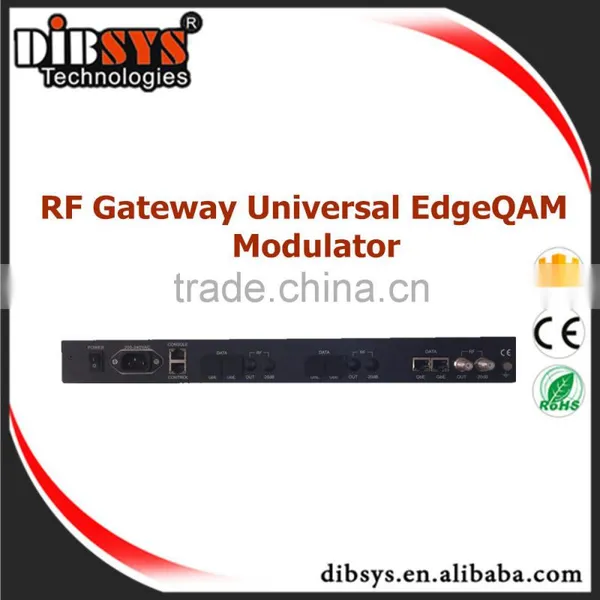

Broadcast Edge QAM Modulator

The DIBSYS’s IPQ6250 is a new generation of modular & high density Edge QAM modulator combining TS-over-UDP/RTP reception, transport stream re-multiplexing, scrambling,PSI/SI processing and 16/32/64/128/256QAM modulation in a 1U rackmount unit. It supports up to 48 QAM channels by using three external pluggable 16 QAM modules, each of QAM modules supporting up to two Gigabit copper interfaces. Moreover, the Modulator supports 1+1 redundant & hot-swappable power supplies for high reliability and stability of system. Its pay-as-you-grow modular design, flexible configurations and licensing mechanism are making the Modulator unparalleled scalability, reliability and system performance to cable operators. The adopts Web browser and SNMP management with remote monitoring and control that can greatly reduce management time and operating expenses (OPEX) of operators.

The IPQ6250, cable operators can be ensured that they will have a scalable, reliable, high performance video stream services for years into the future. It can be applied to cable DTV head-ends, sub head-ends and VOD networks.

Feature

1. 1RU modular design, supporting up to three pluggable QAM modules

2. 16 QAM output channels per module, up to 48 QAM output channels

3. Processing module with Two 1000Base-T ports

4.. Dual copper interface per QAM module,

5. Supports multiplexing, pass-through, scrambling,PSI/SI insertion,and QAM modulation

6. Up to 64 programs per QAM channel and 16 PIDs processing capability per program

7. Supports SD and HD audiovisual streams simultaneously

8. ITU-T J.83 Annex A/B/C compliant, 6MHz or 8MHz bandwidth

9. Multiplexed or scrambled TS over UDP output

10. Non-adjacent Frequency out

11. Vod Service (option)

12. Up to four DVB SimulCrypt CAS(s) and complies with DVB-CSA

13. Multiple firmware options to enable up to four scrambling channels

14. Scrambling processing up to 1024 programs

15. Supports UDP/ARP/ICMP/IGMP protocols

16. PID filtering, pass-through, PCR auto-correction

17. Excellent RF performance, MER≥42db

18. Web browser management for local and remote management, monitoring and control
