Place of Origin Zhejiang, China
Brand Name Dibsys
Model Number Caster-T312
Product Description

Caster-T312 is combined with years of developing experience in video encoders of network. It is an portable encoder comply with MPEG-4 AVC encoding and broadcast level of High Profile 5.1.Also it adopts embedded operating system, guarantee the stability of the work, support selectable SDIHDMI inputs adaptive, Provides a high Performance -to-price ratio for live, easy operate solution for IPTV.



Caster-T312 can push /pull H.264,MPEG-4 encoding video streams deliver to various servers, such as Adobe Flash Server, Wowza Server, Windows Media Server, Apples HTTP Live Streaming, and some other servers base on UDP/RTSP/RTMP/HTTP/RTP protocols.

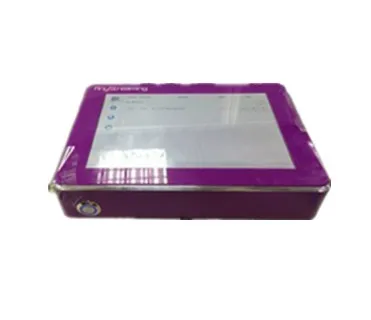

As electronic products have being intellengentize today, we also strive for a easier operation device, and give customer a wonderful user experience. The new version of Caster-T312 has colored appearance, LCD touch screen, making the small box cool enough besides its power performance.

Feature

1.Two version: version with touch screen and no screen.

2.Single channel HDMI or HD-SDI per chassis.

3.Creates simultaneous High, Medium, and Low bitrate streams.

4.Optimized for 500 Kbps for 480i/576i, 1.5 Mbps for HD 720p, 2.5 Mbps for HD 1080i and 3.5 Mbps for HD 1080p.

5.external+12Vpower source, easy to carry and suitable for bussiness trip.

6.Multiple output streams per input service to support Broadcast,VOD,IPTV and OTT,mobile/ web,Set top box applications

7.HD MPEG4/H.264 to any resolution encoding

8.Mulltiple Codec,Protocol,Bitrate,Resolution, Profile per channel.

9.GbE IP outputs – UDP,RTSP,RTMP,HTTP,HTTP Live Smooth(HLS),FTP

10.M3u8 playlist files

11.Audio support: AAC,MPEG,MP3,AMR or Dolby Digital AC-3 passthrough

12.High quality pre-processing including filtering,Deinterlacing,cross scaling,image insertion

13.Based on embedded unbuntu Linux

14.Selectable any resolution from QSIF to 1080P

15.Easy-to-Use System Management via web

16.Real time and lower delay IP network video transmission:<800ms

17.Support words and icons dynamic stacking，output with pictures stacked,and no singal automatically shimed function.

INPUTS
Baseband input
1x HDMI
1x HD-SDI
OUTPUTS
IP Output type
Two Gig Ethernet Ports
Streaming format
Mpeg-2/H.264/H.263/MPEG4 SP/MPEG4 ASP;
MPEG-1 Layer II,AAC,AC3,AMR,WM A ,MP3
TS  Over UDP/RTP/HTTP
3GP Over RTP
FLV Over HTTP/RTMP
HTTP Live streaming
Apple HLS (m3u8)
File Output
Encoding
3GPP/3GPP2/WMV/FLV/TS
File output support timing and capacitive record
Pre-processing
Image setting
Video adjustments（Brightness, contrast, Saturation, Hue）
Frame rate
from 2fps to 60fps
Aspect ratio
4:3 and 16:9, WSS control
Image insertion
LOGO insertion
Subtitle Overlay
Static or roll subtitle, up to 3 way (optional)
PID Configuration
Depending on the configuration, it forwards selected programs via IP data casting; PAT, PMT, video PID, audio PID(s) and PCR information are transmitted.
Video encoding
Bitrate mode
VBR,CBR
Resolutions
80x64 •176x120•128x96 (4:3)• 176x128•144x80•176x144 144x140•220x176•160x90 (16:9) •240x176•320x240
352x288•400x300•480x360 •720x576 • 854x480(16:9)
1280x720p • 1920x1080p
Max channels per RU
Singal Input
H.264 Out
Channels
Notes
HDMI
HD-SDI
SD in 1.5Mbps
Up to 4 streams
Those information
as reference,For details contact us
720p in 2Mbps
Up to 2 streams
1080p,720p,480p
Up to 3 streams
1280x720,960x540
640x360,480x270
Up to 4 streams
Up to multiple concurrent(1xFull HD,1xHD, 1xSD) outputs per one stream input
Video codec
H.263 Profile0, Levels 10,20,30
MPEG-4 SP, Levels 0,0b, 1,2,3
H.264 Baseline Levels 1,1b,2,3;
H.264 Main Profile/High Profile 3.0- 5.1
MPEG-2 MP@ML 4:2:0
GOP Size
I-Frame Time Interval; B-Frame Number; Reference Frame
Video Bitrate
32kbps to 6Mbps
Enhancement filter
Deinterlacing; MABFF CABAC; Noise reduction; Sharpening; Visual Optimizing
Audio encoding
Audio encoding
LC-AAC,HE-AAC and HE-AACv2 (including Parametric Stereo)
MPEG-1 Layer, AC3,MP3
Sample rate
32khz,44.1khz,48khz
Data rate
8kbps to 384kbps
Environment
Power Supply
+12 VAC
Power consumption
50W
Operation temperature
0 -50°C (32 -122°F)
Storage temperature
-40-70°C (-40-158°F)
Dimensions
147mm×208mm×45mm
Weight
1.1kg
Multiscreen SD Encoder
Caster-T300H
Up to 6,12,18,24x RCA inputs
Caster-T305H
Up to 4,8x SDI inputs
Multiscreen HD Encoder
Caster-T310
Up to 1,2,4x HDMI inputs
Caster-T315
Up to 1,2,4x HD-SDI inputs
Multiscreen Transcoder
Caster-T322
Two ports GigE IP in/ out: up to 25x SD or 10Xhd or 6xFull HD streams out
Caster-T328
Up to 200+SD,80xHD,48xFull HD streams out
