Newest Generation Only 2RU 16 Channel Hdmi Encoder H.264 Iptv Streamer

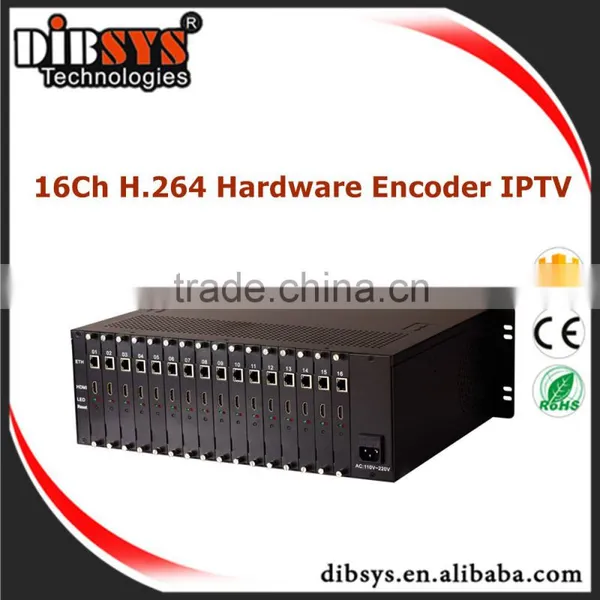

Newest Generation Only 2RU 16 Channel Hdmi Encoder H.264 Iptv Streamer photo-1
US$ 1 - 3,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
DIBSYS
Model Number:
Magicbox HD316 Pro
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name DIBSYS
Model Number Magicbox HD316 Pro
Product Description






                   Magicabox HD316 HDMI input







                    Magicabox HD316 HDMI+CVBS input






             Magicabox HD316 HD-SDI input

 Lowest cost and easy_to_use video streaming appliance designed for professional video producers who need to simultaneously hd and sd stream a live event. The encoder is a professional high and standard definition video coding product. The product has the function of supporting 1 channel HDMI video capture .generate dual stream of h.264 encoding output and the AAC audio format.
The product has high integration and reasonable price. From any HDMI input source such as a camera or switcher, generates an H.264_encoded stream compliant with RTSP/HTTP/UDP/RTMP protocols. The product can be applied to education, health care, IPTV, conference, remote education,news interview, banking, transportation and other industries.
MagicBox HD316 can deliver H.264_encoding video streams to various servers, such as Adobe Flash Server, Wowza Media Server, Windows Media Server and some other servers base on UDP/RTSP/RTMP/HTTP protocols.

Feature


1.HDMI/HDMI+CVBS/HDMI+VGA/HD-SDI/CVBS Inputs per module


2.Support dual power supply input

3.Three hardware version,1channel Compact, 4channel 1RU,16 channel 3RU

4.Two Protocol, Bitrate, Resolution, Profile per HDMI Source Inputs

5.Dual streams out, Each HDMI input source simultaneously support one channel up to 1920x1080p

6.Full HD and one channel 1280x720 HD output

7.Each channel stream can simultaneously support any one among the UDP/RTSP/HTTP protocol,including RTMP protocol output

8.Support the standard flow driven architecture of Microsoft(the WDM architecture),Support the WMENCODE of Microsoft

9.Be compatible with Windows VFW software architecture and WDM pattern

10.Support simultaneous display of one computer and multiple devices

11.H.264 High/Main/Baseline Profile, ACC audio

12.Video bit rates:16-12000kbps;

13.Audio bitrate:48-256kbps

14.HD-to-SD downscale conversion

15.Superior video quality at ultra_low bitrates, generally video bitrate advised SD about 680kbps,

16.720p about 1mbps,1080p about 3mbps for lowest bitrate

17.Support CBR and VBR mode

18.WEB Management

19.Easy-to-Use System Management

Inputs
Video inputs
HDMI
HDMI+CVBS
HD-SDI
Progressive1920x1080 @ 60/59.94/50/24/23.98 Frames per second1280x720 @ 60/59.94/50 Frames per secondInterlaced1920x1080i 29.97/25 frames per secondVideo Input Format is Auto-Detected
Audio inputs
Processes first two channels of audio embedded in HDMI/HD-SDI input signal
Unbalanced analog stereo
input via 1/8” (3.5mm) jack(option)
Outputs
IP Output type
RJ45 providing 10/1000Base-T Ethernet with Static or DHCP addressing;
wifi(option)2.4Ghz,802.11n is compatible with IEEE802.11g,IEEE802.11b,
the effective transmission distance:30m
Protocol
RTMP,RTSP/HTTP/UDP
Multi-cast (number of clients may vary from 3 to 10)
Multi-Screen
Up to 2 channels High def. and any resolution of streams simultaneously in HD Source inputs
Users Interface
Computer Based control
HTTP via standard PC or web browser using Command Center. The simple Control API and SDK is also available to programmers to create their own application
Pre-processing
Image setting
Video adjustments(Brightness, contrast, Saturation, Hue)
Frame rate
from 5fps to 30fps
Image insertion
OSD insertion
Enhancement filter
Deinterlacing; Noise reduction; Sharpening; Visual Optimizing;Filtering
H.264/MPEG-4 Part 10 (AVC) Video Encode
Bitrate mode
VBR,CBR
HDMI/HD-SDI
Resolutions
First stream
1920*1080,1280*720,1024*576,850*480,720*576
704*576,640*480,640*360,auto
Second Stream
1280*720,800*450,720*576,720*408,704*576,640*480,640*360,352*288,320*240,320*180,auto
Encode Frame Rates
Encode frame rates representing 1:1, ½ and ¼of the input frames rates are
supportedNote that the maximum encoded frame rate is 30fps when input resolution is 1920x108
Encoding Profiles
H.264 Main Profile/High Profile/Baseline Profile
Video Bitrate
16kbps to 12Mbps
Encoding Controls
2.0, 3.0, 3.1, 4.0, 4.1 Level
Support Variable bit rate
Support Average max/min data rate controls
Deblocking Filter
Key Interval
5-200
MPEG-4 AAC Audio Encoder
Audio encoding
AAC,MP3(Option)
Bit Rates
Range from 48 kbps to 256 kbps
Resample Rate
32Khz,44.1Khz
Audio Channel
L+R,L,R
Environment
Warranty
3 years with free telephone support
Power Supply
+12V(Compact size)
220V(1RU,3RU)
Power consumption
28W
Operation temperature
0 -50°C (32 -122°F)
Storage temperature
-40-70°C (-40-158°F)
Dimensions
146mm x 100mm x 45mm(Comact)
484mm x 315mm x 44mm(1RU)
484mm x 315mm x 135mm(3RU)
Weight
1.0kg(Compact);4.0kg(1RU);10Kg(3RU)
