DIBSYS ENC3084H IPTV Streamer,Eight AV to IP Multicast/unicast Udp Mpeg-2 Streaming

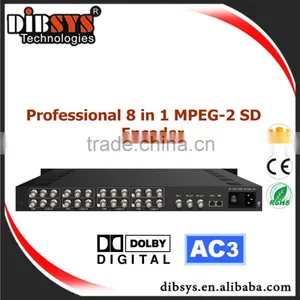

DIBSYS ENC3084H IPTV Streamer,Eight AV to IP Multicast/unicast Udp Mpeg-2 Streaming thumbnail-1
DIBSYS ENC3084H IPTV Streamer,Eight AV to IP Multicast/unicast Udp Mpeg-2 Streaming photo-1
US$ 1,000 - 2,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Dibsys
Model Number:
ENC3084H
Contact Supplier Request Quote Chat Now
Hangzhou DIBSYS Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Hangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Dibsys
Model Number ENC3084H
Product Description

ENC3084H is world’s most advanced MPEG-2 standard definition (SD) encoding platform, designed to address this ever increasing demand for more video and audio services. with high density,high reliability and advanced compress arithmetic,using MPEG-2 4:2:0 MP@ML video and MPEG-1 Layer-II audio compression. It provides one of the highest compression efficiencies in the mpeg2 broadcasting,making it possible to transmit high quality video content at the lowest possible bandwidth. And produce ASI(MPTS Mode) and IP(SPTS/MPTS) output data streams.

With its standard IP interfaces, The ENC3084 provides significant operational advantages and cost benefits by connecting encoders, DCM Series and IP QAM modular and video iptv server via a switched IP network rather than port-to-port ASI interconnects. As a result, any encoder anywhere in the network can efficiently be part of any multiplex,essentially creating a “virtual headend”

Feature

1.Up to 8 channels composite and 8 pairs R/L analog audio per chassis

2.Advanced MPEG-2 MP@ML4:2:0 video compression

3.Simultaneous outputs via SPTS/MPTS over IP

4.In iptv applications,set the SPTS/IP mode to up to eight separate IP address and ports

5.In DVB applications. set the MPTS/IP to one IP

6.Ultra-low series MPEG-2 Video encoding, generally, good SD quality is about 3mbps

7.Video bitrate adjustable range: 250K~19Mbps

8.Audio bitrate adjustable range:64-384kbps

9.Support NIT Insertion,PID pass,PID filter Table

10.Audio sample rate: 48KHz

11.1 way ASI inputs with multiplexing

12.Video aspect ratio: 4:3,16:9,2.21:1,1:1

13.MPEG-1 Layer2 , MPEG2-AAC, A52(AC3) audio encoding

14.Support PSI/SI Editor via SNMP

15.Management via External SNMP and local front panel

16.Easy-to-Use System Management

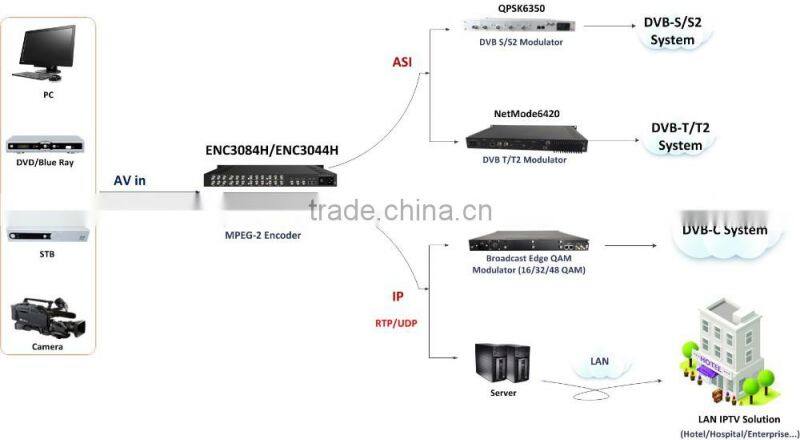

Application


Input
Video Input
Analog Composite video signal: 1.0Vp-p level
Frequency: 25Hz~5.75MHz
Video format:PAL60/SECAM/NTSC4.43/NTSC(M/J) /PAL(COMBINATION-N) /PAL(M)/PAL(D/K/B/G/H/I/N)
Quantitative: 10bits, comply to CCIR-601
Sampling frequency Rate: 27MHz
Impedance: 75Ω, unbalanced
Connector: 8 Way BNC
Audio Input
R/L channel level 2Vpp,impedance 600Ω
Connector:8 pairs of Stereo Audios, BNC
ASI Output
EN 50083-9 ASI interface standard
Data bitrate:2-60Mbps
Signal Level:200-800mVp-p
Packet Length:188 bytes
2 identical ASI, BNC, 75Ω
MPEG-TS/IP Output
Up to 1x100M base-T,Full Duplex
Bit rate: ≤80Mbps
Data Protocol:SPTS and MPTS over UDP
7x188 bytes per udp packet
Video Encoding
Comply to the International standard,main profile
ISO 11172(MPEG-1) and ISO 13818(MPEG-2)
Encode Format: MPEG-2 4:2:0MP@ML
Video screen ratio:4:3
Lightness/ Contrast/ Saturation/ HUE/Horizontal Offset
Adaptive field frame (AFF);MPEG 2 on the base of FB
Operation mode: CBR/VBR
Format: DVB standard transport stream (MPEG-TS)
GOP:IPPPP,IBPBP,IBBPB,IBBBP
Each bitrate: 1 ~ 7Mbps continuously adjustable output
Advanced Pretreatment: noise reduction, sharpening
Audio Encoding
Audio Sampling Frequency: 32/44.1/48kHz
Bit rate: 64/128/192/224/256/384Kbps
Encoding Format: MPEG I Layer 2
Quantitative:16bit
Stereo or dual, single channel
Resolution
Accordance with CCIR601 standard
PAL: 720*576/544*576/480*576/352*576/352*288@50Hz
NTSC: 720*480/544*480/480*480/352*480/352*240@60Hz
TS Re-multiplexing
Output program:1-8
1x ASI with multiplexed (option)
PAT/PMT/ SDT Automatically,NIT manual Generate
Control
100M Base T Ethernet, RJ45, SNMP
7 keys:UP,DOWN,LEFT,RIGHT,ENTER,ESC,Lock
LED indicate light and LCD in front pane
Environment
Radiation safety requirements and comply with
GB13837-92 and GB8898-88 standards
Power Supply: AC 90-250V 50/60Hz
Power consumption: 25W
Operating temperature:-10 - 50°C
Storage temperature: -10 - 75°C
Dimensions: 300(L)x483(W)x 44mm(H) (1RU)
Weight: 6kg
Order informations
ENC3184
8xCVBS in, ASI+IP out,SPTS/MPTS out
ENC3084P
8xCVBS in with ASI remultiplexed, ASI+IP out, SPTS or MPTS out
