Professional Mpeg2/mpeg4 Dvb-s2 hd Ird

Name: Professional Mpeg2/mpeg4 Dvb-s2 hd Ird
Brand: DIBSYS
SKU: 110660239
Availability: InStock

Professional Mpeg2/mpeg4 Dvb-s2 hd Ird thumbnail-1

Professional Mpeg2/mpeg4 Dvb-s2 hd Ird photo-1

US$ 1,000 - 1,600 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

DIBSYS

Model Number:

IRD1302

Contact Supplier Request Quote Chat Now

Hangzhou DIBSYS Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Hangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name DIBSYS

Model Number IRD1302

FTA(Free To Air) Yes

Type Digital

High Definition Yes

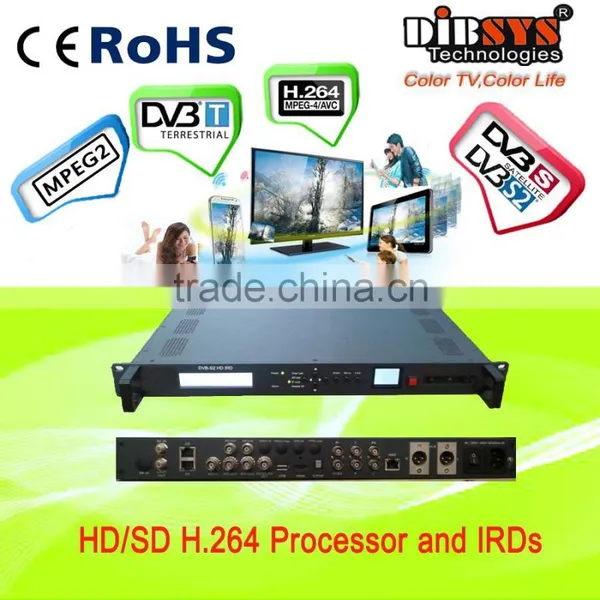

Advanced HD/SD H.264 Processor and IRDs

DIBSYS’s IRD1302 is the professional high scalable, integrated receiver decoder(IRD),Multiple inputs to IP Gate-way and MPEG-4 AVC stream processor.Featuring

broadcast-quality HD/SD MPEG-2,MPEG-4 AVC (H.264) video decoders, It is ideal for full transport-stream distribution and contribution applications, including DVB scrambling and digital turnaround processing.

RF input interfaces	DVB-S/S2	frequency range: 950~2150MHz
		level: -25~-65dBm
		Connector: F type, 75ohm
		Symbol rate: 1~45MBauds
		LNB Power:13 VDC,18VDC
		Demodulation Mode: QPSK,8PSK
		Frequency Stepping: 500 KHz
	DVB-C RF	Frequency Range: 47-862MHz
		Symbol rate: 4-7.0MBauds
		Input Level: -15-20dBmV
		Demodulation Mode: 16/32/64/128/256 QAM/J.83 A/B/C(Optional)
	DVB-T RF	Frequency Range: 146-862MHz
		Bandwidth: 8MHz (6,7MHz Optional)
		Level: -87- -20dBm
		Constellations: QPSK, 16QAM, 64QAM
		FEC Demodulation: 1/2,2/3,3/4,5/6,7/8
	ISDB-T RF	Frequency Range: 153 MHz ~862 MHz
		Bandwidth: 6/7/8MHz
	ATSC-T RF	Frequency Range: 54MHz~858MHz,
		Bandwidth: 6MHz
TS in/output interfaces	ASI	1xASI input
		impedance:75 ohm
		Max transport rate: ≤100Mbps
		4x ASI outputs, 2 group ASI separate, 2 duplicate ASI per group outputs
	MPEG over IP	Max transport rate: ≤85Mbps
		De-multiplex and re-multiplex transport stream
		Encapsulation Protocols MPEG-TS over UDP
		Addressing Multicast/unicast
		Connectors 100M Base-T,RJ45
		Encapsulation Protocols MPEG-TS over UDP DVB Mode: The IP stream will include all the programs and will be sent to the specified multicast or unicast IP Address. IPTV Mode:The input transport stream is de-muxed into individual programs,each in a different IP stream. Up to 10 IPTV addresses may be set.
decode output	Video decode output interfaces	1x HDMI,HDMI 1.3 interface
		1x HD/SD-SDI,BNC
		1x YPbPr,BNC
		1x Composite ,BNC
		1x S-Video
		Front Panel LCD video Monitoring
	Video Formats	1080p,1080i @ 50,60,59.94 720p 576p,576i,480p,480i
	Analog video outputs	PAL,NTSC,SECAM
	Decoding Format	MPEG-2 SD 4:2:0 MP @ ML MPEG-4 AVC SD MP @ L3 MPEG-4 AVC HD MP @ L4.0 / HP @ 4.0
	Video processing	Aspect Ratio Conversion 16:9,4:3,Full
		Turn on/off the subtitle
	Audio decode output interfaces	1x Pair R/L analog audio,BNC
		1x pair R/L digital audio,XLR
		Audio mode: stereo,left and right
		Volume: 0-25
		Front Panel LCD Audio Monitoring
Re-multiplexing	Full or any program through multiplexing
	PID Filter,Remapping,Passthrough Video Formats 1080P,1080i @ 29.97, 30, 25 fps 720p @ 59.94, 50, 60 fps 480i @ 29.97 fps 576i @ 25 fps 480p @ 59.94 fps
	Resolution: PAL,NTSC
Conditional Access	Two PCMCIA Interface
	Scrambling algorithm:DVB-CSA
	Up to 8 program descrambling simultaneously
	SCS interface:ISO7816
	Max bitrate: ≤80Mbps
Management	100M Base-T Ethernet,RJ45,SNMP
	7 keys: UP,DOWN LEFT,RIGHT,ENTER,ESC,LOCK
	Front-Panel KEY Borard,LED indicate light
Environment	Comply to GB13837-92 & GB8898-88 standard
	Rated voltage: AC 90-260V 50/60Hz
	Rated power: 20W
	Working Temperature: -10~50°C
	Storage Temperature: -10~75°C
	Size: L: 280mm, W: 483mm, H: 44mm(1RU)
	Weight: 3.5kg

1) High quality and low price

2) 3-year warranty

3) Perfect after-sale service and technical support

Types	Input interfaces
IRD1302S	DVB-S/S2, ASI/IP
IRD1302C	DVB-C, ASI/IP
IRD1302T	DVB-T, ASI/IP
IRD1302I	ISDB-T, ASI/IP
IRD1302A	ATSC-T, ASI/IP
