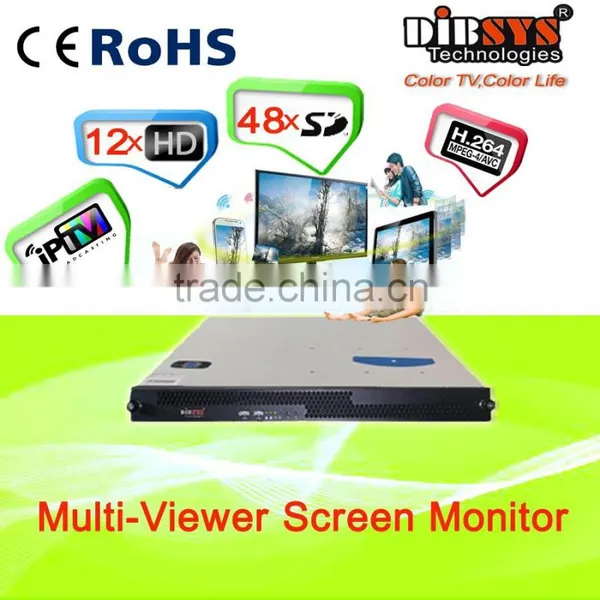

Multi-Viewer Screen Monitor
Overview
MVS2500 Multiviewer sever is DIBSYS's professional video monitor of multiviwer based on the experienced video disposing technic,
it support composite resolution display of HD and SD,support composite video encoding format monitor and display of MPEG2 and
H.264 and etc,which make it widely used in the applications of DVB,IPTV,wowza,Security and monitor.Set the IP and port of the
headend in the sever to receive the video and audio content of the programs.The display module decode the TS to it’s original datas,and assemble any of the many programs,so that it can be easy to monitored. Meanwhile,MVS2500 support dual
screen output,as it offers extreme integration with up to 48 SD or 16 HD monitoring screen connections in a single 1RU chassis,
if it is just output to one single big screen,every picture become too samll to monitor,so the dual screen output function is good for monitor and hlep save a host at the same time.
Key Features
- 48 SD or 12 HD video Multi Viewer decoding simultaneously per chassis
- Support Video encoding of MPEG2, H.264, AVS
- Support Audio encoding of MP1, MP3, AC3, AAC
- Support SPTS and MPTS channel Mode
- Display of digital and analog clock, supports display of flash and static picture
- Audio volume in Colored UV meter
- Real time audio and video monitor of :video loss, freeze frame, black burst and color bars, DataStream loss, overflow and underflow of audio volume
- Tigger of alarms: record alarm, voice alarm,SNMP alarm and database records
- OSD function. The error message will be displayed on the picture with red flash alert
- Local one-way audio output
- Dual screen output via HDMI and VGA Interface
- Remote program Multi Viewer display(option)
- Powerful and convenient MultiViewer user defined configuration, which allows you to combine pictures individually, flexible layout, fullscreen viewing of each program
- Random combination display of multi pictures, with support of self-defined template
- Recording detailed operation logs during the entire progress
- Supports centralized management of the network management system
Technical specifications
|
Interfaces |
Input |
One or Two 100/1000M TS Over IP input |
|
Output |
IP VGA DVI(optional) HDMI(optional) |
||
|
Video& audio encoding |
Video encoding format |
H.264/AVC Main Profile Level3 H.264/AVC High Profile Level4 MPEG-2 Main Profile,Main Level MPEG-2 Main Profile, High Level |
|
|
Audio Encoding format |
MPEG1 Layer II AAC AC3 MP3 |
||
Dimensions |
483mm (W) x 534mm (L) x 45mm (H) 1RU |
||
Weight |
5Kg |
||
Power Supply |
100-240 VAC |
||
Power Consumption |
Max 300W |
||
OPTION |
OPT-LMV |
Long-distance Monitor two high def. Video |
Our advantages
1) High quality and low price
2) 3-year warranty
3) Perfect after-sale service and technical support
