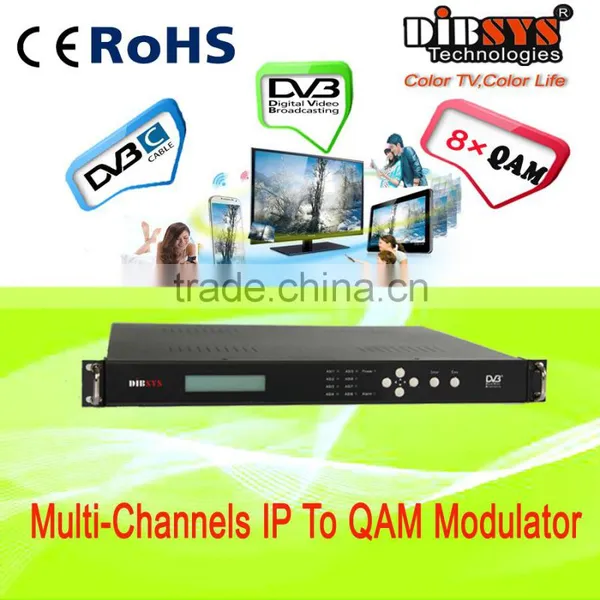

Multi-Channels IP to QAM Modulator



Eight QAM channels per RF port,GbE ip to rf converter

IPQ6200  is is designed as a highly integrated and low cost digital video gateway which 8 multiplexes broadcast content streamed per module over an IP network.and then 8 QAM Modulate up converter output directly with output 4 adjacent channel RF carrier(30M~860M)through theone RF output interface (8 carriers QAM mixer,Filter,Gainattenuation)without multiplexing,scrambling the stream process.Routes Any or All Selected Transport Streams,The output  is available on up to 24x separate IP address,Ports inputs and 24 QAM process(the 1U chassis for this modulator supports up to 3 modules).







Eight QAM channels per RF port,GbE ip to rf converter

  • Up to 3 QAM RF modulator module per chassis,each module with two quad QAM channels
  • ITU-T,J.83A/B FEC encoding standard
  • 16QAM,32QAM,64QAM,128QAM,256QAM
  • RF frequency:30-860MHz
  • 1xGbE IP(≤800Mbps) inputs per module,Processing module with three GbE ports
  • Output signal bandwidth 4.83-8.05MHz, rolling coef:0.15(ITU-T J.83A) 5.714/5.967MHz, rolling coeff:0.13/0.18 (ITU-T J.83B)
  • Output data symbol: 4.2~7Mbaud/s(8M BW) 4.2~5.260Mbaud/s(6M BW)
  • Output level:82dBuv-102dBuv ,0.5step
  • 8 sets of PID filter and remapping per Module
  • PCR correction function, can respectively check multiple PCR come from the input data accurately.
  • Real-time detection and display for the input system bitrate and effective rate.
  • Electronic mixing, tracking filter, ensure excellent RF performance
  • Temperature detection, active cooling, improve equipment performance and service
  • Support Standard and High Definition MPEG-2,H.264,AVS,MPEG-4 Codec Format
  • A fault alarm display
  • Management via WEB and local front panel
Eight QAM channels per RF port,GbE ip to rf converter

Gigabit Ethernet Input

1 independent GbE IP inputs,multicast/unicast

1 x 1000Base-T,RJ45 ports

Up to 800Mbps per port

IP Encapsulation MPEG TS over UDP/IP

up to 8 setperate TS/ IP

MPEG Format 188 Bytes per TS packet

QAM RF Output



Connector F-Type, 75 Ω

1 RF ports and 1 RF Monitor per module,

Two of Quad QAM adjacent channels per RF port

RF Output Level:82-102 dbuV(0.5dBuV step)

RF frequency range: 30 to 860 MH, 1kHz steps

QAM Constellations: 16,32, 64,128,256

Bandwidth: 6Mhz or 8 Mhz

QAM Encoding:ITU-T J.83 Annex A(DVB),Annex B

RF Atteunator Adjustment Range: 0-20dB(8 QAM channels, step 0.5dB)

Symbol rate range:4.2~7Mbaud/s(8M BW)

4.2~5.260Mbaud/s(6M BW)

RF Fine adjustments: -2.5-10.5 dB in 0.25dB steps

(8 channels output range -2.5~2.5dB;7-4 channels every reduce,

the output can increase to 1dB;

3-1 channels every reduce,

the output can increase to 1.5dB;software can automatic limited)

Output Return Loss: 12dB

Restrain Carrier:58dB

MER: ≥38dB

SNR: ≥50dB

MPEG-TS Processing

PID Filter,Remapping

Every independent IP address or port number corresponds to a QAM channel.

Management

100M Base-T Ethernet,RJ45,WEB((IE 8.0or above)

6 keys: UP, DOWN, LEFT, RIGHT, ENTER,ESC

Front-Panel LCD configuration, LED indicate light

Environment



Comply to GB13837-92 & GB8898-88 standard

Power Supply:dual power redundancy,AC 90- 250V 50/60Hz

Power consumption: 30 W

Operating temperature:-10 - 50°C

Storage temperature: -10 - 75°C

Dimensions: 400mm ( L)X 483mm(W)X 44mm(H)(1RU)

Weight: 6.5kg













































































































































Eight QAM channels per RF port,GbE ip to rf converter

Eight QAM channels per RF port,GbE ip to rf converter

1)        High quality and low price



2)        3-year warranty



3)        Perfect after-sale service and technical support







Eight QAM channels per RF port,GbE ip to rf converter

Types

QAM Model

GbE IP in

RF Port

IPQ6208

1(8 QAM channel)

1

1

IPQ6216

2(16 QAM channel)

2

2

IPQ6224

3(24QAM channel)

3

3
