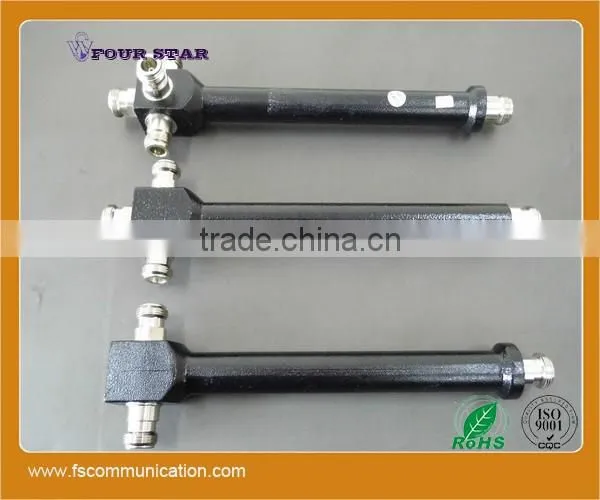

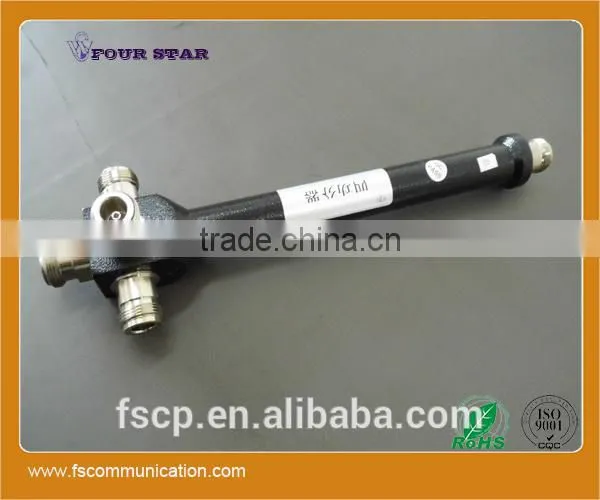

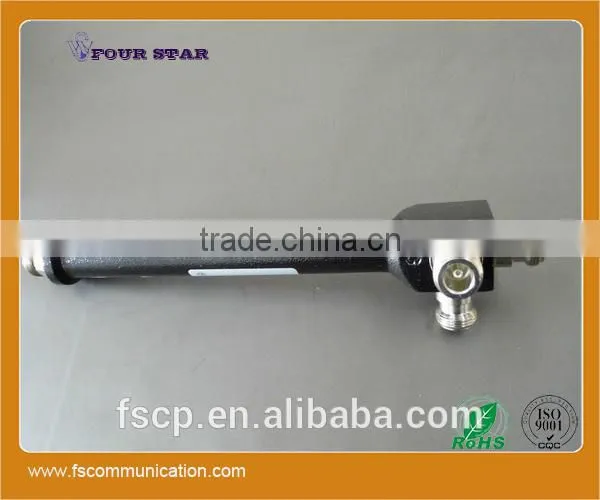

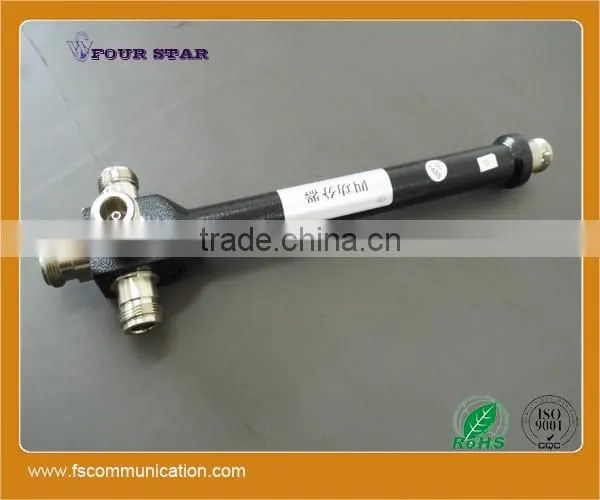

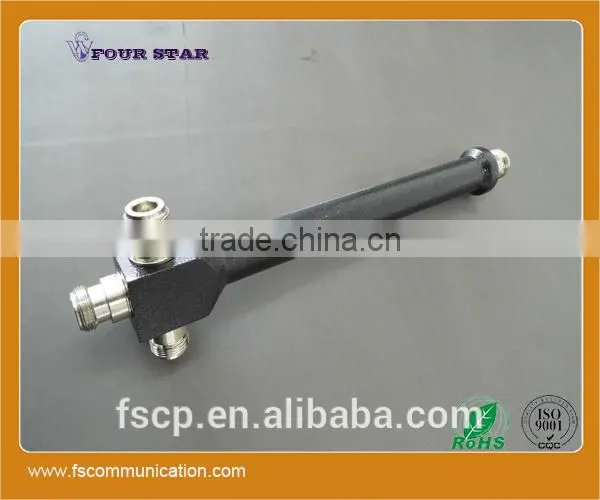

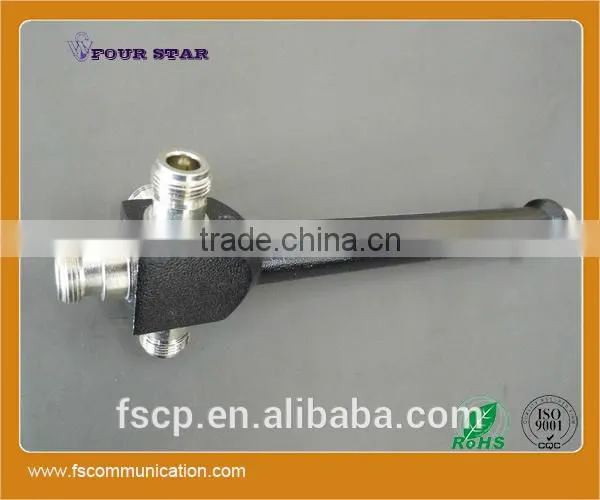

4 Way Power Splitter 800-2500MHz N Female Connector
USD $3.5 - $5.5
/ Piece
50 Pieces(Min.Order)
- 20000 Piece / Pieces per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Atco Kg Series (Radial Shape) Thermal Fuse Cutoff Link with UL cUL TUV PSE CCC Manufacturers
-
32.768kHz Series Tuning Fork Crystal Units
-
BLM18PG121SN1D Murata Electronics Ferrite Beads 120 OHM 25% Alternate Sizing Guide Below
-
FL3740015 3225 37.4MHZ Diodes Incorporated Crystals 37.400MHz 16pF 15ppm -40 to +85
-
LTV-816S-TA1-D Lite-On Transistor Output Transistor, Photovoltaic Output
-
ABLS-27.120MHZ-B4-F-T ABRACON Crystals CRYSTAL 27.120MHZ 18PF SMD
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | Four Star | Model Number: | FS-PS-0825-04NF-R |
Product Description
Product Description
| Model No. | FS-PS-0825-02NF-R | FS-CPS-0825-03NF-R | FS-CPS-0825-04NF-R |
| Frequency(MHz) | 800-2500MHz | ||
| Product Name | 800-2500MHz, 2/3/4 way, 700 watts, RF Cavity Power Splitter/Divider | ||
| Split Loss(dB) | ≤3 | ≤4.8 | ≤6 |
| VSWR | ≤1.25:1 | ||
| PIM3 | ≤-120dBc@2×43dBm | ||
| Power Capacity(W) | 200 (Maximum 700) | ||
| Impedance(ohm) | 50 | ||
| RF Connector | N-Female (Phosphor copper) | ||
| Operating Temp. (deg) | -35~+60 | ||
| Color | Black-plated | ||
| Material(Housing) | Aluminum | ||
| Relative Humidity | 5%-95% | ||
| Weight(kg) | 0.2 | 0.215 | 0.24 |
