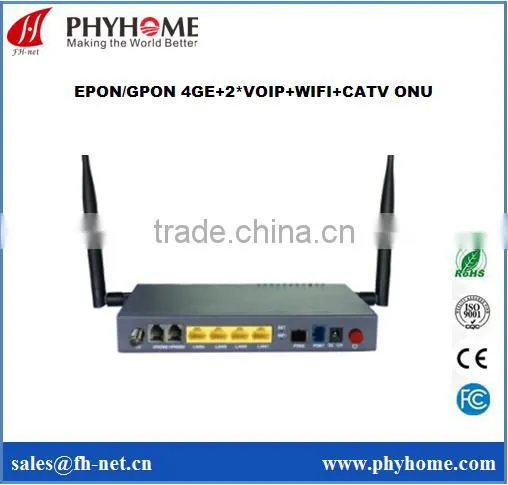

Help CenterFull Function GPON ONU FHR2422GK 4GE+2VOIP+WIFI+CATV HG8247
Related Products
-
FHR2401K GPON 4ports With WIFI ONU as ZTE F600WUS$ 1 - 50MOQ: 1 Piece -
GPON WIFI ONU / ONT Simple Wifi Compatible With Huawei ZTE Fiberhome Quality ChoiceUS$ 1 - 40MOQ: 1 Piece
-
2 Ethernet Port With Wifi GPON ONT/HGUNegotiableMOQ: 1 Unit
-
4 Gigabit Port GPON ONT/ONU With CATV RF Port Compatible Huawei MA5608T, 5680TNegotiableMOQ: 1 Unit
-
4GE+2VOIP+WIFI+CATV GPON ONT HGU Huawei OLT CompatibleNegotiableMOQ: 1 Unit
Introduction
GPON ONT/HGU is designed for FTTH and networking service providers. FHR2422GK is developed by FH-net optoeletronics based on the Gigabit GPON technology, has a high cost performance, it supports 2 layer,3 layer or more layer VoIP. It is high stability and easy to maintain, has multi-service QoS quality guarantee. And It is fully compliant with technical regulations such as IEEE802.3ah and technical requirement of EPON Equipment (V2.1 and above version) from China Telecom, China Unicom.
Characteristics
1. Main service: 4GE+2VOIP+WIFI+CATV
2. Plug and play, integrate auto detection, auto configuration and auto firmware upgrading
3. Integrate OMCI and TR-069 remote configuration and maintenance
4. Support flexible QinQ VLAN,DHCP server/relay and IGMP/ MLD multicast monitoring function
5. Support diagnostic monitoring and remote disabling of fiber optical
6. Compatible with Huawei,ZTE and Fiberhome OLT
7. Support NAT and firewall function
8. POTS integrated circuit test complies GR-909
9. WAN support networking bridge, router and bridge/router mixed mode
Specification
Technical items |
Descriptions |
Fiber port |
1 GPON interface, SC single-mode/single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps |
Wavelength |
Tx 1310nm, Rx 1490nm |
Fiber interface |
SC/PC |
RX sensitivity |
<-28dBm (1490nm) |
LAN |
4*10/100/1000Mbps adaptive ethernet ports, full/half duplex, RJ45 interface |
POTS |
2*FXS, RJ11 connector |
WLAN |
IEEE802.11b/g/n,300Mbps, a built-in antenna |
DC power |
12V 1A, external AC-DC power adapter |
Power |
≤10W |
Operation |
Working temperature: -5 - +55℃ working humidity:10 - 90%(non-condensation) |
Storage |
Storage temperature: -30℃ - +60℃ storage humidity: 10 - 90%(non-condensation) |
Dimension |
130*107*31mm(length*width*highth) |
Net weight |
≤0.2Kg |
CATV Technical Parameters
Descriptions |
Descriptions |
|
Optical Receive |
dBm |
-15 - +2 |
AGC range |
dBm |
-8 - +2 |
Fiber return loss |
dB |
>50 |
wave length |
nm |
1100 - 1600 |
Connection |
SC/APC |
|
C/N |
dB |
≥ 50 |
C/CTB |
dB |
≥ 62 |
C/CSO |
dB |
≥ 61 |
BW |
MHz |
40 - 1000 |
Output level |
dBμV |
≥ 82 |
Data Service Functions
1. Full speed 1G non-blocking switching
2. 2048 MAC address table
3. 16 VLAN
4. Support VLAN QinQ, transparent, tag, translation, trunk, etc.
5. Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc
6. Support auto polarity detection of Ethernet ports (AUTO MDIX)
7. Integrated IEEE802.1p QoS with four level priority queues
8. Support IPv4 IGMP snooping and IPv6 MLD snooping
9. Support bridging, router and bridging/router mixed mode
POTS service function
1. Support SIP voice protocol
2. Support H.248 voice protocol
3. SIP protocol: ISP provide the port number of the main SIP proxy server and terminal VOIP
4. Value range is 1-65535, system default value is 5060
5. H.248 protocol: ISP provide port number of the spare MGC server and VOIP terminal
6. Value range is 1-65535, system default value is 2944
7. Port ringing current voltage: 50±10VAC,30±10H
8. Port type POTS(VOIP)
9. Support G.711 A-Law/u-Law,G729A/B,G.723.1-5.3/6.3,G.726.etc.voice coding/compressed technology
10. Support auto switch in main interface and standby interface by the software
Wi-Fi service
1. Support Integrated 802.11b/g/n, 300Mbps, 2T2R.
2. Support 64 connections
3. Support WEP and WPA/WPA2 security protocols
Application chart
Ordering Information
Model |
Description |
FHR2422GK |
4GE+2VOIP+WIFI+CATV |
Shenzhen FH-Net Optoelectronics Co.,Ltd
Foundation: 2001 Year
Headquarters: Shenzhen
Branch Office: Beijing, Shanghai, Wuhan, Guangzhou
Pls feel free to contact :
Emily Skype :fhnet001
Or visit our website WWW.PHYHOME.COM
