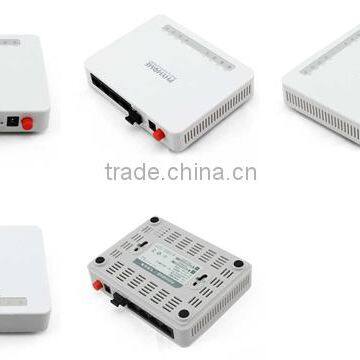

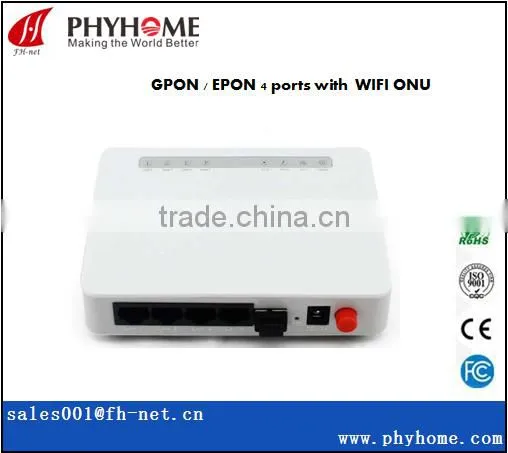

FHR2401K GPON 4ports With WIFI ONU as ZTE F600W

Introduction

GPON ONT/HGU is designed for FTTH and networking service providers.  FHR2401K is developed by FH-net optoeletronics based on the Gigabit GPON technology, has a high cost performance, it supports the 802.11n wireless networking technology(T/R). It is high stability and easy to maintain, has multi-service QoS quality guarantee. And It is fully compliant with technical regulations such as ITU-T G.984.x and technical requirement of GPON Equipment (V2.1 and above version) from China Telecom, China Unicom.

Characteristics

1. Main service: 1GE+3FE+1WIFI

2. Plug and play, integrate auto detection, auto configuration and auto firmware upgrading

3. Integrate OMCI and TR-069 remote configuration and maintenance

4. Support flexible QinQ VLAN,DHCP server/relay and IGMP/ MLD multicast monitoring function

5. Support diagnostic monitoring and remote disabling of fiber optical

6. Compatible with Huawei,ZTE and Fiberhome OLT

7. Support 802.11n WiFi(T/R)function

8. Support NAT and firewall function

9. WAN support networking bridge, router and bridge/router mixed mode

  Specification

Data Service Functions

1.  Full speed 1G non-blocking switching

2.  2048 MAC address table

3.  Support VLAN QinQ, transparent, tag, translation, trunk, etc.

4.  Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc

5.  Support auto polarity detection of Ethernet ports (AUTO MDIX)

6.  Integrated IEEE802.1p QoS with four level priority queues

7.  Support IPv4 IGMP snooping and IPv6 MLD snooping

8.  Support bridging, router and bridging/router mixed mode

Wi-Fi service

1.  Support Integrated 802.11b/g/n, 300Mbps, 2T2R.

2.  Support 64 connections

3.  Support WEP and WPA/WPA2 security protocols.

Application chart

Ordering Information
