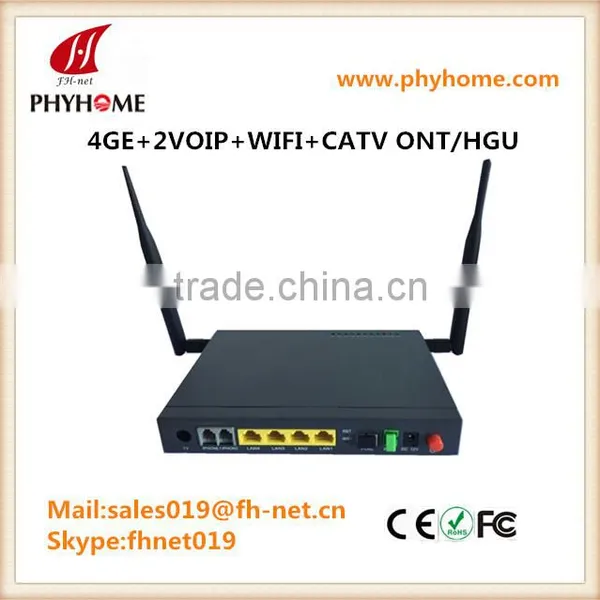

Help Center4GE+2VOIP+WIFI+CATV GPON ONT HGU Huawei OLT Compatible
Related Products
-
Gigabit GPON ONU ONT SFU Ftth RJ45 SC/PC Huawei 5680t CompatiblityNegotiableMOQ: 1 Unit -
1000Mbps GPON ONU ONT SFU Ftth RJ45 SC/PC Fiberhome Zte CompatiblityNegotiableMOQ: 1 Unit
-
Gigabit Transmitter GPON ONU ONT SFU Ftth Huawei CompatiblityNegotiableMOQ: 1 Unit
-
1GE GPON ONU ONT SFU Ftth RJ45 SC/PCNegotiableMOQ: 1 Unit
-
GPON ONU 4LAN(1GE+3FE)+1VOIP+1WIFIUS$ 0.1 - 60MOQ: 1 Piece
Introduction
GPON ONT/HGU is designed for FTTH and networking service providers. FHR2422GK is developed by FH-net optoeletronics based on the Gigabit GPON technology, has a high cost performance, it supports 2 layer,3 layer or more layer VoIP. It is high stability and easy to maintain, has multi-service QoS quality guarantee. And It is fully compliant with technical regulations such as IEEE802.3ah and technical requirement of EPON Equipment (V2.1 and above version) from China Telecom, China Unicom.
Special features
* Main service: 4GE+2VOIP+WIFI+CATV
* Integrate OMCI and TR-069 remote configuration and maintenance
* Support flexible QinQ VLAN,DHCP server/relay and IGMP/ MLD multicast monitoring function
* Support diagnostic monitoring and remote disabling of fiber optical
* Compatible with Huawei,ZTE and Fiberhome OLT
* Support NAT and firewall function
* POTS integrated circuit test complies GR-909
* WAN support networking bridge, router and bridge/router mixed mode
* Plug and play, integrate auto detection, auto configuration and auto firmware upgrading
Technical parameters
Technical items |
Descriptions |
Fiber port |
1 GPON interface, SC single-mode/single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps |
Wavelength |
Tx 1310nm, Rx 1490nm |
Fiber interface |
SC/PC |
RX sensitivity |
<-28dBm (1490nm) |
LAN |
4*10/100/1000Mbps adaptive ethernet ports, full/half duplex, RJ45 interface |
POTS |
2*FXS, RJ11 connector |
WLAN |
IEEE802.11b/g/n,300Mbps, a built-in antenna |
DC power |
12V 1A, external AC-DC power adapter |
Power |
≤10W |
Operation |
Working temperature: -5 to +55℃ working humidity:10 to 90%(non-condensation) |
Storage |
Storage temperature: -30℃ to +60℃ storage humidity: 10 to 90%(non-condensation) |
Dimension |
130*107*31mm(length*width*highth) |
Net weight |
≤0.2Kg |
CATV Technical parameters
Descriptions |
|
Descriptions |
Optical Receive |
dBm |
-15 to +2 |
AGC range |
dBm |
-8 to +2 |
Fiber return loss |
dB |
>50 |
wave length |
nm |
1100 to 1600 |
Connection |
|
SC/APC |
C/N |
dB |
≥ 50 |
C/CTB |
dB |
≥ 62 |
C/CSO |
dB |
≥ 61 |
BW |
MHz |
40 to 1000 |
Output level |
dBμV |
≥ 82 |
Data Service Function
* Full speed 1G non-blocking switching
* 2048 MAC address table
* 16 VLAN
* Support VLAN QinQ, transparent, tag, translation, trunk, etc.
* Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc
* Support auto polarity detection of Ethernet ports (AUTO MDIX)
* Integrated IEEE802.1p QoS with four level priority queues
* Support IPv4 IGMP snooping and IPv6 MLD snooping
* Support bridging, router and bridging/router mixed mode
Application chart
