2 Ethernet Port With Wifi GPON ONT/HGU

Introduction

GPON ONT/HGU is designed for FTTH and networking service providers. FHR2201K is developed by FH-net Optoelectronics based on the Gigabit GPON technology, has a high cost performance, it supports the 802.11n wireless networking technology(T/R). It is high stability and easy to maintain, has multi-service QoS quality guarantee. And It is fully compliant with technical regulations such as IEEE802.3ah and technical requirement of GPON Equipment from China Telecom, China Unicom.

Characteristics

*Main service: 1GE+1FE+1WIFI

*Plug and play, integrate auto detection, auto configuration and auto firmware upgrading

*Integrate OMCI and TR-069 remote configuration and maintenance

*Support flexible QinQ VLAN,DHCP server/relay and IGMP/ MLD multicast monitoring function

*Support diagnostic monitoring and remote disabling of fiber optical

*Compatible with Huawei,ZTE and Fiberhome OLT

*Support 802.11n WiFi(T/R)function

*Support NAT and firewall function

*Support IPv4 and IPv6 dual stack

*WAN support networking bridge, router and bridge/router mixed mode

Specification

Data Service Functions

*Full speed 1G non-blocking switching

*2048 MAC address table

*Support VLAN QinQ, transparent, tag, translation, trunk, etc.

*Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc

*Support auto polarity detection of Ethernet ports (AUTO MDIX)

*Integrated IEEE802.1p QoS with four level priority queues

*Support IPv4 IGMP snooping and IPv6 MLD snooping

*Support bridging, router and bridging/router mixed mode

Wi-Fi service

*Support Integrated 802.11b/g/n, 300Mbps

*Support 64 connections

*Support WEP and WPA/WPA2 security protocols.

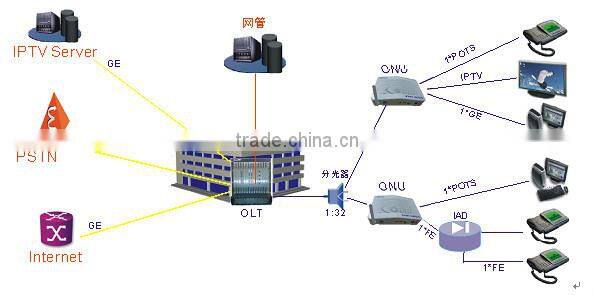

Application chart

Ordering Information
