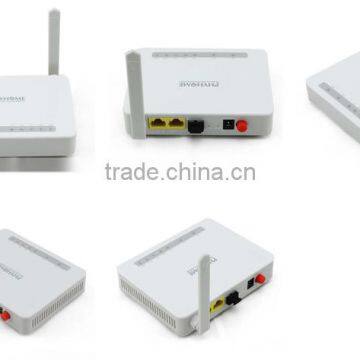

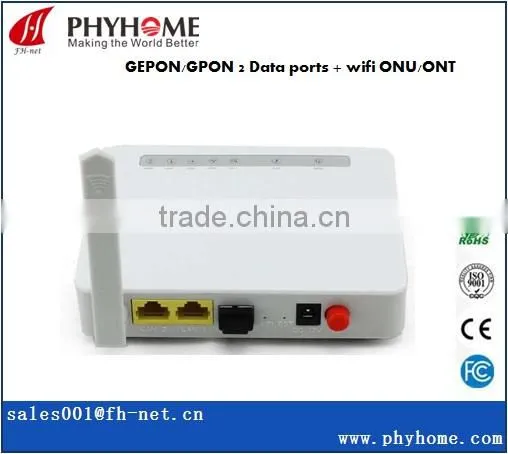

Help CenterGPON WIFI ONU / ONT Simple Wifi Compatible With Huawei ZTE Fiberhome Quality Choice
Related Products
-
2 Ethernet Port With Wifi GPON ONT/HGUNegotiableMOQ: 1 Unit -
4 Gigabit Port GPON ONT/ONU With CATV RF Port Compatible Huawei MA5608T, 5680TNegotiableMOQ: 1 Unit
-
4GE+2VOIP+WIFI+CATV GPON ONT HGU Huawei OLT CompatibleNegotiableMOQ: 1 Unit
-
Gigabit GPON ONU ONT SFU Ftth RJ45 SC/PC Huawei 5680t CompatiblityNegotiableMOQ: 1 Unit
-
1000Mbps GPON ONU ONT SFU Ftth RJ45 SC/PC Fiberhome Zte CompatiblityNegotiableMOQ: 1 Unit
GPON ONT/HGU is designed for FTTH and networking service providers. FHR2201K is developed by FH-net optoeletronics based on the Gigabit GPON technology, has a high cost performance, it supports the 802.11n wireless networking technology(T/R). It is high stability and easy to maintain, has multi-service QoS quality guarantee. And It is fully compliant with technical regulations such as ITU-T G.984.x and technical requirement of GPON Equipment (V2.1 and above version) from China Telecom, China Unicom.
Characteristics
1. Main service: 1GE+1FE+1WIFI
2. Plug and play, integrate auto detection, auto configuration and auto firmware upgrading
3. Integrate OMCI and TR-069 remote configuration and maintenance
4. Support flexible QinQ VLAN,DHCP server/relay and IGMP/ MLD multicast monitoring function
5. Support diagnostic monitoring and remote disabling of fiber optical
6. Compatible with Huawei,ZTE and Fiberhome OLT
7. Support 802.11n WiFi(T/R)function
8. Support NAT and firewall function
9. WAN support networking bridge, router and bridge/router mixed mode
Specification
Technical items |
Descriptions |
Fiber port |
1 GPON interface, SC single-mode/single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps |
Wavelength |
Tx 1310nm, Rx 1490nm |
Fiber interface |
SC/PC |
RX sensitivity |
<-28dBm (1490nm) |
WLAN |
IEEE802.11b/g/n,300Mbps, a built-in antenna |
LAN |
1*10/100/1000Mbps+1*10/100Mbp adaptive ethernet ports, full/half duplex, RJ45 interface |
DC power |
12V 1A, external AC-DC power adapter |
Button |
Reset, power, WIFI |
Power |
≤10W |
Operation |
Working temperature: -5 to +55℃ working humidity:10 to 90%(non-condensation) |
Storage |
Storage temperature: -30℃ to +60℃ storage humidity: 10 to 90%(non-condensation) |
Dimension |
130*107*31mm(length*width*highth) |
Net weight |
≤0.2Kg |
Data Service Functions
1. Full speed 1G non-blocking switching
2. 2048 MAC address table
3. Support VLAN QinQ, transparent, tag, translation, trunk, etc.
4. Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc
5. Support auto polarity detection of Ethernet ports (AUTO MDIX)
6. Integrated IEEE802.1p QoS with four level priority queues
7. Support IPv4 IGMP snooping and IPv6 MLD snooping
8. Support bridging, router and bridging/router mixed mode
Wi-Fi service
1. Support Integrated 802.11b/g/n, 300Mbps, 2T2R.
2. Support 64 connections
3. Support WEP and WPA/WPA2 security protocols.
Application chart
Ordering Information
Model |
Description |
FHR2201K |
1PON(SC),1GE+1FE(ETH), 1WIFI, |
FHR2201GK |
1PON(SC),2GE, 1WIFI, |
