Jinan 4 Axis Cnc Profile Machining Center With Spindle Power 5.5kw

FOB Price

US$ 15,000 - 50,000 / Set

1 Set(Min. Order)

Port China port
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	PENN	Model Number	PC-4000
Voltage	AC380V	Rated Power	7.5kw
Dimension(LWH)	5100x1420x1750mm	Weight	3000kg, 3000kg
Certification	C1	Warranty	one year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Jinan 4 axis Cnc profile machining center with Spindle Power 5.5kw

1) Spindle Power 5.5kW

2) 3000kg

3) Working Pressure 0.6~0.8MPa

4) Total Power 7.5kW

Product Description

1.Using advanced industrial CNC systems, friendly human-machine interface,device operation is simple

2.Suitable for aluminum alloy, aluminum and wood composite profile, profiles and other light alloys of copper, as well as the u-PVC profile processing

3.Bed made of high strength steel welded structure, completed after thermal aging treatment of machining in one clamping

4.Adopts imported high precision linear guideways, ball screws, gear racks and servo motor, ensuring smooth motion, positioning and processing of high precision

5.High-quality imported high speed spindle ensure stability, stability of rotation noise, cutting ability

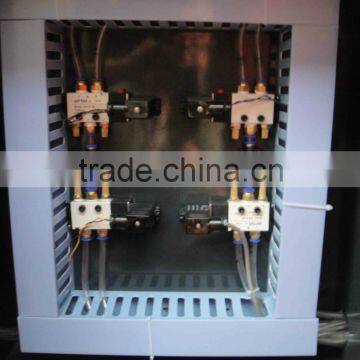

Production Photo

Technical Parameters

X-axis stroke	3000/4000/5000mm	Y-axis stroke	300mm
X-axis feed rate	0~60m/min	Y-axis feed rate	0~48m/min
X-axis positioning accuracy	±0.05mm	Y-axis positioning accuracy	±0.05mam
Z-axis stroke	200mm	Repeat location accuracy	±0.02mm
Z-axis feed rate	0~20m/min	Roughness	Ra 6.3 um
Z-axis positioning accuracy	±0.02mm	Spindle Power	5.5kW
Power Specification	380V/50Hz/60HZ	Spindle Speed	0~24000rpm
Total Power of Machine	7.5kW	Working Pressure	0.6~0.8MPa
Machine Size	5100x1420x1750mm	Weight	3000kg

Factory Photo

Machining Process

High quality China cnc router 1325 for HDPE

FAQ

1.Delivery time

Standard machine: 2 weeks after getting your deposit.

2.Logo& model no.

Machine with your logo&model no. is available

3.OEM

Available

4.Guarantee

1 year since you get the machine.(lens and mirrors 3 monthes,laser tube 8 monthes)

5.After sales service 24 hours online service in SKYPE,TRADEMANAGER,WHATSAPP type.

If machine has problems because of bad quality parts during guaranty,

we change new parts Free, Out of guaranty, we charge parts at cost price.

Whole lifetime technical support.

6.Packing

LCL: plywood case inner film with steel pipe, Silica gel dryer.

FCL: film cover, fixed in the container, Silica gel dryer.
