Introduction

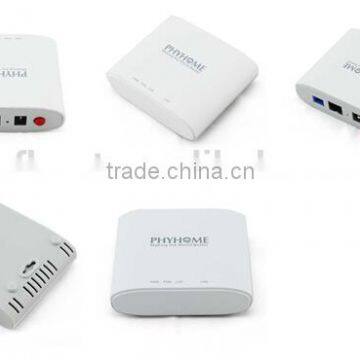

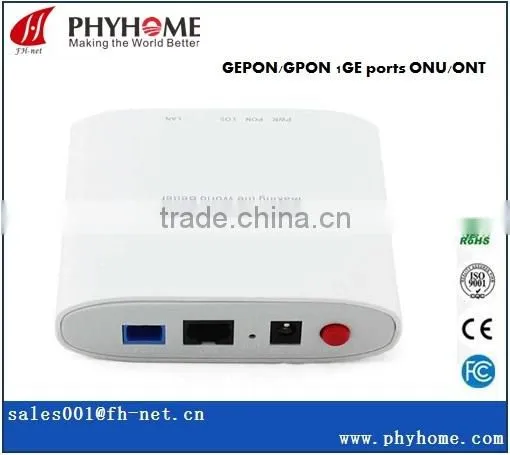

GPON SFU is designed for FTTH and networking service providers. FHR2100GKB is developed by FH-net Optoelectronics based on the Gigabit GPON technology, has a high cost performance. It is high stability and easy to maintain, has multi-service QoS quality guarantee. And It is fully compliant with technical regulations such as ITU-T G.984.x and technical requirement of GPON Equipment (V2.1 and above version) from China Telecom, China Unicom.
Characteristics
1. Main service: 1GE
2. Plug and play, integrate auto detection, auto configuration and auto firmware upgrading
3. Integrate OMCI and TR-069 remote configuration and maintenance
4. Support diagnostic monitoring and remote disabling of fiber optical
5. Compatible with Huawei, ZTE and Fiberhome OLT
Specification
Technical items |
Descriptions |
Fiber port |
1 GPON interface, SC single-mode/single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps |
Wavelength |
Tx 1310nm, Rx 1490nm |
Fiber interface |
SC/PC |
RX sensitivity |
<-28dBm (1490nm) |
WLAN |
IEEE802.11b/g/n,300Mbps, a built-in antenna |
LAN |
1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface |
Throughput |
Throughput can reach 900Mbps or more |
POTS |
1*FXS, RJ11 connector |
DC power |
12V 1A, external AC-DC power adapter |
Button |
Reset, power |
Power |
≤8W |
Operation |
Working temperature: -5 - +55℃ working humidity:10 - 90%(non-condensation) |
Storage |
Storage temperature: -30℃ - +60℃ storage humidity: 10 - 90%(non-condensation) |
Dimension |
130*105*30mm(length*width*height) |
Net weight |
≤0.2Kg |
Data Service Functions
1. Full speed 1G non-blocking switching
2. 2048 MAC address table
3. Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc
4. Support auto polarity detection of Ethernet ports (AUTO MDIX)
5. Integrated IEEE802.1p QoS with four level priority queues

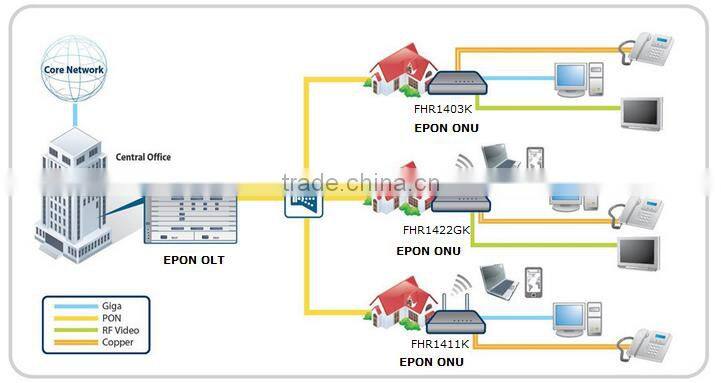

Application chart
Ordering Information
Model |
Description |
FHR2100GKB |
1 GE interface |
Q1. Can you send me more catalog and price list?
Yes, of course, you can feel free to contact any one of our sales; we will send you the products information soon.
Q2. Can we get lower price, any discount?
Yes, of course, price can’t be the problem; any price will be possible based on the quantity.
Q3. Do you have any MOQ?
There is no MOQ for samples and with our brands products, but we will have MOQ for OEM and ODM.
Q4. Can it print our LOGO or do OEM, ODM?
Yes, FH-Net can provide free OEM and ODM service based on the quantity.
Q5.Can you provide free samples?
FH-Net can payback the sample cost when get your batch order.
Q6. What about the Warranty?
The Warranty for our XPON series and optical transceiver products is 12 months, for Industrial products is 36 months.
Q7. How about the price and payment terms?
Price terms: FOB Shenzhen.
Payment terms: T/T, PayPal
Q8. How about your delivery time?
For the samples, can be delivery within 5 working days.
For Batch order, the delivery time is 7-15 working days.
Q9. How can we get support when have any technical problem?
We have three methods: Skype online supports; Remote supporting and training; On-site technical guidance.
Q10. We are new in this field, can you support us from the solution to products?
Yes, we’d like to support customer grow up.
We want every FH-Net customer could be stronger and let the customer benefit maximization
