Specifications
Phocos CML05/08/10/15/20 solar charge controllerDC12/24V auto recognition
temperature compensation
IP22
3years warranty

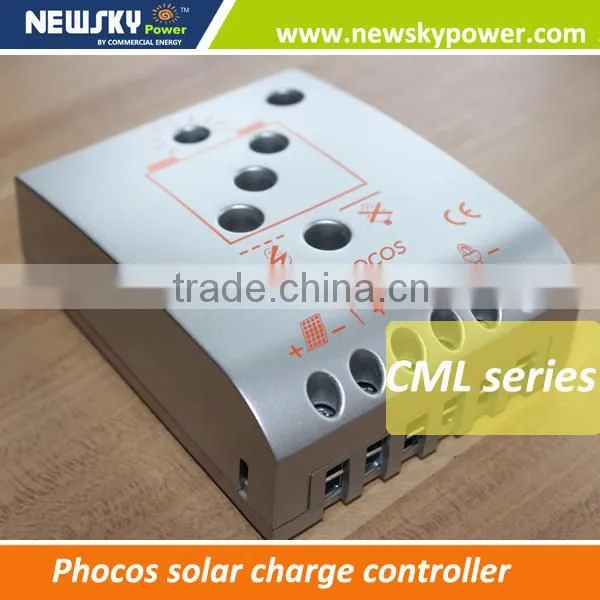

Phocos CML05/08/10/15/20 solar charge controller for small solar power system
• Battery State-of-Charge display with 3 LEDs
• Acousticload disconnect pre-warning
• PWM-regulation(series type)
• Boost,Equalizeand Float charging, also for VRLA
• Automatic12/24 V detection
• Integratedtemperature compensation
• Largeterminals(up to 16 mm2 wire size)
• SOC and voltage controlled LVD
• Fully electronically protected
TheCML seriesis a sophisticated solar charge controller family for low cost applications. The electronic circuit is equipped with a microcontroller that provides high- efficiency charging technology together with a number of outstanding status display, warning and safety functions. The temperature-compensated three-stage PWM charging method (boost-equalization-float) is now adjustable to sealedand vented lead-acid batteries. The new version also allows an either SOC or voltage controlled low voltage disconnect function. The battery status is clearlyindicatedby three LEDs. As the first controlleron the market in this price range it comes with an acoustic low voltage load disconnect pre- warning feature.
Type |
CML 05 |
CML 08 |
CML 10 |
CML 15 |
CML 20 |
System voltage |
12/24 V auto recognition |
||||
Max. charge/load current |
5 A |
8 A |
10 A |
15 A |
20 A |
Floatcharge |
13.7/27.4 V (25 °C) |
||||
Boostcharge |
14.4 /28.8 V (25 °C), 2 Std. activation: battery voltage < 12.3/24.6 V |
||||
Equalization |
14.8/29.6 V (25 °C), 2 Std. activation: battery voltage < 12.1/24.2 V |
||||
Deep discharge protection: State of charge dependent Voltage dependent Reconnect level |
11.4 – 11.9 V / 22.8 – 23.8 V 11.0/22.0 V 12.8/25.6 V |
||||
Overvoltage protection |
15.5/31.0 V |
||||
Undervoltage protection |
10.5/21.0 V |
||||
|
Max. panel voltage (Overvoltageprotection by varistor) |
30 V in 12 V system 50 V in 24 V system |
||||
|
Temperaturecompensation (Charge voltage) |
−25 mV/K at 12V −50 mV/K at 24V |
||||
Max. self consumption |
< 4 mA |
||||
Grounding |
positive grounding possible |
||||
Ambienttemperature |
−40 to +50 °C |
||||
Max. height |
4,000 m above sea level |
||||
Batterytype |
lead acid (GEL, AGM, flooded) |
||||
Wire cross section |
< 16 mm2 |
||||
Weight |
160 g |
||||
Dimensions (W x H x D) |
80 x 100 x 32 mm |
||||
Type of protection |
IP22 |
||||
