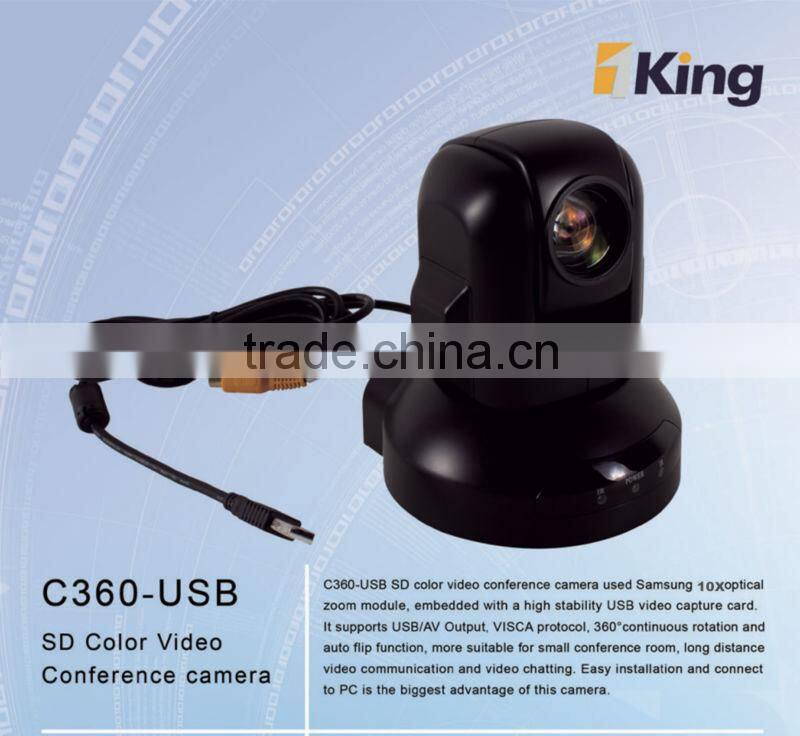

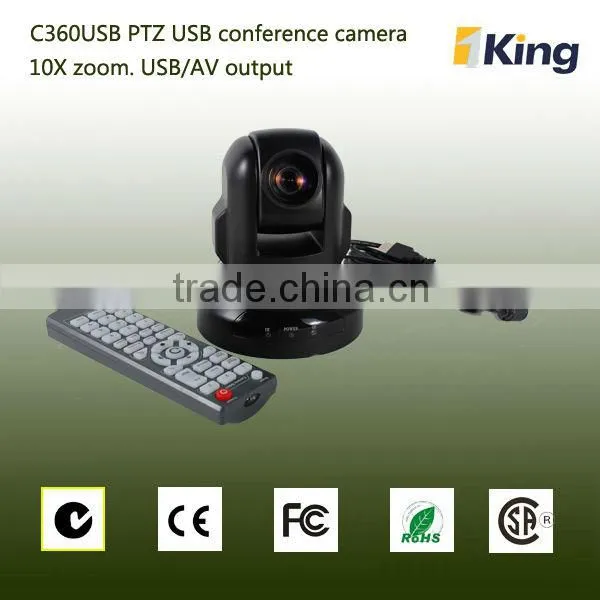

PTZ Conference Camera USB 10x Optical Zoom video confrenecing

Model

C-360-USB


Sensor

CCD

1/4” SONY CCD

Minimum Scene Illumination

0.01 Lux

White Balance

AUTO/Manual

Gain Control

Auto

Back-light Compensation

On/Off

Electronic shutter

1/50-1/10,000s

Horizontal resolution

650 TVL

S/N Ratio

> 50dB

Lens

Focus

AUTO

Iris

AUTO/Manual

Zoom

10 Optical Zoom

f=3.8-38 mm,F=1.8

Video Output

VIDEO VBS: 1.0Vpp at 75ohm;

USB interface

Communication

EIA/RS-422

EIA/RS-232(Bidirectional)

Baud Rate

4800/9600 bps

Patrol tours

4

Pattern tours

4

Preset

64

Privacy Mask Zone

4

Power On Active

Auto pan scan or Patrol(Programmable)

Speed Matching Function

Support

OSD Menu

Support

Image Auto Flip

Support

Pan Speed

0-280 degrees/s

Tilt Speed

0-100 degrees/s

Pan rotation angle

360 degrees continuously

Tilt rotation angle

240 degrees

Auto Pan Scan

Support

Boundary Scan

0-359 degrees(programmable)

Remoter Control

RF Wireless remote control P/T/Z (10M)

Power

DC 12V+-10%;1.2A

Temperature and humidity

0^o-60^o C,0-95% RH(non-condensation)
