Specifications
usb interface digital pc cameraa) 12 optical x 16 digital
b) S-Video,VISCA Protocol RS-485/422
c) Wall/ceilling/tripod
We are proffessional manufacturer of Color Video Conference Camera----
560 TVL Video Conference Camera 10x optical usb interface digital pc camera
usb interface digital pc camera
Specification sheet
Model no.: C-360-USB
12 optical x 16 digital zoom, 560TVL

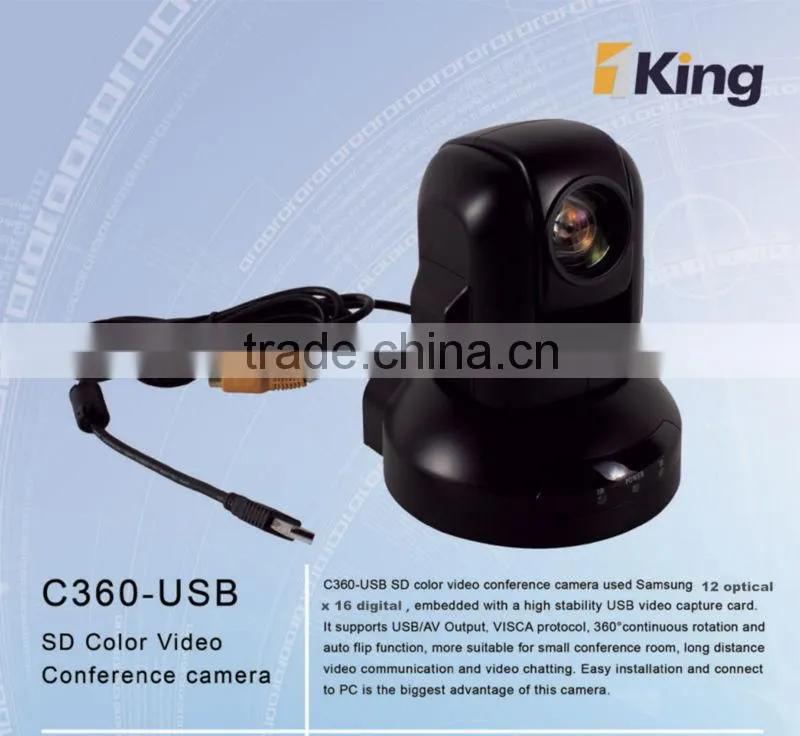

C-360-USB Color Video PTZ Camera which adopted 12 optical x 16 digital zoom with high performance 560TVL Quality, it equipped with USB video card and provided USB, AV video output both, ideally suited for Web video conferencing system, remote education system etc.
usb interface digital pc camera Features:
- 12 Optical x 16 Digital 560TVL
- Built in USB Video Card- CD Driver in the package-
- USB/AV Video output- Pan >0~280°/s Tilt >0~100°/s
- 360° continuously Pan rotation
- Provided wall & ceiling mounting

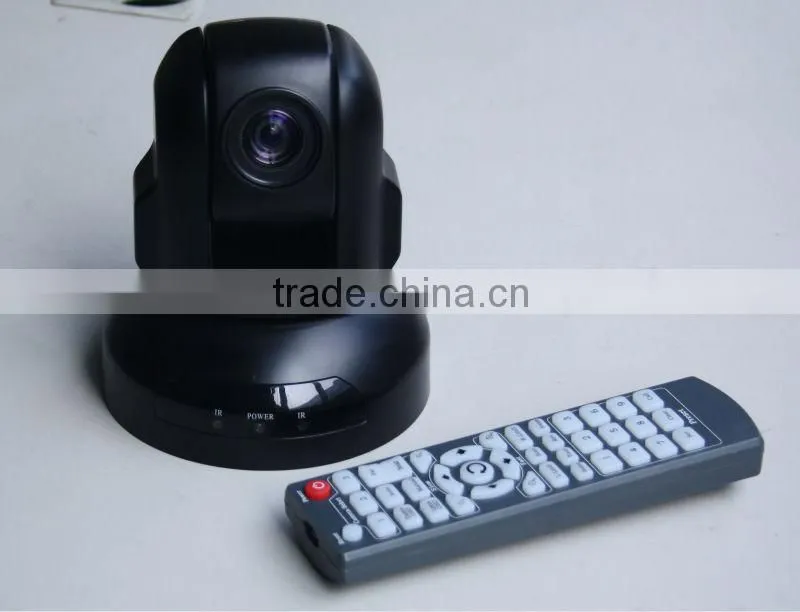

- IR Remote controller
- Support S-Video RS-232 Visca Protocol

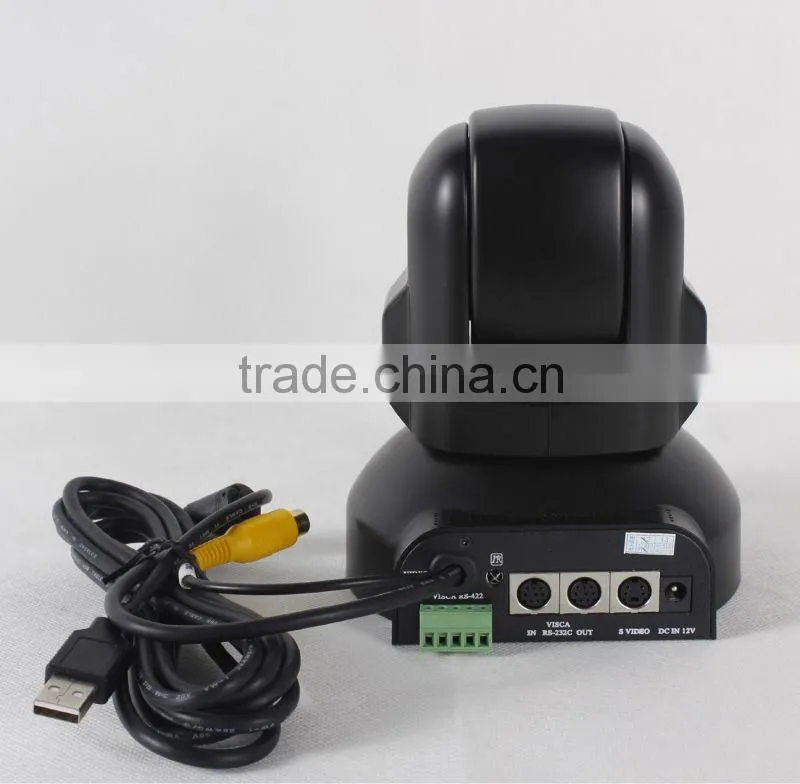

usb interface digital pc camera Images:
Specification Sheet:
Model |
C-360-USB |
|
|
Image Sensor |
CCD |
1/4” Interline Transfer CCD |
Minimum Scene Illumination |
0.2Lux at F1.6 |
|
White Balance |
AUTO/Manual |
|
Gain Control |
Auto |
|
Back-light Compensation |
On/Off |
|
Electronic shutter |
1/50-1/120,000S |
|
Horizontal resolution |
560 TVL |
|
S/N Ratio |
> 50dB |
|
Lens |
Focus |
AUTO |
Iris |
AUTO/Manual |
|
Zoom |
12 Optical X 16 Digital |
|
f=3.9-46 mm,F1.67-1.88 | ||
Video Output |
VIDEO VBS: 1.0Vpp at 75ohm; |
|
USB interface | ||
Communication |
EIA/RS-422 |
|
EIA/RS-232(Bidirectional) | ||
Baud Rate |
4800/9600 bps |
|
Patrol tours |
4 |
|
Pattern tours |
4 |
|
Preset |
64 |
|
Privacy Mask Zone |
4 |
|
Power On Active |
Auto pan scan or Patrol(Programmable) |
|
Speed Matching Function |
Support |
|
OSD Menu |
Support |
|
Image Auto Flip |
Support |
|
Pan Speed |
0-280 degrees/s |
|
Tilt Speed |
0-100 degrees/s |
|
Pan rotation angle |
360 degrees continuously |
|
Tilt rotation angle |
240 degrees |
|
Auto Pan Scan |
Support |
|
Boundary Scan |
0-359 degrees(programmable) |
|
Remoter Control |
RF Wireless remote control P/T/Z (10M) |
|
Power |
DC 12V+-10%;1.2A |
|
Temperature and humidity |
0o-60o C,0-95% RH(non-condensation) |
|
