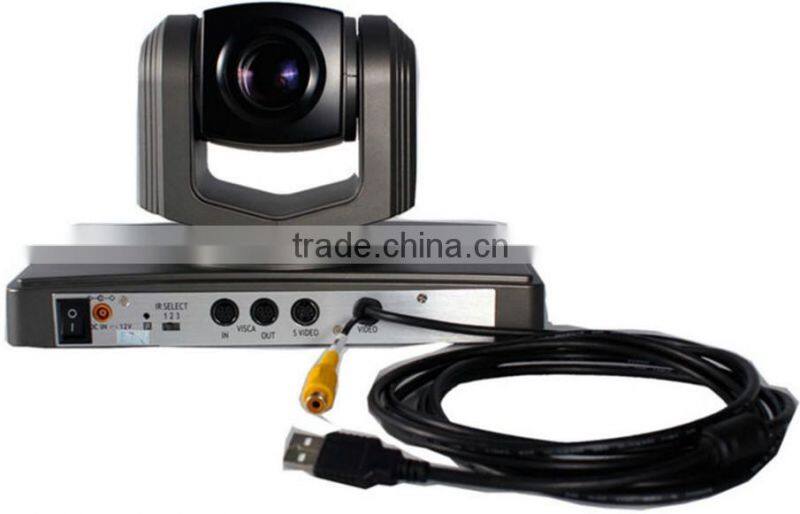

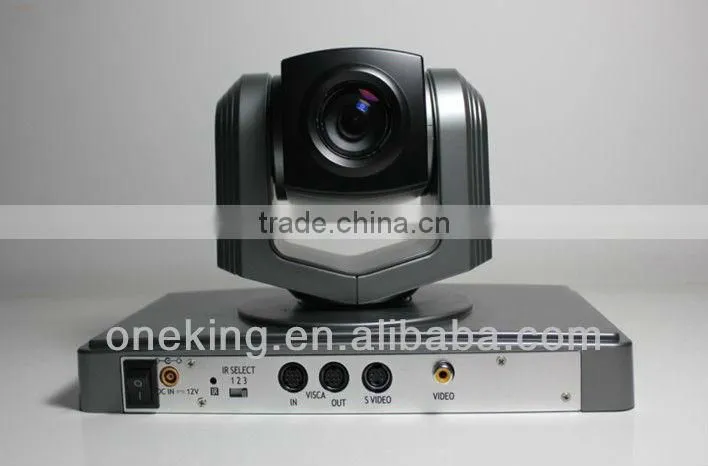

18x Optical Zoom 550TVL/650TVL Auto Tracking Video Conference Camera USB
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Video Conference System, Other, Video Conference System, Auto Tracking Video Conference Camera USB
Function:
Other
Simultaneous Interpretation:
No
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SD Conference Camera 550TVL/650TVL 18x Optical Zoom Video Conferencing SolutionNegotiableMOQ: 1 Piece -
560TVL Hot Selling 12 Optical x 16 Digital Conference Room Camera UsbNegotiableMOQ: 1 Piece
-
Low Price SD 10X Optical Zoom 650TVL Business Video ConferencingNegotiableMOQ: 1 Piece
-
Smallest Ptz Ccd Module CameraUS$ 599.00 - 599.00MOQ: 1 Set
-
New Technology Installation Digital Ccd CameraUS$ 599.00 - 599.00MOQ: 1 Set
Type
Video Conference System, Other, Video Conference System, Auto Tracking Video Conference Camera USB
Function
Other
Simultaneous Interpretation
No
Place of Origin
Guangdong, China
Brand Name
Oneking/OEM
Model Number
C368-USB
Specifications
Auto Tracking Video Conference Camera USB1) SN18x/CN 18x Optical zoom
2) S-Video, USB, SD:VBS
3) VISCA/PELCO-D
4) Wall/Ceil
We are professional manufacturer of Color Video Conference Camera------
18x optical zoom 550TVL/650TVL Auto Tracking Video Conference Camera USB
Auto Tracking Video Conference Camera USB
HD Color Video PTZ Caemra

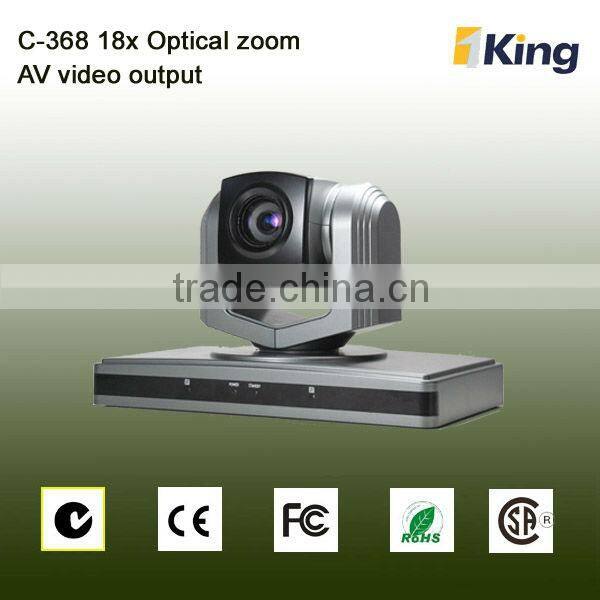

Model No: C368

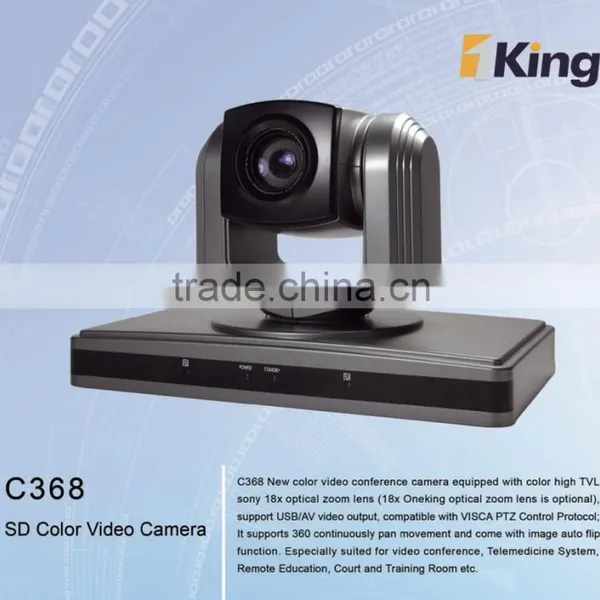

C368 New color video conference camera equipped with color high TVL 18x optical zoom lens(18x optical zoom lens is optional), support USB/AV video output, compatible with VISCA PTZ Protocol; It supports 360 continuously pan movement and come with image auto flip function.
Especially for Video Conference, Telemedicine System, Remote Education, Court and Training Room etc.
Product Description
Features:
- Private camera mould design
- HOV 54.8 degree for wide angle
- 18x optical zoom from 5-90mm at F1.6-F3.0
- 550TVL/650TVL ,SN/oneking camera module
- High speed PTZ Plateform with low noise motor
- Video Output: SD:VBS,S-Video(Sony lens). USB(optional)
Specification:
- Support speed match,OSD Menu,image auto flip,boundary scanning and remote control.
- Support VISCA/PELCO-D protocol and RS232C/RS485
- Support 4 cruise sequence and 64 preset postions.
- Support spped adjustment from 1-200 °/s at Pan and from 1-150°/s at Tilt.
- Support 360 ° pan movement range.
- Support IR wireless remote control P/T/Z
- Support celling mount and desktop Installation.
Images:
Specification Sheet
| Camera module | C368 / Sony 18X | C368/ Oneking 18x | |
| Image Sensor | Sensor | 1/4" Exview CCD | 1/3’ Sony Effio-E CCD |
| Signal System | PAL/NTSC | PAL/NTSC | |
| Illumination | 1.0Lux/F1.4 | 0.5 Lux | |
| White Balance | Auto/Manual | Auto/Manual | |
| Gain Control | Auto | Auto | |
| Back-light | On /Off | On /Off | |
| compensation | |||
| E-Shutter | 1 - 1/100,000s | 1/50-1/10,000s | |
| Horizontal | 550TVL | 650TVL | |
| Resolution | |||
| S/N Ratio | >50db | >50db | |
| Lens | Focus | f=4.1-73.8 F1.4 -3.0 | f=5-90mm F1.6 -3.0 |
| Iris | Auto/Manual | Auto/Manual | |
| Zoom | 18 Optical x 12 Digital Zoom | 18x optical zoom | |
| Video Output | SD:VBS,S-Video(Sony lens), USB(optional) | ||
| Control Decoder | Built-in decoder | ||
| Communication | EIA/RS422, EIA/RS232(Bidirectional) | ||
| Interface | |||
| PTZ Control Protocol | VISCA, PELCO-P, PELCO-D (optional) | ||
| Baud Rate | 9600/38400bps | ||
| Patrol Lines | 4 Patrol Lines | ||
| Preset Position | 64 Preset Position | ||
| Power-off Protection | Saved scanning or patrol line settings Automatically Before power off | ||
| Speed Matching | Slow down camera Pan/Tilt movement speed while camera zooming in | ||
| OSD Menu | To change parameters of camera or camera module from OSD Menu | ||
| Image Auto Flip | Image Auto Flip | ||
| Pan Speed | 1-200° /S | ||
| Tilt Speed | 1-150°/S | ||
| Pan Rotation Angle | 360° continuously | ||
| Tilt Rotation Angle | Up: 90°, Down: 45° | ||
| Auto Pan Scan | Support auto pan scanning | ||
| Boundary Scan | 0-359° (programmable) | ||
| Remoter Control | IR wireless remote controller P/T/Z | ||
| Power Supply | DC12V±10%, 1.2A | ||
| Working Temperature | 0-50°C | ||
| Environment Humidity | 0-95%RH | ||
| Size(LxWxH) | 250X140X145mm | ||
| Weight | 1380g | ||
Packaging & Shipping
1. Color box with PE Foam, Strong Carton
2. T/T, Western Union, Paypal
