SD Conference Camera 550TVL/650TVL 18x Optical Zoom Video Conferencing Solution

SD Conference Camera 550TVL/650TVL 18x Optical Zoom Video Conferencing Solution thumbnail-1
SD Conference Camera 550TVL/650TVL 18x Optical Zoom Video Conferencing Solution photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Video Conference System, Other, Video Conference System, video conferencing solution
Function:
Other
Simultaneous Interpretation:
No
Contact Supplier Request Quote Chat Now
Shenzhen Oneking Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Video Conference System, Other, Video Conference System, video conferencing solution
Function Other
Simultaneous Interpretation No
Place of Origin Guangdong, China
Brand Name Oneking/OEM
Model Number C368-USB

Specifications

video conferencing solution
1) SN18x/CN 18x Optical zoom
2) S-Video, USB, SD:VBS
3) VISCA/PELCO-D
4) Wall/Ceiling/Tripod mou



We are professional manufacturer of Color Video Conference Camera------



SD conference camera  550TVL/650TVL 18x optical zoom video conferencing solution



video conferencing solution



HD Color Video PTZ Caemra

Model No: C368

SD conference camera 550TVL/650TVL 18x optical zoom video conferencing solution





C368 New color video conference camera equipped with color high TVL 18x optical zoom lens(18x optical zoom lens is optional), support USB/AV video output, compatible with VISCA PTZ Protocol; It supports 360 continuously pan movement and come with image auto flip function.

Especially for Video Conference, Telemedicine System, Remote Education, Court and Training Room etc.


Product Description



Features:

  • Private camera mould design
  • HOV 54.8 degree for wide angle
  • 18x optical zoom from 5-90mm at F1.6-F3.0
  • 550TVL/650TVL ,SN/oneking camera module
  • High speed PTZ Plateform with low noise motor
  • Video Output: SD:VBS,S-Video(Sony lens). USB(optional)

Specification:



  • Support speed match,OSD Menu,image auto flip,boundary scanning and remote control.
  • Support VISCA/PELCO-D protocol and RS232C/RS485
  • Support 4 cruise sequence and 64 preset postions.
  • Support spped adjustment from 1-200 °/s at Pan and from 1-150°/s at Tilt.
  • Support 360 ° pan movement range.
  • Support IR wireless remote control P/T/Z
  • Support celling mount and desktop Installation.
Images:

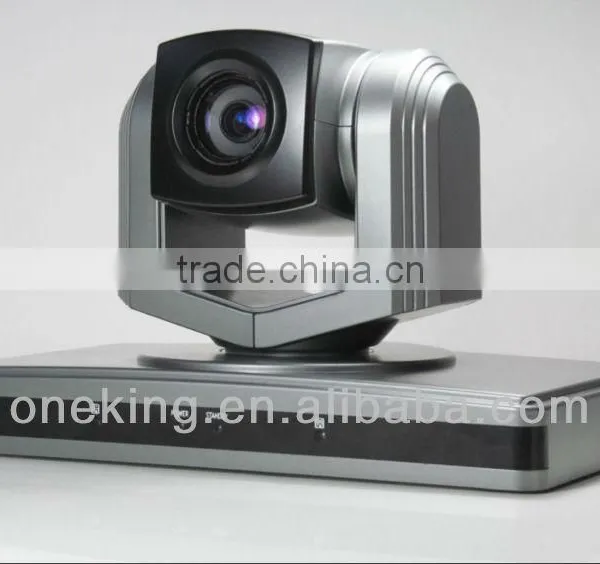

 SD conference camera 550TVL/650TVL 18x optical zoom video conferencing solution
SD conference camera 550TVL/650TVL 18x optical zoom video conferencing solution
SD conference camera 550TVL/650TVL 18x optical zoom video conferencing solution
SD conference camera 550TVL/650TVL 18x optical zoom video conferencing solution


Specification Sheet

  Camera module C368 / Sony 18X C368/ Oneking 18x
Image Sensor Sensor 1/4" Exview CCD 1/3’ Sony Effio-E CCD
Signal System PAL/NTSC PAL/NTSC
Illumination 1.0Lux/F1.4 0.5 Lux
White Balance Auto/Manual Auto/Manual
Gain Control Auto Auto
Back-light  On /Off On /Off
compensation
E-Shutter 1 - 1/100,000s 1/50-1/10,000s
Horizontal 550TVL 650TVL
Resolution
S/N Ratio >50db >50db
Lens Focus f=4.1-73.8 F1.4 -3.0 f=5-90mm F1.6 -3.0
Iris Auto/Manual Auto/Manual
Zoom 18 Optical x 12 Digital Zoom 18x optical zoom
Video Output SD:VBS,S-Video(Sony lens), USB(optional)
Control Decoder Built-in decoder
Communication EIA/RS422, EIA/RS232(Bidirectional)
Interface
PTZ Control Protocol VISCA, PELCO-P, PELCO-D (optional)
Baud Rate 9600/38400bps
Patrol Lines 4 Patrol Lines
Preset Position 64 Preset Position
Power-off Protection Saved scanning or patrol line settings Automatically Before power off
Speed Matching Slow down camera Pan/Tilt movement speed while camera zooming in
OSD Menu To change parameters of camera or camera module from OSD Menu
Image Auto Flip Image Auto Flip
Pan Speed 1-200° /S
Tilt Speed 1-150°/S
Pan Rotation Angle 360° continuously
Tilt Rotation Angle Up: 90°, Down: 45°
Auto Pan Scan Support auto pan scanning
Boundary Scan 0-359° (programmable)
Remoter Control IR wireless remote controller P/T/Z
Power Supply DC12V±10%, 1.2A
Working Temperature 0-50°C
Environment Humidity 0-95%RH
Size(LxWxH) 250X140X145mm
Weight 1380g


Packaging & Shipping

1. Color box with PE Foam, Strong Carton

2. T/T, Western Union, Paypal
