12 Optical x 16 Digital Zoom 560TVL High Quality Camera Tracking Conference System

12 Optical x 16 Digital Zoom 560TVL High Quality Camera Tracking Conference System thumbnail-1
12 Optical x 16 Digital Zoom 560TVL High Quality Camera Tracking Conference System photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Video Conference System, Other, Video Conference System, High Quality Camera Tracking Conference System
Simultaneous Interpretation:
No
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Shenzhen Oneking Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Video Conference System, Other, Video Conference System, High Quality Camera Tracking Conference System
Simultaneous Interpretation No
Place of Origin Guangdong, China
Brand Name Oneking/OEM
Model Number C360-USB-560TVL

Specifications

High Quality Camera Tracking Conference System
a) 12 optical x 16 digital
b) S-Video,VISCA Protocol RS-485/422
c) Wall/ceil

We are proffessional manufacturer of Color Video Conference Camera----

12 Optical x 16 Digital Zoom 560TVL High Quality Camera Tracking Conference System



High Quality Camera Tracking Conference System



Specification sheet



Model no.: C-360-USB



12 optical x 16 digital zoom, 560TVL



12 Optical x 16 Digital Zoom 560TVL High Quality Camera Tracking Conference System

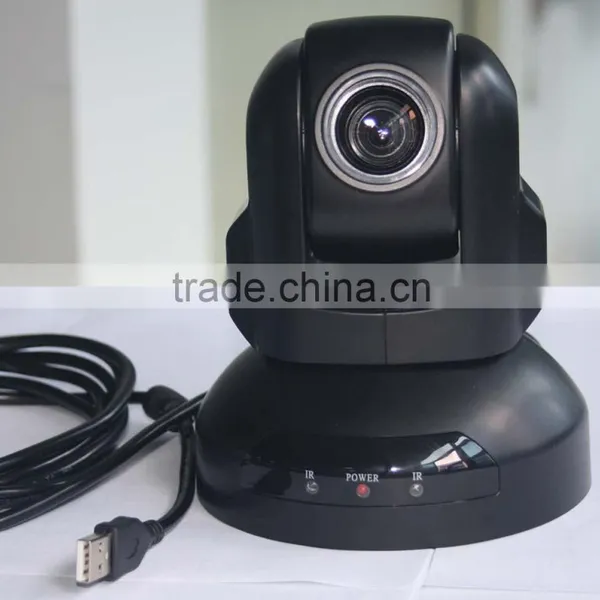

C-360-USB Color Video PTZ Camera which adopted 12 optical x 16 digital zoom with high performance 560TVL Quality, it equipped with USB video card and provided USB, AV video output both, ideally suited for Web video conferencing system, remote education system etc.



Product Description
Features:
  • 12 Optical x 16 Digital 560TVL
  • Built in USB Video Card- CD Driver in the package-
  • USB/AV Video output- Pan >0~280°/s Tilt >0~100°/s
  • 360° continuously Pan rotation
  •  Provided wall & ceiling mounting
  • IR Remote controller
  • Support S-Video RS-232 Visca Protocol

Specification Sheet:

Model    C-360-USB
 Image Sensor          CCD 1/4” Interline Transfer CCD
  Minimum Scene Illumination   0.2Lux at F1.6
  White Balance   AUTO/Manual
  Gain Control   Auto
  Back-light Compensation   On/Off
  Electronic shutter   1/50-1/120,000S
  Horizontal resolution   560 TVL
  S/N Ratio   > 50dB
  Lens      Focus   AUTO
  Iris   AUTO/Manual
  Zoom  12 Optical X 16 Digital
f=3.9-46 mm,F1.67-1.88
  Video Output       VIDEO VBS: 1.0Vpp at 75ohm;
  USB interface
  Communication      EIA/RS-422
  EIA/RS-232 (Bidirectional)
   Baud Rate   4800/9600 bps
   Patrol tours  4
   Pattern tours 4
   Preset  64
   Privacy Mask Zone  4
   Power On Active   Auto pan scan or Patrol (Programmable)
   Speed Matching Function   Support
   OSD Menu    Support
   Image Auto Flip    Support
   Pan Speed   0-280 degrees
   Tilt Speed   0-100 degrees
   Pan rotation angle   360 degrees continuously
   Tilt rotation angle   240 degrees
   Auto Pan Scan   Support
   Boundary Scan   0-359 degrees (programmable)
Remoter Control RF Wireless remote control P/T/Z (10M)
Power DC 12V+-10%;1.2A
Temperature and humidity 0o-60o C,0-95% RH (non-condensation)



High Quality Camera Tracking Conference System Images:

12 Optical x 16 Digital Zoom 560TVL High Quality Camera Tracking Conference System12 Optical x 16 Digital Zoom 560TVL High Quality Camera Tracking Conference System12 Optical x 16 Digital Zoom 560TVL High Quality Camera Tracking Conference System12 Optical x 16 Digital Zoom 560TVL High Quality Camera Tracking Conference System12 Optical x 16 Digital Zoom 560TVL High Quality Camera Tracking Conference System 12 Optical x 16 Digital Zoom 560TVL High Quality Camera Tracking Conference System



Packaging & Shipping

12 Optical x 16 Digital Zoom 560TVL High Quality Camera Tracking Conference System

12 Optical x 16 Digital Zoom 560TVL High Quality Camera Tracking Conference System
