560TVL Conference Camera 12 Optical x 16 Digital Zoom Pan-Tilt-Zoom Mini Camera

560TVL Conference Camera 12 Optical x 16 Digital Zoom Pan-Tilt-Zoom Mini Camera thumbnail-1
560TVL Conference Camera 12 Optical x 16 Digital Zoom Pan-Tilt-Zoom Mini Camera photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Video Conference System, Other, Video Conference System, Pan-Tilt-Zoom mini Camera
Simultaneous Interpretation:
No
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Shenzhen Oneking Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Video Conference System, Other, Video Conference System, Pan-Tilt-Zoom mini Camera
Simultaneous Interpretation No
Place of Origin Guangdong, China
Brand Name Oneking/OEM
Model Number C360-USB-560TVL

Specifications

Pan-Tilt-Zoom mini Camera
a) 12 optical x 16 digital
b) S-Video,VISCA Protocol RS-485/422
c) Wall/ceilling/tripod

We are proffessional manufacturer of Color Video Conference Camera----

560TVL Conference Camera 12 Optical x 16 Digital Zoom Pan-Tilt-Zoom mini Camera



Pan-Tilt-Zoom mini Camera



Specification sheet



Model no.: C-360-USB



12 optical x 16 digital zoom, 560TVL



560TVL Conference Camera 12 Optical x 16 Digital Zoom Pan-Tilt-Zoom mini Camera

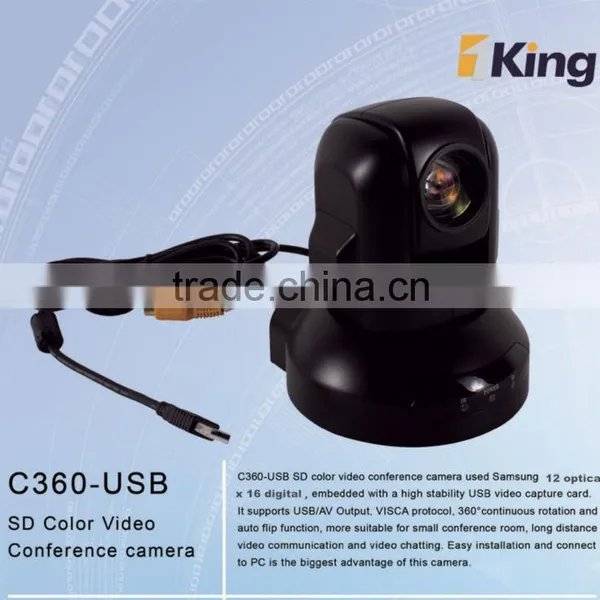

C-360-USB Color Video PTZ Camera which adopted 12 optical x 16 digital zoom with high performance 560TVL Quality, it equipped with USB video card and provided USB, AV video output both, ideally suited for Web video conferencing system, remote education system etc.



Product Description
Features:
  • 12 Optical x 16 Digital 560TVL
  • Built in USB Video Card- CD Driver in the package-
  • USB/AV Video output- Pan >0~280°/s Tilt >0~100°/s
  • 360° continuously Pan rotation
  •  Provided wall & ceiling mounting
  • IR Remote controller
  • Support S-Video RS-232 Visca Protocol

Specification Sheet:

Model    C-360-USB
 Image Sensor          CCD 1/4” Interline Transfer CCD
  Minimum Scene Illumination   0.2Lux at F1.6
  White Balance   AUTO/Manual
  Gain Control   Auto
  Back-light Compensation   On/Off
  Electronic shutter   1/50-1/120,000S
  Horizontal resolution   560 TVL
  S/N Ratio   > 50dB
  Lens      Focus   AUTO
  Iris   AUTO/Manual
  Zoom  12 Optical X 16 Digital
f=3.9-46 mm,F1.67-1.88
  Video Output       VIDEO VBS: 1.0Vpp at 75ohm;
  USB interface
  Communication      EIA/RS-422
  EIA/RS-232 (Bidirectional)
   Baud Rate   4800/9600 bps
   Patrol tours  4
   Pattern tours 4
   Preset  64
   Privacy Mask Zone  4
   Power On Active   Auto pan scan or Patrol (Programmable)
   Speed Matching Function   Support
   OSD Menu    Support
   Image Auto Flip    Support
   Pan Speed   0-280 degrees
   Tilt Speed   0-100 degrees
   Pan rotation angle   360 degrees continuously
   Tilt rotation angle   240 degrees
   Auto Pan Scan   Support
   Boundary Scan   0-359 degrees (programmable)
Remoter Control RF Wireless remote control P/T/Z (10M)
Power DC 12V+-10%;1.2A
Temperature and humidity 0o-60o C,0-95% RH (non-condensation)



Pan-Tilt-Zoom mini Camera Images:

560TVL Conference Camera 12 Optical x 16 Digital Zoom Pan-Tilt-Zoom mini Camera560TVL Conference Camera 12 Optical x 16 Digital Zoom Pan-Tilt-Zoom mini Camera560TVL Conference Camera 12 Optical x 16 Digital Zoom Pan-Tilt-Zoom mini Camera560TVL Conference Camera 12 Optical x 16 Digital Zoom Pan-Tilt-Zoom mini Camera560TVL Conference Camera 12 Optical x 16 Digital Zoom Pan-Tilt-Zoom mini Camera 560TVL Conference Camera 12 Optical x 16 Digital Zoom Pan-Tilt-Zoom mini Camera



Packaging & Shipping

560TVL Conference Camera 12 Optical x 16 Digital Zoom Pan-Tilt-Zoom mini Camera

560TVL Conference Camera 12 Optical x 16 Digital Zoom Pan-Tilt-Zoom mini Camera
