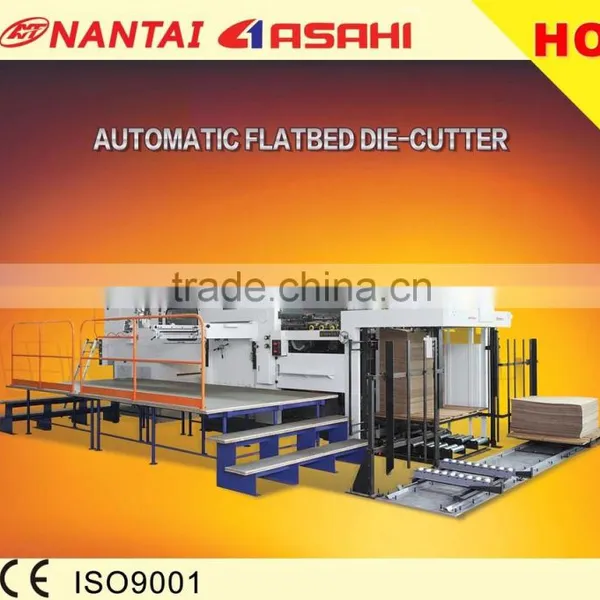

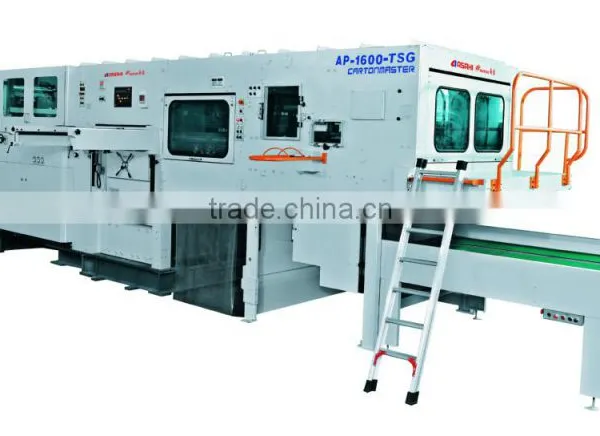

Help CenterASAHI AP-1600-TSG Automatic Die Cutting Machine
Related Products
-
Laminated Paper Automatic Flat Bed Die-cutting MachineNegotiableMOQ: 1 Set -
NANTAI-Carton Machine AP-1600 Automatic Flat-bed Die CuttingNegotiableMOQ: 1 Set
-
ASAHI--AP-1600-TSG Corrugated Flat Bed Die-cutting MachineNegotiableMOQ: 1 Set
-
Corrugated Flat-bed Automatic Die-cutting Machine AP-1600NegotiableMOQ: 1 Set
-
ASAHI-Cardboard Die Cutting Machine AP-1060-TSNegotiableMOQ: 1 Set
- Exclusively for colorful-mounted paper and corrugated board with upper haptor feeding system
- Accurate registration from E flute to double-wall A flute
- Complete stripping by a pair of male and female stripping forms and automatic grip edge waste removal.
- High productivity is available for short run and long run job.
- Safety devices protect operators and dual safety system stops machine run even power is cut off.

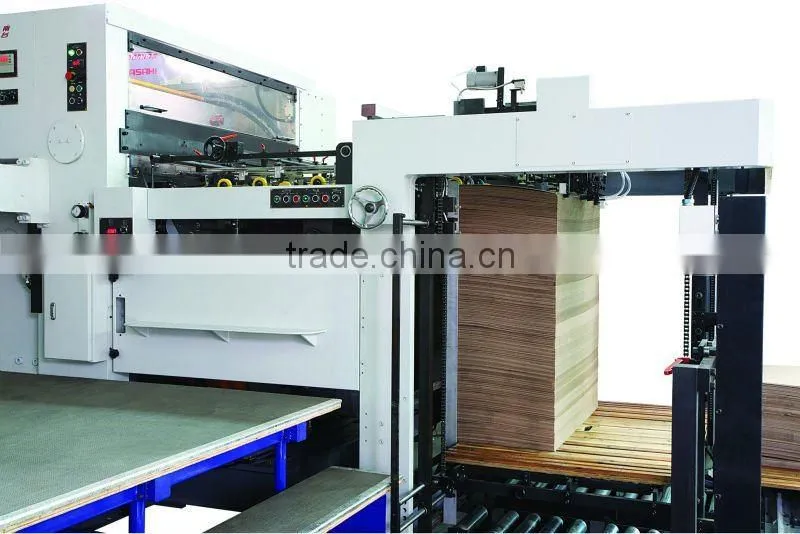

Feeding section
Exclusively for corrugated board with non-stop bottom feeder.
Accurate registration from E flute to double-wall AB flute.

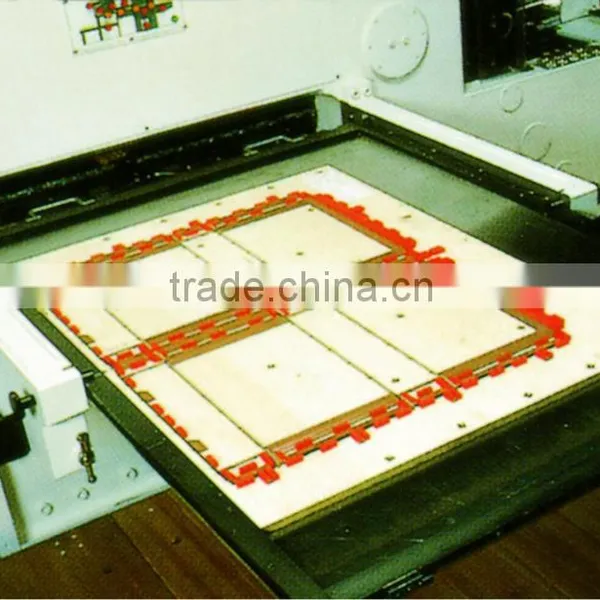

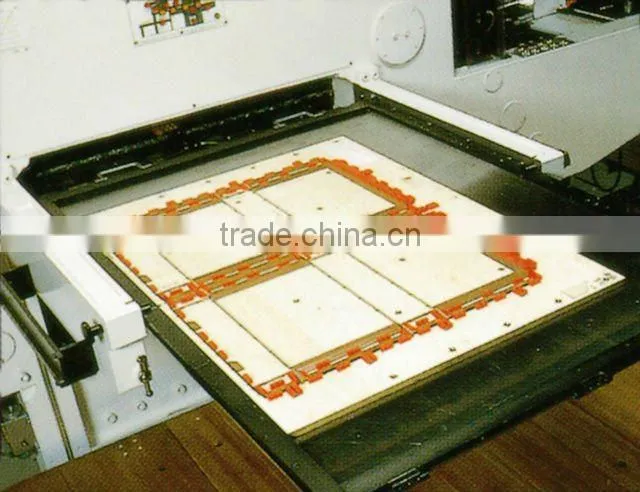

Die cutting section
Stable die-cutting performance guarantees the precision, strong and uitable for high-speed operation drive system assures he smooth movement of gripper bar.

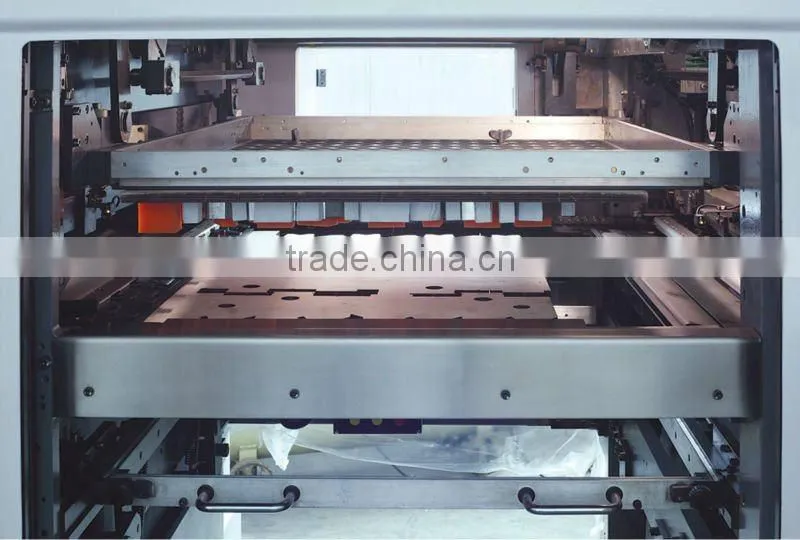

Stripping section
Upper and lower frames make the dies succeed in performance. Male and femae dies can move up-an-down, making stripping more completely.
Knock-off section

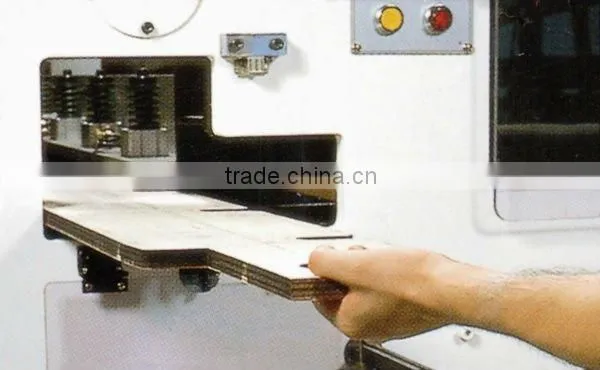

Knock-off plate can e set and fixed from operation side, once self-locking by cylinder.

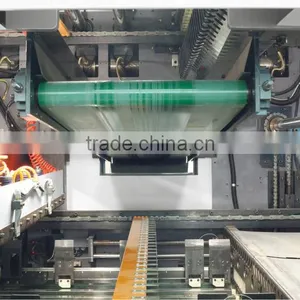

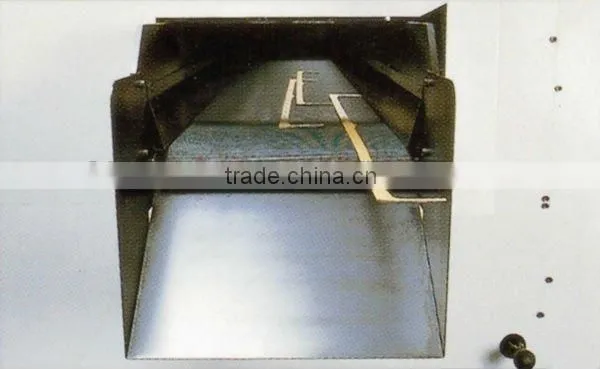

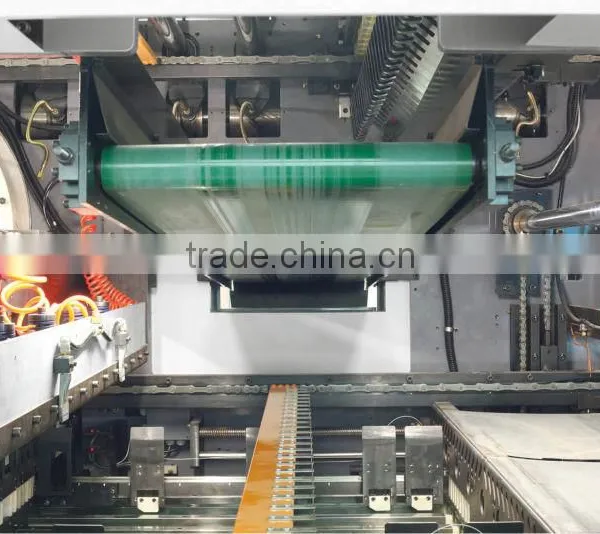

Scrap Conveyer
The grip edge on pin of grpper can be automatically removed and carried out of machine by conveyor.
- All tooling set form outside of the machine.
-
MODEL
1600TSG
Maximum sheet size
1100X1600mm
Minimum sheet size
450X600mm
Miximum cutting size
1080X600mm
Gripper size
15(±5)mm
Inside size
1120X1620mm
Maximum operational pressure
350tons
Applicable thickness of corugated board
0.5-5mm
Maximum speed
5750i.p.h
Required power supply
34KW
Net weight of machine
32tons

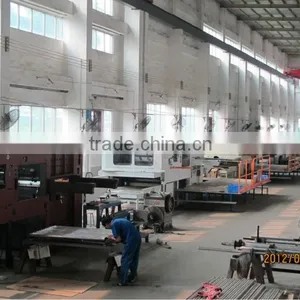

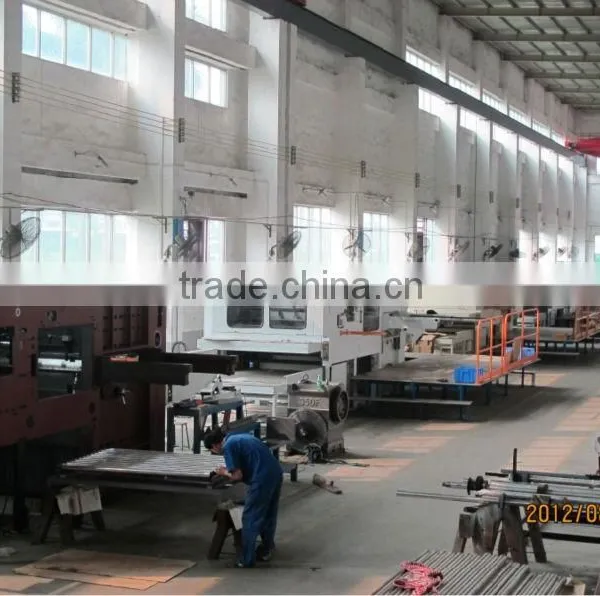

Factory View
Carton Sample
