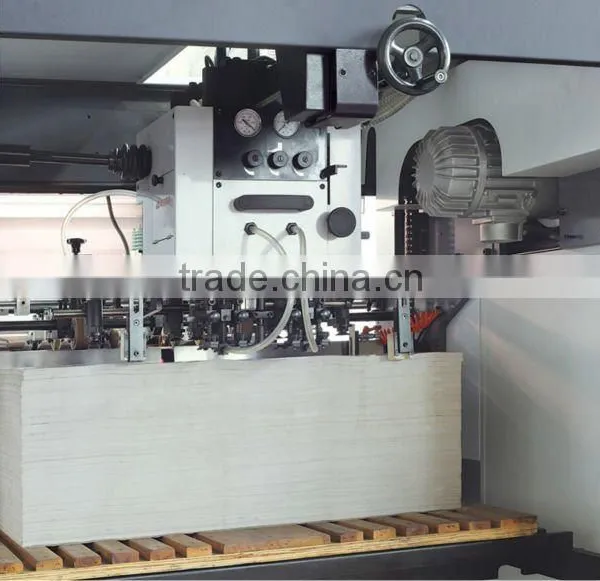

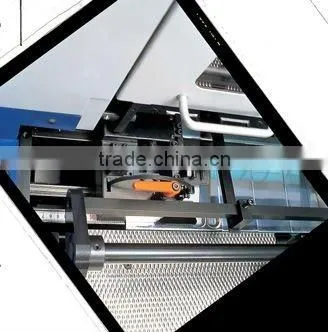

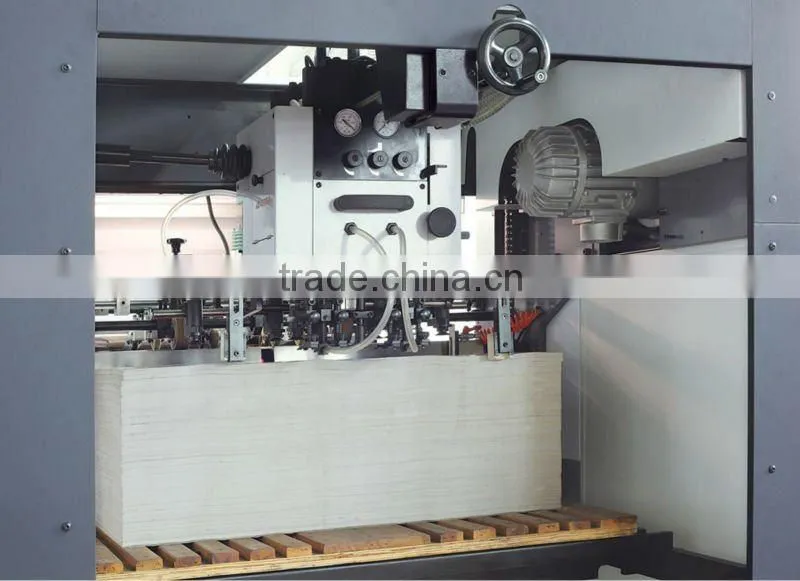

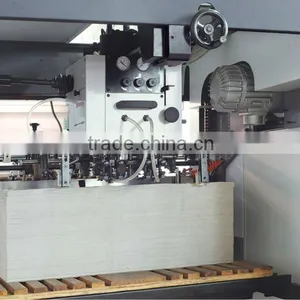

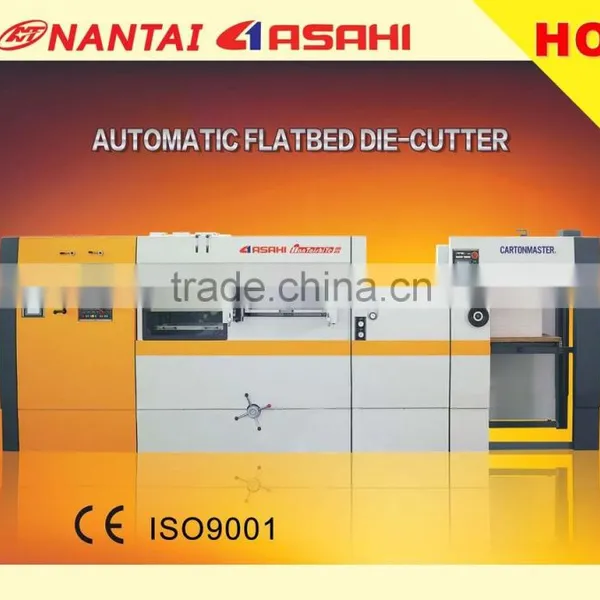

Feeding transfer system
l High-speed paper pressing and transferring device can effectively feed all sorts of paper in different sizes to die-cutting section.
l The position of rubber conveyer belt; pressure roller and brush roller can be easily adjusted according to the size of sheets.
l The height of press wheel and belt can be easily adjusted according to the thickness of sheets, and this can guarantee transfer speed and precision.

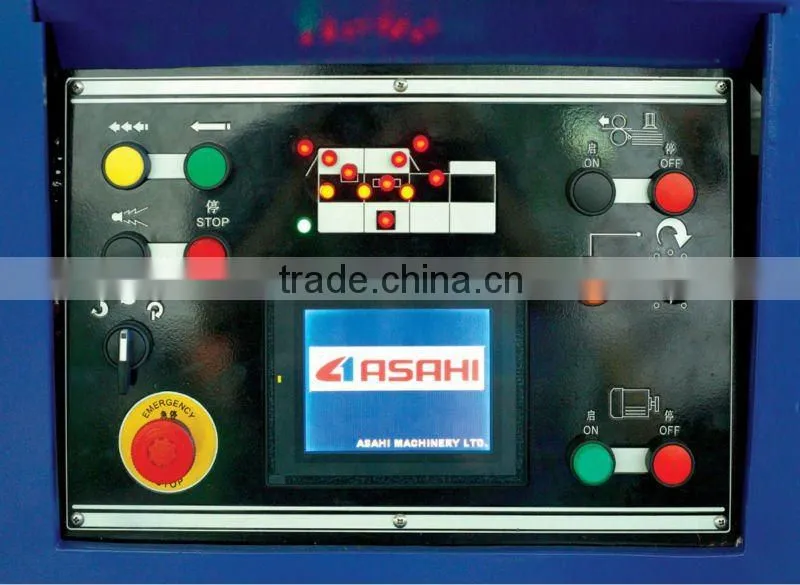

Control panel and the man-machine Interface
l Centralized control for easy operation.
l Constant monitoring of sensor conditions.
l Feeder and delivery tables include incremental hoist control that operate in 5 different modes.
l Visual fault finding diagnostic“help and Maintenance Menu”
l Optional, communications with tailor made program for production planning links.

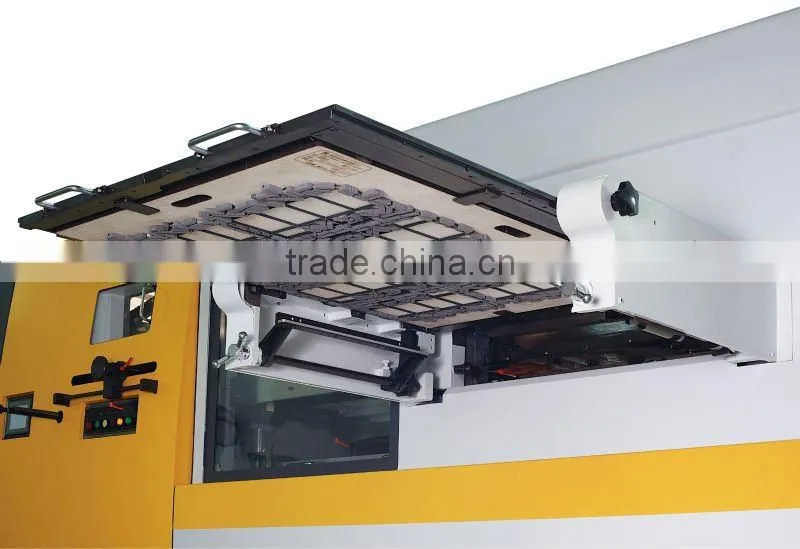

Die-cutting section
l Die-cutting section with worm gear and crankshaft driving system,make main platform and die-cutting plate obtain double lifting force,and guarantee precision of die-ctting.The pression of dit-cutting is shown by pressure meter,easy to read.
l Quick-chaninging plate and self-locking system can shorten setup time and control the precision to be with 0.1mm.The separate pressure regulating device at four comers makes more balance of pression,and increases 20% of tool useful life.
l Rake teeth made from earometal and positioning struture.Tooth pin adopts double-chip struture,made by silicon manganese,and provides twice durability compared with competitor.
l The chain from DID Japan is special processed,each of them is stretch proccessed in the factory and supplied in pair, making the service life longer.
l Magnetic clutch from Japan is adopted,can quickly divide and shut.Machine can operate well without extra air supply.
Cross adjustment device

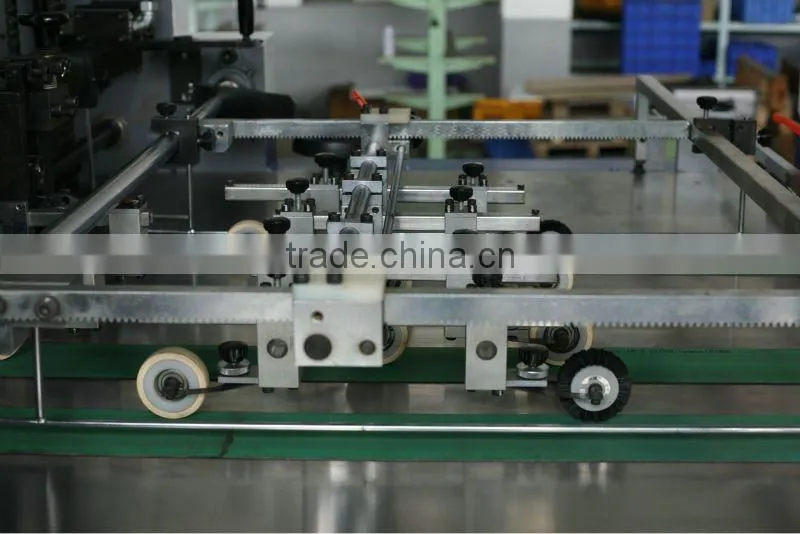

l Side limiting stopper integrates paper pushing and pulling. It’s easy to switch pushing and pulling style by pressing the button according to the thickness of paper.
l Photo detector can be accurate to less than 0.1mm. Machine will automatically stop and wait for detection for unacceptable tolerance.
l The safety feature of defence overloading impact can protect rake teeth for gripping paper avoid striking, making paper transfer more stable, and higher precision
Delivery section
- The independent cam link mechanism moves with graduator, making receiving more tidy
- Delivery section is used for stacking finished paper. When gripping bar catches paper and stop at delivery section, discharged ram pushes the paper down.
- A long brush makes finished paper fal smoothly, and eliminates static electricity
Technical Data
| Specification | |
| Maximum sheet size | 740x1600mm |
| Minimum sheet size | 270x400mm |
| Maximum cutting size | 730x1050mm |
| Minimum cutting size | 270x400mm |
| Minmum gripper size | 8mm |
| Maximum speed | 7500i.p.h |
| Maximum operational pressure | 250tons |
| Required power supply | 19KW |
| Inside size | 764x1120mm |
| Paper thickness | For cardboard:0.1-1.5mm For corrugated board:4mm B flute |
| Die-cutting precision | ±0.1mm |
| Net weight of machine | 13tons |
| Exterior sizes | 5708x3700x2040mm |
