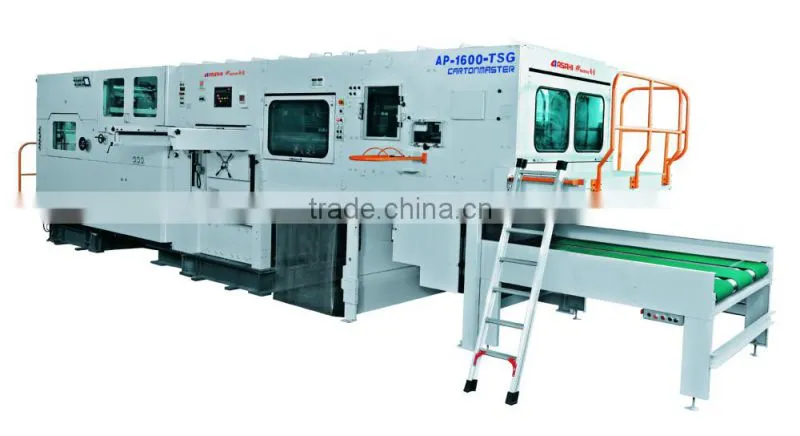

NANTAI-Carton Machine AP-1600 Automatic Flat-bed Die Cutting
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Machinery & Hardware
Packaging Type:
Other, Nude pack
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/ Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ASAHI--AP-1600-TSG Corrugated Flat Bed Die-cutting MachineNegotiableMOQ: 1 Set -
Corrugated Flat-bed Automatic Die-cutting Machine AP-1600NegotiableMOQ: 1 Set
-
ASAHI-Cardboard Die Cutting Machine AP-1060-TSNegotiableMOQ: 1 Set
-
ASAHI-Automatic Diecutting MachineNegotiableMOQ: 1 Set
-
AP-1600-MII-TSG Automatic Die-cutting MachineNegotiableMOQ: 1 Set
Condition
New
Application
Other, Machinery & Hardware
Packaging Type
Other, Nude pack
Packaging Material
Other, corrugated
Automatic Grade
Automatic
Driven Type
Electric
Voltage
380V/50HZ
Power
34KW
Place of Origin
Guangdong, China
Brand Name
Nantai/ Asahi
Model Number
AP-1600
Weight
36Tons
Certification
CE
After-sales Service Provided
Overseas service center available
- Exclusively for colorful-mounted paper and corrugated board with upper haptor feeding system
- Accurate registration from E flute to double-wall A flute
- Complete stripping by a pair of male and female stripping forms and automatic grip edge waste removal.
- High productivity is available for short run and long run job.
- Safety devices protect operators and dual safety system stops machine run even power is cut off.
- All tooling set form outside of the machine.

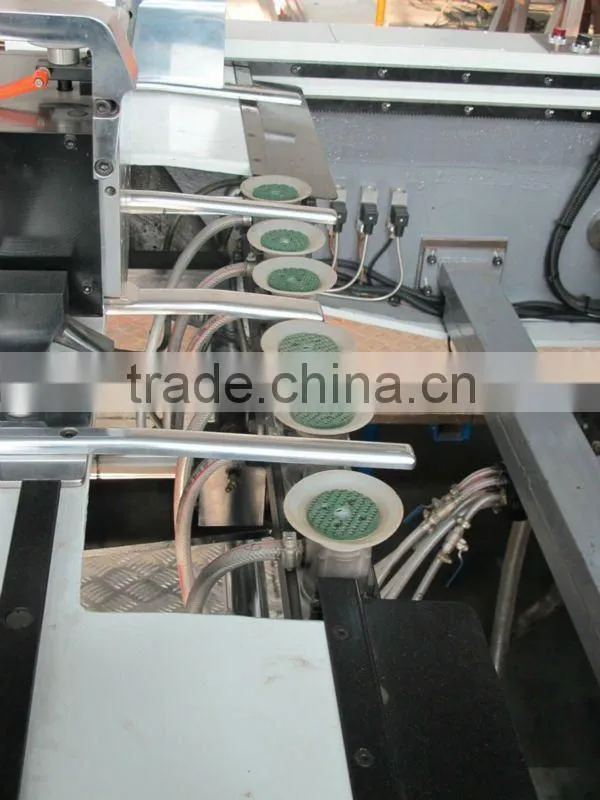

Feeding unit
Exclusively for corrugated board with non-stop bottom feeder.

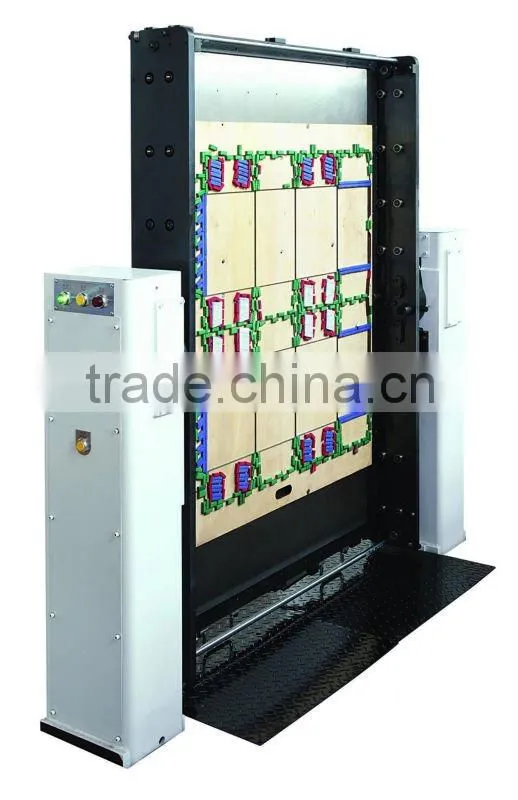

Die cutting unit
The cutting die an be seto the had cutting frame quickly and easily . The frame can carry with stainless steel plate to extend service life.

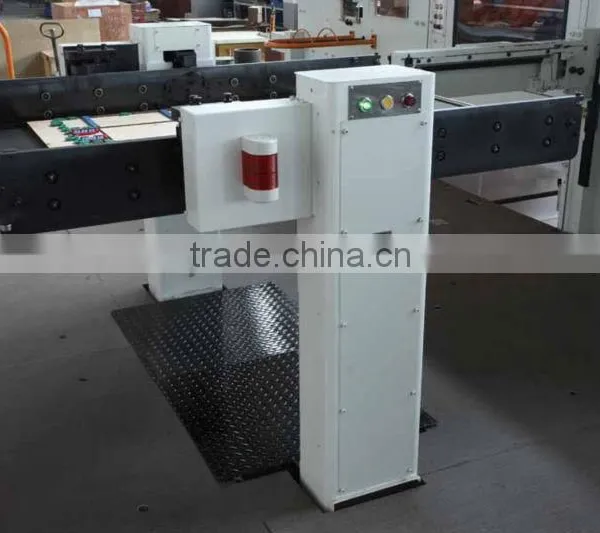

Non-stop pre-change plate function.
Hence, save setting time, improve production efficiency and high safety.
Stripping unit
Upper and lower frames make cutting die succeed in performance. Male and female die can move up and down, making stripping more completely.

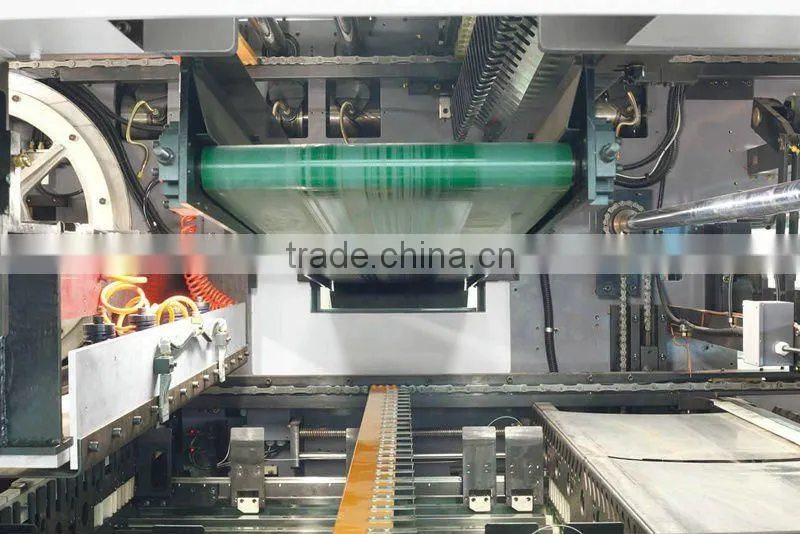

Grip edge waste removal device
The grip edge on pin of gripper can be automatically removed and carried out of machine by conveyor belt.

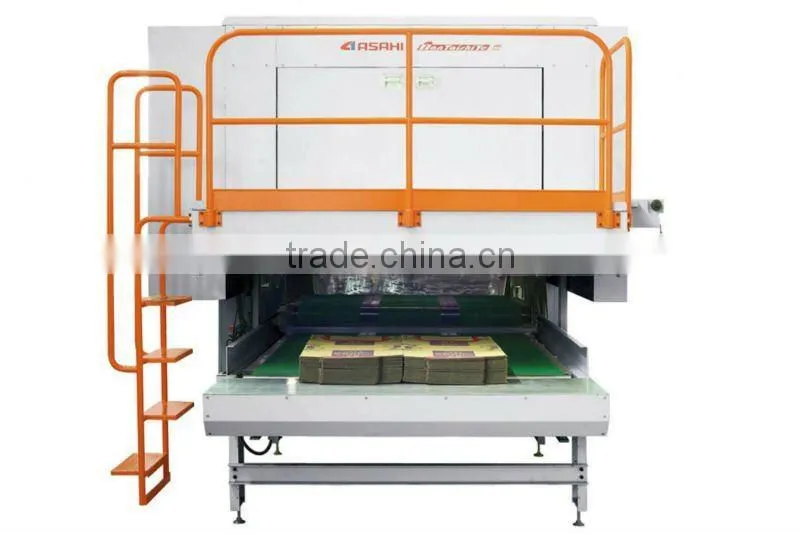

Delivery unit
Delivery patform is driver by motor, easy for setting.

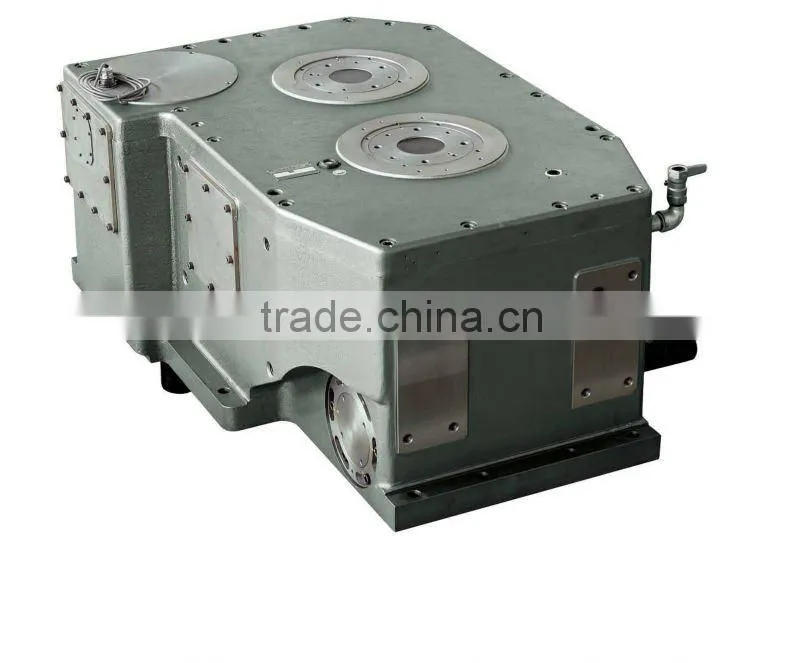

Sankyo cam box
It has the charateristics of accurate indexing, stable performance and durability.
| Technical Data | |
| Model | AP-1600-TSG |
| Maximum sheet size | 1100X1600mm |
| Minimum sheet size | 450X600mm |
| Maximum cutting size | 1080X1600m |
| Gripper size | 15(±5)mm |
| Inside size | 1120X1620mm |
| Maximum operational pressure | 350tons |
| Applicable thickness of corrugated board | 0.5-5mm |
| Maximum speed | 5000i.p.h. |
| Required power supply | 34KW |
| Net weight of machine | 32tons |
