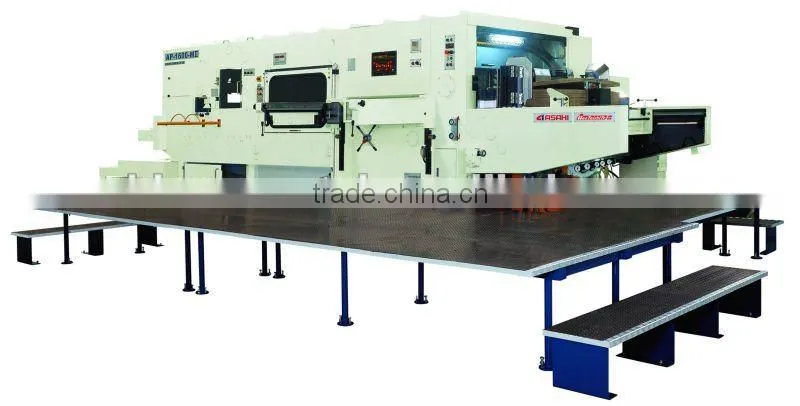

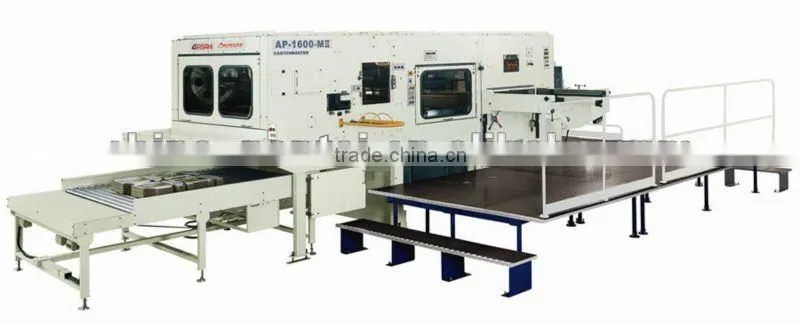

Help CenterCorrugated Flat-bed Automatic Die-cutting Machine AP-1600
Related Products
-
ASAHI-Cardboard Die Cutting Machine AP-1060-TSNegotiableMOQ: 1 Set -
ASAHI-Automatic Diecutting MachineNegotiableMOQ: 1 Set
-
AP-1600-MII-TSG Automatic Die-cutting MachineNegotiableMOQ: 1 Set
-
ASAHI-NANTAI Automatic Die Cutting Machine 1060TNNegotiableMOQ: 1 Set
-
ASAHI NANTAI Automatic Diecutting and Creasing MachineNegotiableMOQ: 1 Set

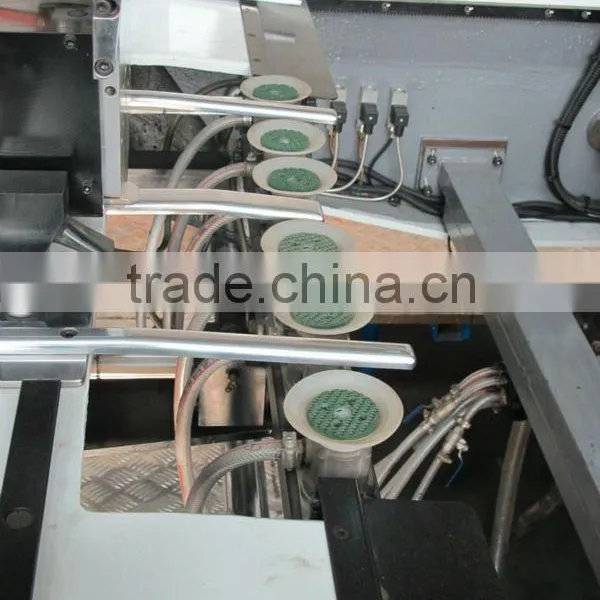

Exclusively for corrugated board with non-stop bottom feeder
- Accurate registration from E flute to double-wall AB flute

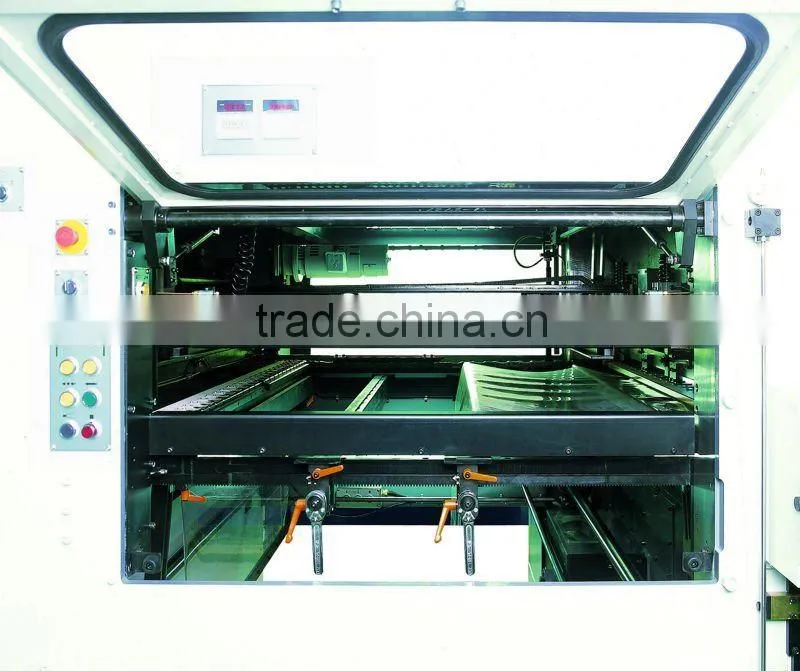

Stripping section
The quick-setting way of die is adopted, operator can finish the setting from exterior, withot entering the machine.

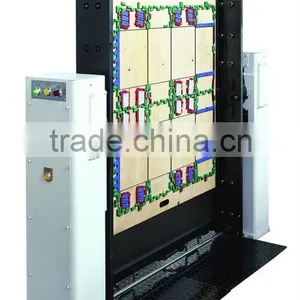

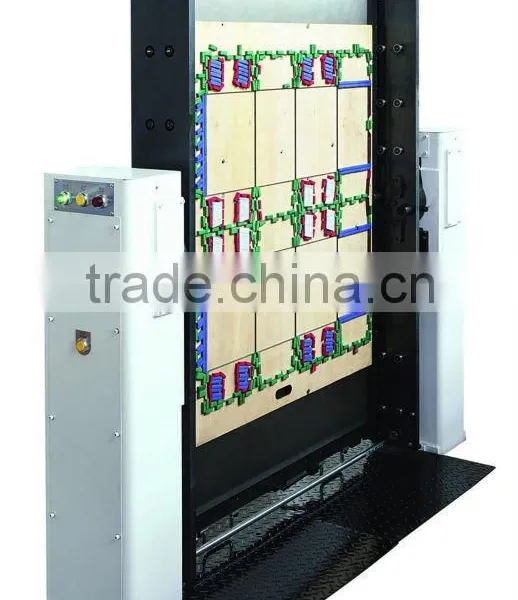

Cutting die (Optional: alternate replaced device )
Alternate replaced plte is ptional, realizing non-stop pre-changing plate function. Hence, save setting time, improve production efficiency and high safety.
Knock-off setting
Knock-off plate can be set and fixd from operation side, once self-locking by cylinder.

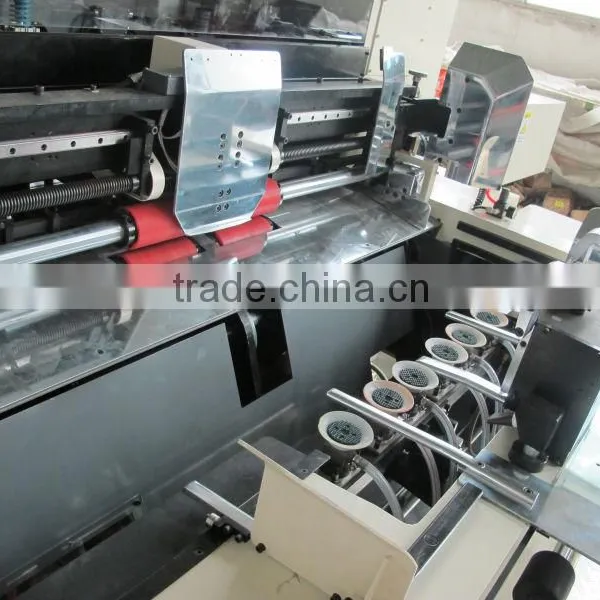

Grip edge waste removal device
The grip edge on pin of gripper can be automatically removed and carried out of machine by conveyor belt.
Transmission and Lubrication system
Transmission adopts Sankyo cam box ( graduator) and safety clutch.
Technical Data
MODEL |
1600BSG |
|
Maximum sheet size |
1100X1600mm |
|
Minimum sheet size |
450X600mm |
|
Miximum cutting size |
1080X600mm |
|
Gripper size |
15(±5)mm |
|
Inside size |
1120X1620mm |
|
Maximum operational pressure |
350tons |
|
Applicable thickness of corugated board |
1.5-9mm |
|
Maximum speed |
5750i.p.h |
|
Required power supply |
34KW |
Carton Sample
Factory View
WELCOME TO VISIT OUR COMPANY!
