coltan Tantanum Tin concentrate refining cross belt magnetic separator
Description
The device is a Dry Intensified Magnetic Separator, applicable for separations of ilmenite, rare earth ore, chromite, tungsten and tin ores, limonite, columbium and tantalum ores, zircon, rutile, monazite, andalusite, garnet, kyanite, feldspar, quartz and other minerals with magnetic differences or removal of iron in nonmetallic minerals.4 varieties of products can be obtained by separation of the device.
Main device comprises feeding unit, weak magnetic roller, drive part, material conveying apparatus, magnetic disk, electromagnetic system, frame and others. The electric control section consists of components of control, voltage regulation, rectification, instrument and so on. It features compact structure, stable performance, easy installation and convenient operation and maintenance.
Advantage
1. this machine could separate four different usefull mineral in one time.
2. this machine could get the final concentrate of three to four mineral.
3. Ta & Nb grade could reach 60% by using this machine.
4. easy to install, adjust, operate.
5. magnetic intensity adjustable, could be used for other mineral concentration.

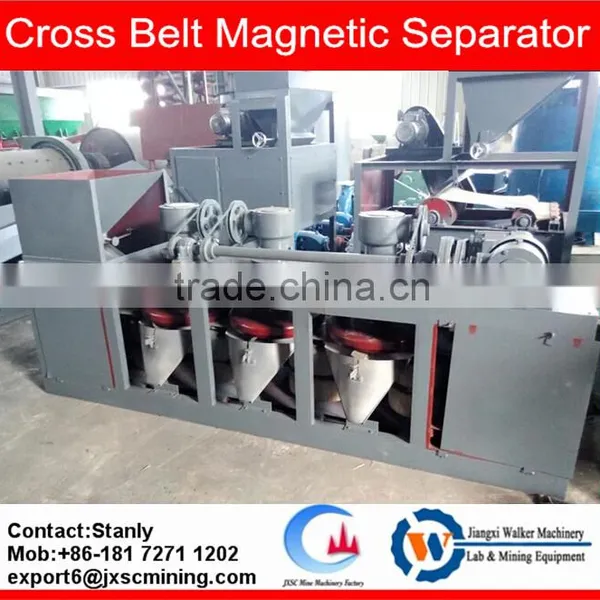

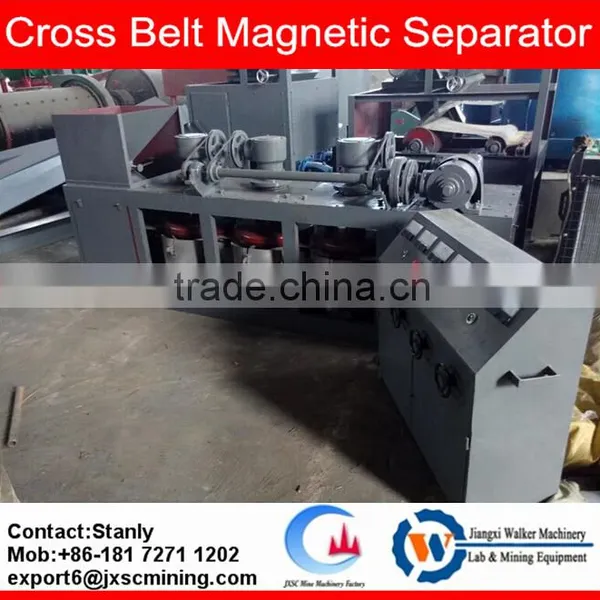

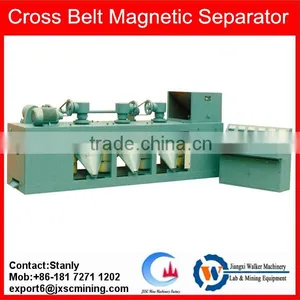

Structure of cross belt magnetic separator
1. magnetic separator feeding bin 2. magnetic separator feeding cylinder
3. Strong magnetic product hopper 4. screen chute
5. vibrating chute 6. Excitation control cabinet
7. magnetic machine disk
Specification and models
Pictures of the workshop
The control pannel
Coltan beneficiation machine in operation
The coil and brush
Small drum magnetic separator under the feeding hopper
We get rich experience in coltan / columbite mining in Africa, if there's any questions please contact with us.
Any question,Please feel free to contact with stanley
