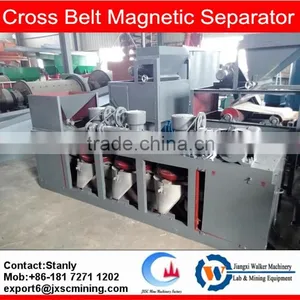

Dry Magnetic Separator for Coltan Tantanum Tin Concentrate Refining

dry magnetic separator  for coltan Tantanum  Tin concentrate refining

Description of   dry magnetic separator

The device is a Dry Intensified Magnetic Separator, applicable for separations of ilmenite, rare earth ore, chromite, tungsten and tin ores, limonite, columbium and tantalum ores, zircon, rutile, monazite, andalusite, garnet, kyanite, feldspar, quartz and other minerals with magnetic differences or removal of iron in nonmetallic minerals.4 varieties of products can be obtained by separation of the device.

 Main device comprises feeding unit, weak magnetic roller, drive part, material conveying apparatus, magnetic disk, electromagnetic system, frame and others. The electric control section consists of components of control, voltage regulation, rectification, instrument and so on. It features compact structure, stable performance, easy installation and convenient operation and maintenance.

Advantage of   dry magnetic separator

1. this machine could separate four different usefull mineral in one time.

2. this machine could get the final concentrate of three to four mineral.

3. Ta & Nb grade could reach 60% by using this machine.

4. easy to install, adjust, operate.

5. magnetic intensity adjustable, could be used for other mineral concentration.

structure  of  dry magnetic separator

1. magnetic separator feeding bin   2. magnetic separator  feeding cylinder

3. Strong magnetic product hopper 4. screen chute

5. vibrating chute 6.  Excitation control cabinet

7. magnetic machine disk

Specification of   belt magnetic separator

Pictures of the workshop

The control pannel of   dry magnetic separator

Coltan beneficiation machine in operation

The coil and brush

Small drum magnetic separator under the feeding hopper

We get rich experience in coltan / columbite mining in Africa, if there's any questions please contact with us.
