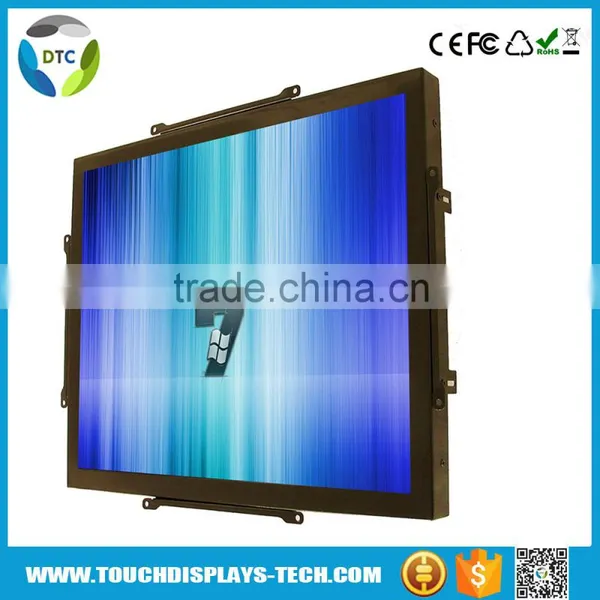

1931E 19" All-In-One Open Frame Touch Computers
Features
1. Small footprint , retail-hardended , flexible touchcpmputers
2. 1000:1 contrast ratio, and 250-nit brightness (LCD panel)
3. Long lasting product cycle-enclosure
4. Multilingual on-screen display (OSD)
5. High quality panel with 170° x 160° viewing angle
6. Optional front mount and rack mount bezels
7. optional Front bezel be sealed IP64
8. Fully RoHS compliant
9. Mounting options including rear-mount and VESA mount
10. Resistive and Surface Acoustic Wave Single-touch Technology
Applications
1. Countertop kiosk information systems
2. Gaming and amusement
3. Self-service Equipment
4. Point-of-information
Accessories
1. Power Cord (US, EU or UK type)
2. Power Brick
3.User Manual (English only)
Specifications:
Case/Bezel Color |
Black/Silvery/white(Customized) |
|
Display Size |
19" |
|
LCD Type |
TFT LCD(LED backlight) |
|
Aspect ratio |
5 : 4 |
|
Useful Screen Area |
376.3 mm x 301.1 mm |
|
Touch panel |
Projected Capacitive touch screen |
|
Touch response time |
5ms (PCAP typical) |
|
Touch Monitor Dimensions |
415 x 343 x 54 mm |
|
Optimal (native) Resolution |
1280 x 1024 |
|
LCD panel Pixel pitch |
0.294 x 0.294 mm |
|
LCD panel Colors |
16.7 million |
|
LCD panel Brightness |
2 250 cd/m2 (high brightness customized upto 1000 cd/m2) |
|
LCD panel Response Time |
5ms |
|
|
Viewing Angle (typical, from center) |
Horizontal (left/right) |
±85° or 170° total |
Vertical (up/down) |
±80° or 160° total |
|
Contrast Ratio |
1000:1 |
|
|
ECM (Embed Computer Modul) |
ECM1: tel® processor D2550 & 1037U (Dual Core 1.86GHz,Fanless); ECM2: Intel® processor D2700 (Dual Core 2.13GHz,Fanless); ECM3: Intel® processor P8600 (Dual Core 2.4GHz,Fan-cool); ECM4: Intel® processor i3 2310M(Dual Core 2.1GHz, Fan-cool); ECM5: Intel® processor i3 2310M(Dual Core 2.1GHz, Fan-cool); ECM6: Intel® processor i7 2620M (Dual Core 2.7GHz/3.4GHz Turbo, Fan-cool); HDD: 500G(1TB optional);SDD:32G(up to 128G optional); CF Card 32G(up to 128G Optional); Memory: DDR3 2G(up to 8G); Operation System: Win7Pos ready7Win8XPWinCEVistaLinux ECM7: Android dual core 1.5G, Rom 1G,Flash 4G ECM8: Android quad-core 1.2G,Rom 1G, Flash 4G Operation System: 4.2.2 |
|
Memory |
DDR3 2G(up to 8G optional) |
|
Temperature |
Operating: 0°C to 40°C ;Storage -20°C to 60°C |
|
Humidity (non condensing) |
Operating: 20%-80%; Storage: 10%-90% |
|
Shipping Carton Dimensions |
516 x 206 x 456 mm |
|
Weight (approx.) |
Actual: 5.8 kg ;Shipping: 7.2 kg |
|
Warranty Monitor |
3 years(Except for LCD panel 1 year) |
|
3 years(Except for LCD panel 1 year) | ||
Agency Approvals |
CE/FCC RoHS(UL GS optional) |
|
Mounting Options |
75 mm and 100mm VESA mount |
|

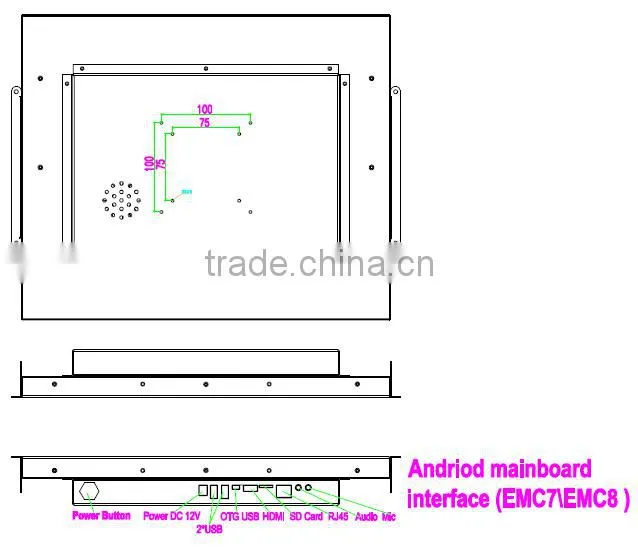

Drawings |
