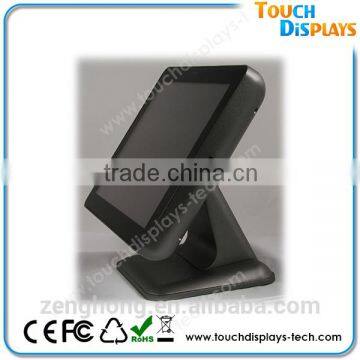

1515E 15" LED POS Touch all in one PC
Android POS all in one
1.Long lasting product cycle-enclosure
2. 800:1 contrast ratio, and 400-nit brightness (LCD panel)
3. High quality panel with 160° x 160° viewing angle
4.Future generation panels phased-in without external changes
Applications
1.Supermarkets/Hospitality POS Solutions/Retails
2.Fine Dining/Casual Dining/Quick Service/Lounge Bar
3.Hotel/Fitness Center/Night Club/Theme Park/Casino/Sports Arena
Accessories
Power Cord (US, EU or UK type) /Power Brick /User Manual (English only)
Optional Accessories
Stand/Customer Second Display/VFD/Cash Drawer/Thermal Printer 58mm or 80mm
Magnetic Card Reader MSR/ iButton/ Handheld Scanner
Specifications
Case/Bezel Color |
Black/Silvery/White/Customize |
|
Display Size |
15.0" |
|
LCD Type |
TFT LCD |
|
Aspect ratio |
4:3 |
|
Useful Screen Area |
304 mm x 228 mm |
|
Touch panel |
Projected Capacitive with multi-touch (SAW flat_touch optional ) | |
Touch response time |
8ms (typical) |
|
Touch Monitor Dimensions |
372x 212 x 318 mm |
|
Optimal (native) Resolution |
1024 x 768 |
|
LCD panel Pixel pitch |
0.297 x 0.297 mm |
|
LCD panel Colors |
16.7 million |
|
LCD panel Brightness |
400 cd/m2 |
|
LCD panel Response Time |
30 ms |
|
|
Viewing Angle (typical, from center) |
Horizontal (left/right) |
±80° or 160° total |
Vertical (up/down) |
±80° or 160° total |
|
Contrast Ratio |
800:1 |
|
output Video signal connector |
Mini D-Sub 15-Pin VGA type and HDMI type (optional)
|
|
Input interface |
Usb 2.0*4 usb 3.0*2(optional)SIM cardPCI-Eearphone
|
|
Net interface |
1*RJ45,1*wifi and bluetooth,3G Card(optional) |
|
|
Power Supply Type
|
External AC to DC power brick |
|
Monitor input: +12VDC ±5%,4.0 A; DC Jack (2.5) | ||
AC to DC power brick input: 100-240 VAC, 50/60 Hz | ||
Power dissipation: 40W max | ||
|
ECM(Embed Computer Modul)
|
ECM7: Android dual core 1.5G, AML, Flash 4G ECM8: Android quad-core 1.2G, Flash 4G Operation System: Android 4.2.2Temperature
ECM1: Intel® processor Celeron 1037U Dual core 1.86 GHZ ; ECM2: Intel® processor D2700 (Dual Core 2.13GHz,Fanless); ECM3: Intel® processor P8600 (Dual Core 2.4GHz,Fan-cool); ECM4: Intel® processor i3 2310M(2.1GHz); ECM5: Intel® processor i5 2410M(2.3GHz/2.9GHz Turbo) ECM6: Intel® processor i7 2620M (2.7GHz/3.4GHz Turbo); HardDisk:320G(500G-1TB optional); Memory:2G(DDR3,max8G); Operation System: Win7Win8XPWinCEVistaLinux |
|
| Temperature |
Operating: 0°C to 40°C ;Storage -20°C to 60°C |
|
Humidity (non condensing) |
Operating: 20%-80%; Storage: 10%-90% |
|
Shipping Carton Dimensions |
556 x 206 x456 mm |
|
Weight (approx.) |
Actual: 6 kg ;Shipping: 8.5 kg |
|
Warranty Monitor |
3 years(Except for LCD panel 1 year) |
|
Backlight lamp life: typical 50,000 hours to half brightness | ||
Agency Approvals |
CE/FCC Rohs |
|
Mounting Options |
75 mm and 100mm VESA mount |
|
1.Optional:ODM
2.Skype: touchdisplays.sales2
3.Touch screen technology: SAW TouchScreen,Projected Capacitive TouchScreen
4.All of our products have 3 years(Except for LCD panel 1 year) warranty .
5.Track the order until you get the goods.
6.All our products are inspected strictly by our QC department before delivery.
