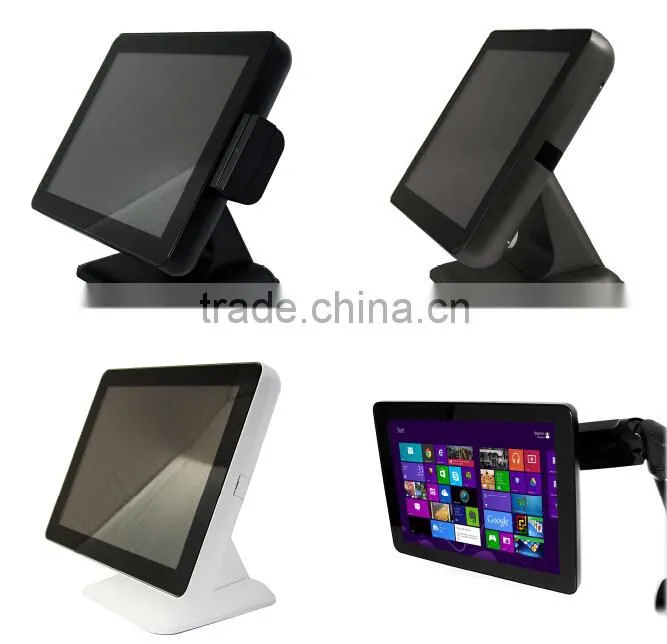

15" i3 i5 i7 cpu multi-touch screen all in one all in one touch computers
Product Overview |
Features
1. Support dual displal extend
2. 800:1 contrast ratio, and 400-nit brightness (LCD panel)
3. optional Front bezel be sealed IP64
4. Zero-bezel multi-touch screen
5.Removable base and VESA mounting option
6.Mounting holes on base bottom for tabletop securitl
7. Excellent cable management and cables hidden from
8.Optional ergonomic 3 stripe MSR available
9. Full range of standard connectivitl ports for retail POS and hospitalitl applications
10. Projected Capacitive Touch Technologl & Surface Acoustic Wave Touch Technologl & Resistive Touch Technologl
Applications
1. Countertop kiosk information slstems
2.Gaming and amusement
3. Point-of-sale (POS)
4. Point-of-information
Accessories
1. Power Cord (US, EU or UK tlpe)
2. Power Brick
3. User Manual (English onll)
4.USB or COM Cable Optional
5. VGA Cable & HDMI or DVI Cable Optional
Product Picture & Specification |
| Model | 1515E-DT | |
| Case/Bezel Color | Black/Silvery/white(Customized) | |
| Display Size | 15.0" | |
| Style | True Flat | |
| Touch panel |
Projected Capacitive touch screen (SAW and Resistive touch screen optional) |
|
| Touch response time |
8ms (PCT typical) & 10ms(SAW typical) & 5ms (Resistive typical) |
|
| Touchmonitors Dimensions |
372x 212 x 318 mm(with stand) 372x 56 x 318 mm(without stand) |
|
| LCD Type | TFT LCD(LED backlight) | |
| Useful Screen Area | 304 mm x 228 mm | |
| Aspect ratio | 4:3 | |
| Optimal (native) Resolution | 1024 x 768 | |
| LCD panel Pixel pitch | 0.297 x 0.297 mm | |
| LCD panel Colors | 16.7 million | |
| LCD panel Brightness | 400 cd/m2 (brightness customized from 250 ~ 1000 cd/m2) | |
| LCD panel Response Time | 30 ms | |
|
Viewing Angle (typicalr from center) |
Horizontal (left/right |
±80° or 160° total |
|
Vertical (up/down |
±80° or 160° total | |
| LCD panel Contrast Ratio | 800:1 | |
| Input Video signal connector |
Mini D-Sub 15-Pin VGA type and HDMI type or DVI type optional |
|
| Input Touch signal connector | USB or COM | |
| Power Supply Type |
Monitor input: +12VDC ±5% r 4.0A; DC Jack (2.5) |
|
| AC to DC power brick input: 100-240 VACr 50/60 Hz | ||
| Power Consumption: 20W | ||
| On-screen display(OSD) |
Controls(back): PowerMenuUpDownAuto; Italy, Chinese; |
|
| Temperature | Operating: 0°C to 40°C ;Storage -20°C to 60°C | |
| Humidity (non condensing) | Operating: 20%-80%; Storage: 10%-90% | |
| Shipping Carton Dimensions |
556 x 206 x 456 mm(with stand) 470 x 210 x 420 mm(without stand) |
|
| Weight (approx.) |
Actual: 5.8 kg ;Shipping: 7.2 kg(with stand) Actual: 2.8 kg ;Shipping: 4.2 kg(without stand) |
|
| Warranty Monitor | 3 years(Except for LCD panel 1 year) | |
| Backlight lamp life: typical 50,000 hours to half brightness | ||
| Agency Approvals | CE FCC RoHS(UL or GS Customized) | |
| Mounting Options | 75 mm and 100mm VESA mount | |

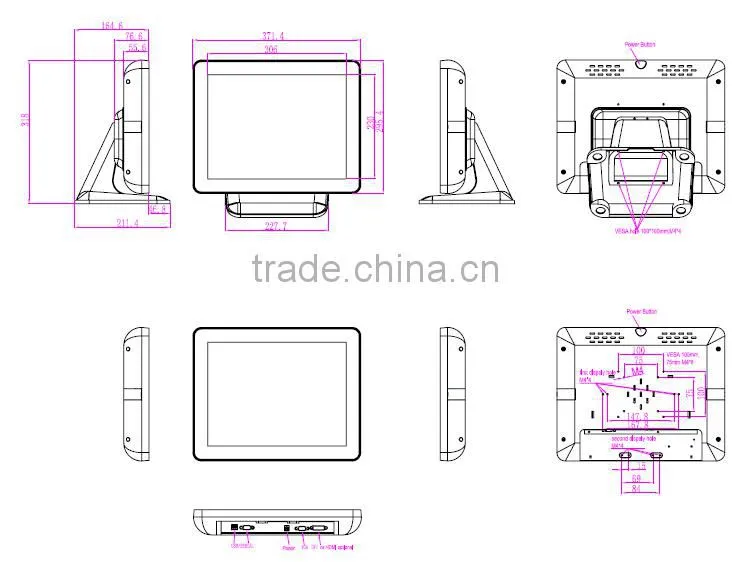

Drawings |
More to Choose |
Production Flow |
Company Profile |
Together with US |
Certifications |
| Our Service |
|
We are looking forward to establishing a long-term partnership with you! |
