Home > Manufacturing & Processing Machinery > Mining Machinery > Mineral Separator > High Efficiency Gemini Gold Shaking Table
High Efficiency Gemini Gold Shaking Table
US$ 2,000 - 3,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Gravity Separator
Production Capacity:
According to materials
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Dalian Port for High Efficiency Gemini Gold Shaking Table Export
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Large Capacity Sea Silica Sand Washing MachineUS$ 6,500 - 20,000MOQ: 1 Set -
New Designed Spring Symons Cone CrusherUS$ 1,999 - 99,999MOQ: 1 Set
-
Large Capacity Vertical Shaft Impact Crusher PriceUS$ 1,000 - 99,999MOQ: 1 Set
-
Professional Designed Factory Price Rotary KilnUS$ 1,000 - 99,999MOQ: 1 Set
-
ISO BV CE Certified Stone Jaw Crusher MachineUS$ 15,000 - 999,999MOQ: 1 Set
Condition
New
Type
Gravity Separator
Production Capacity
According to materials
Place of Origin
Shanghai, China
Brand Name
LIPU
Model Number
6-S and other series
Voltage
In accordance with local voltage
Power(W)
1.1 kw
Dimension(L*W*H)
According to different models
Weight
1.1 t
Certification
ISO, BV, CE
Warranty
One Year
After-sales Service Provided
Engineers available to service machinery overseas

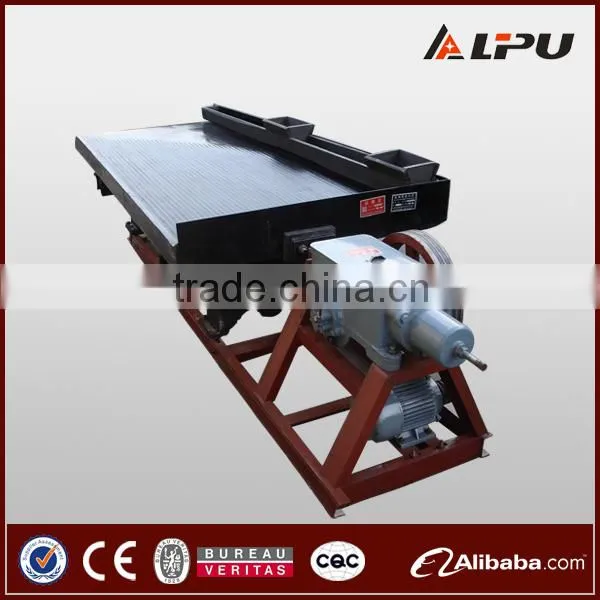

High Efficiency Gemini Gold Shaking Table
Brief Introduction of High Efficiency Gemini Gold Shaking Table
Shaking table is one of the most commonest ore dressing equipment used in gravity separation plant. Its effective finest particle size is 0.037mm. The bed zoning is obvious and easy to operate, and it can get high grade concentrate, middling and tailings. It is widely used for separation of tungsten, tin, tantalum, gold and other rare metal or noble metal. It is also used to separate iron ore, manganese ore and coal.
Features of High Efficiency Gemini Gold Shaking Table
1. High enrichment ration high classification efficiency easy to safeguard and adjust stroke;
2. Strong wear-resistant of working surface;
3. Anti chemical etching acid and alkali resistant;
4. Adaptable to harsh environment;
5. Tight structure as springs are set inside.
Technical Parameters of High Efficiency Gemini Gold Shaking Table
| Name | bed surface for coarse sand | bed surface for fine sand | bed surface for slurry | |
|---|---|---|---|---|
| Bed dimension | Length (mm) | 4450 | 4450 | 4450 |
| transmission end width (mm) | 1855 | 1855 | 1855 | |
| concentrate ore width (mm) | 1546 | 1546 | 1546 | |
| Max Feeding Size (mm) | 2 | 0.5 | 0.15 | |
| Feeding volume (t/d) | 30-60 | 10-20 | 15-25 | |
| Feeding density (%) | 25-30 | 20-25 | 15-25 | |
| stroke (mm) | 16-22 | 11-16 | 8-16 | |
| Frequency ( t/s) | 45-48 | 48-53 | 50-57 | |
| Cross Slope of Surface | 2.5°-4.5° | 1.5°-3.5° | 1°-2° | |
| Mineral dressing area (sq.m.) | 7.6 | 7.6 | 7.6 | |
| Shape of bed surface | Rectangle | indention | Triangle | |
| Motor Power (KW) | 1.1 | 1.1 | 1.1 | |
| Driving type | Eccentric link structure | |||

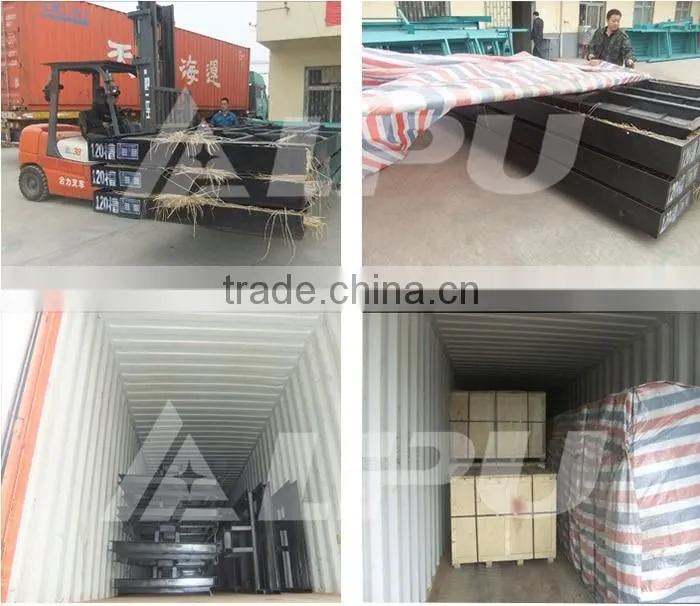

Delivery Site of High Efficiency Gemini Gold Shaking Table
| FAQ |
| Q: How about the quality of your products? |
|---|
| A: Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection. |
| Q: How about the price? |
| A: We are manufactory, and we can give you lower price than those trade companies. Besides, customers from Alibaba can get a discount. |
| Q: Do you provide after-sale service? |
| A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems. |
| Q: Do you provide equipment operation training? |
| A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports. |
| Q: Can you test our samples? |
| A: Yes. You can send your samples to us for test and analysis. |
| Q: Do you provide beneficiation flow chart? |
| A: Yes. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc. |
