New Designed Spring Symons Cone Crusher
US$ 1,999 - 99,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Cone Crusher
Application:
Mining Crushing, Stone mining,metallurgical,construction, etc.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Dalian Port for New Designed Spring Symons Cone Crusher Export
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Large Capacity Vertical Shaft Impact Crusher PriceUS$ 1,000 - 99,999MOQ: 1 Set -
Professional Designed Factory Price Rotary KilnUS$ 1,000 - 99,999MOQ: 1 Set
-
ISO BV CE Certified Stone Jaw Crusher MachineUS$ 15,000 - 999,999MOQ: 1 Set
-
New Type Stone Jaw Crusher SpecificationsUS$ 15,000 - 999,999MOQ: 1 Set
-
Energy Saving Small Mini Diesel Engine Jaw CrusherUS$ 1,000 - 200,000MOQ: 1 Set
Condition
New
Type
Cone Crusher
Application
Mining Crushing, Stone mining,metallurgical,construction, etc.
Motor Type
AC Motor
Power(W)
30-280 kw
Capacity(t/h)
15-1000 tph
Place of Origin
Shanghai, China
Brand Name
LIPU
Model Number
PYB, PYD, PYZ
Dimension(L*W*H)
According to different models
Weight
5- 81.4 t
Certification
ISO, BV, CE
Warranty
One Year
After-sales Service Provided
Engineers available to service machinery overseas
New Designed Spring Symons Cone Crusher
Brief Introduction of New Designed Spring Symons Cone Crusher
PY Series Spring Cone Crusher is suitable for crushing middle and high hardness materials such as various chrome ore, iron ore, diabase,basalt, granite and etc. It has been extensively used in intermediate crushing & fine crushing in many areas such as mining, metallurgy, cement, ceramic, chemical, refractory material, building material and water conservancy industries.
Features of New Designed Spring Symons Cone Crusher
1. High production efficiency because moving cone continuously moves and the crushing process and discharging process goes along with working surface alternately;
2. Low power consumption as materials were placed between fixed cone and moving cone and then materials were squeezed bended and sheared;
3. Average aggregate size mostly cubic;
4. Average wear on the working surface of the moving cone.
Technical Parameters of New Designed Spring Symons Cone Crusher
| Model | Diameter of crushing cone(mm) | Max. feed size(mm) | Discharged size (mm) | Capacity (t/h) | Power(kw) | Speed of eccentric shaft(r/min) | Weight(t) | Overall Dimension(L×W×H)(mm) |
| PYB600 | Φ600 | 65 | 12-25 | 12-25 | 30 | 356 | 5 | 2800×1300×1700 |
| PYD600 | Φ600 | 35 | 3-15 | 5-23 | 30 | 356 | 5.5 | 2800×1300×1700 |
| PYB900 | Φ900 | 115 | 15-50 | 50-90 | 55 | 333 | 10.2 | 3050×1640×2350 |
| PYZ900 | Φ900 | 60 | 5-20 | 20-65 | 55 | 333 | 10.2 | 3050×1640×2350 |
| PYD900 | Φ900 | 40 | 3-13 | 15-50 | 55 | 333 | 10.3 | 3050×1640×2350 |
| PYB1200 | Φ1200 | 145 | 20-50 | 110-200 | 110 | 300 | 24.7 | 4152×2300×2980 |
| PYZ1200 | Φ1200 | 100 | 8-25 | 50-150 | 110 | 300 | 25 | 4152×2300×2980 |
| PYD1200 | Φ1200 | 50 | 3-15 | 18-105 | 110 | 300 | 25.6 | 4152×2300×2980 |
| PYB1750 | Φ1750 | 215 | 25-60 | 280-480 | 160 | 245 | 50.3 | 4870×3800×4192 |
| PYZ1750 | Φ1750 | 185 | 10-30 | 115-320 | 160 | 245 | 50.3 | 4870×3800×4192 |
| PYD1750 | Φ1750 | 85 | 5-15 | 75-230 | 160 | 245 | 50.4 | 4870×3800×4192 |
| PYB2200 | Φ2200 | 300 | 30-60 | 590-1000 | 260-280 | 220 | 80 | 7705×3430×4852 |
| PYZ2200 | Φ2200 | 230 | 10-30 | 200-580 | 260-280 | 220 | 80 | 7705×3430×4852 |
| PYD2200 | Φ2200 | 100 | 5-15 | 120-340 | 260-280 | 220 | 81.4 | 7705×3430×4852 |

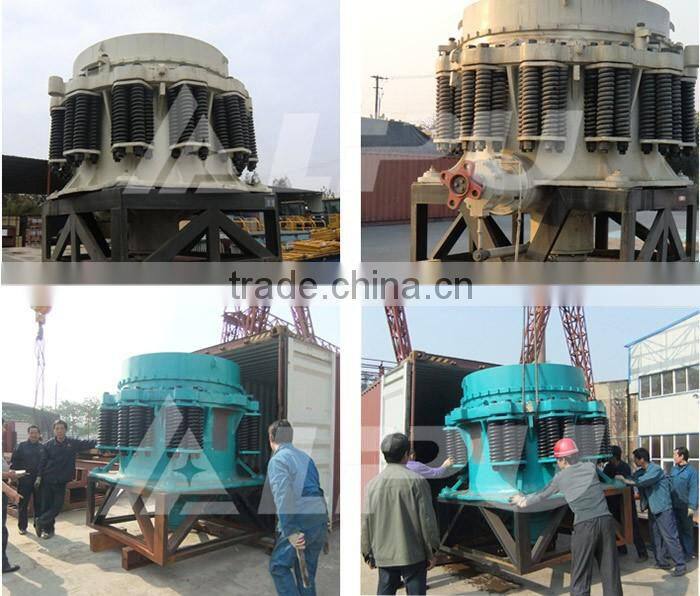

Delivery Site of New Designed Spring Symons Cone Crusher
| FAQ |
| Q: How about the quality of your products? |
|---|
| A: Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection. |
| Q: How about the price? |
| A: We are manufactory, and we can give you lower price than those trade companies. Besides, customers from Alibaba can get a discount. |
| Q: Do you provide after-sale service? |
| A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems. |
| Q: Do you provide equipment operation training? |
| A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports. |
| Q: Can you test our samples? |
| A: Yes. You can send your samples to us for test and analysis. |
| Q: Do you provide beneficiation flow chart? |
| A: Yes. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc. |
