Professional Designed Factory Price Rotary Kiln
US$ 1,000 - 99,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Production Capacity:
According to different models
Place of Origin:
Shanghai, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Dalian Port for Professional Designed Factory Price Rotary Kiln Export
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ISO BV CE Certified Stone Jaw Crusher MachineUS$ 15,000 - 999,999MOQ: 1 Set -
New Type Stone Jaw Crusher SpecificationsUS$ 15,000 - 999,999MOQ: 1 Set
-
Energy Saving Small Mini Diesel Engine Jaw CrusherUS$ 1,000 - 200,000MOQ: 1 Set
-
Professional Designed Energy Saving Stone Jaw BreakerUS$ 15,000 - 999,999MOQ: 1 Set
-
Brand New PE 150x250 Small Jaw Crusher for SaleUS$ 1,000 - 200,000MOQ: 1 Set
Condition
New
Production Capacity
According to different models
Place of Origin
Shanghai, China
Brand Name
LIPU
Model Number
multi-model
Voltage
In accordance with local voltage
Power(W)
4-75 kw
Dimension(L*W*H)
According to different models
Weight
5.1-97 t
Certification
ISO, BV, CE
Warranty
One Year
After-sales Service Provided
Engineers available to service machinery overseas

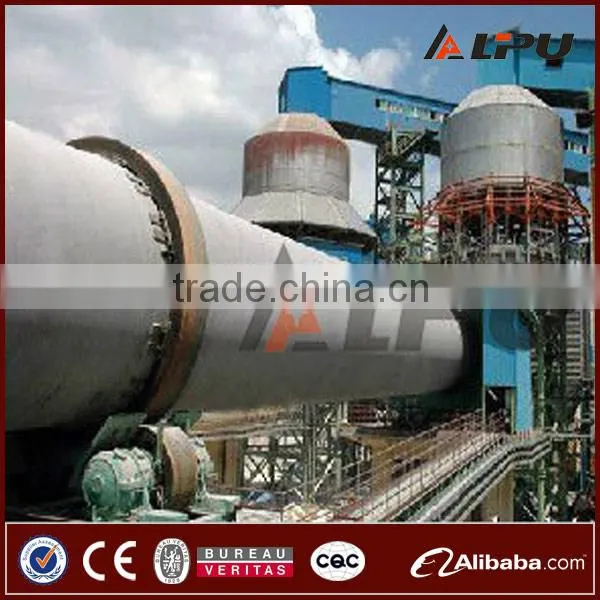

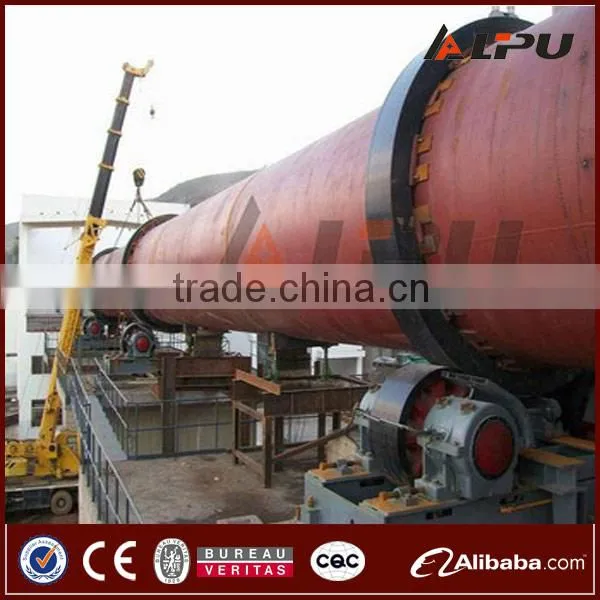

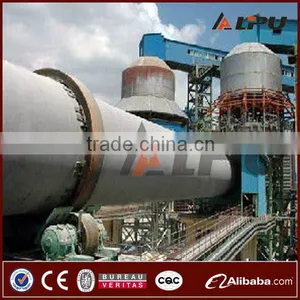

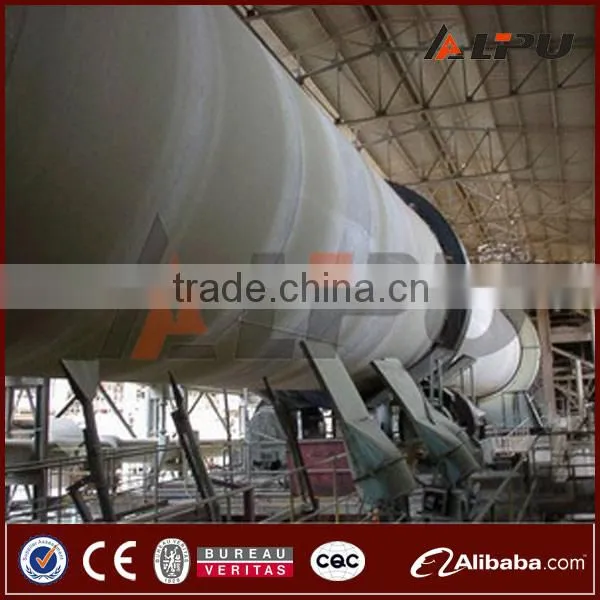

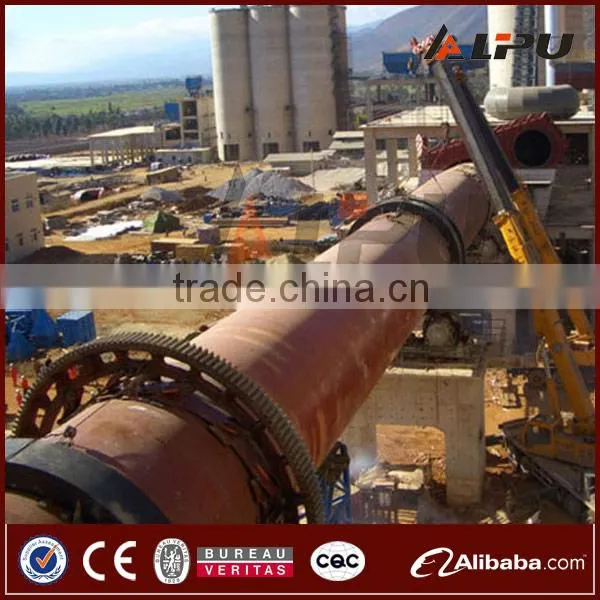

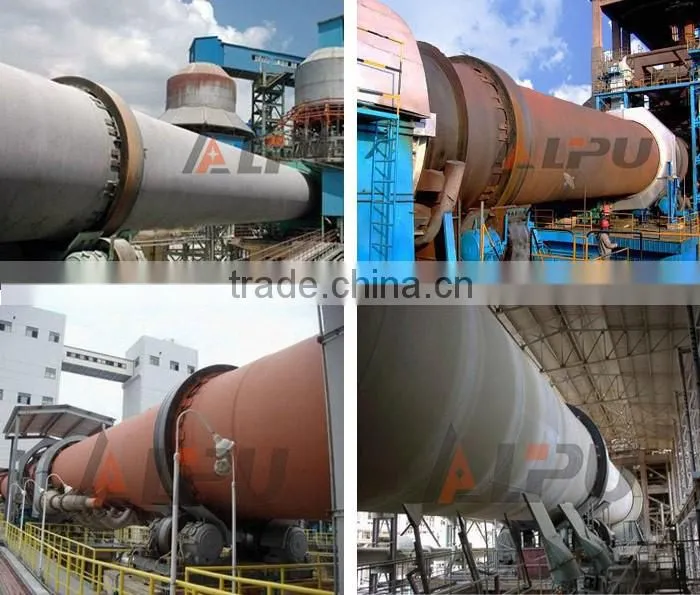

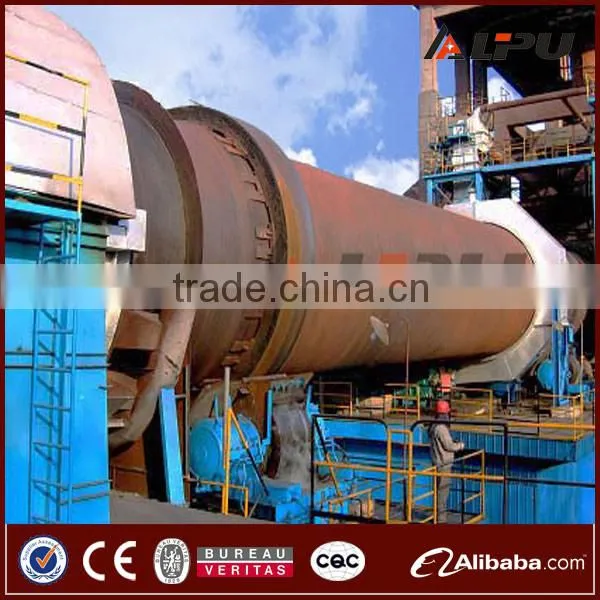

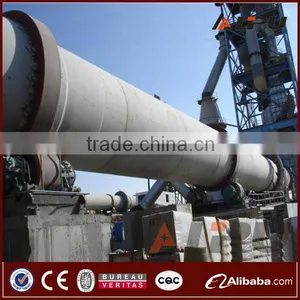

Professional Designed Factory Price Rotary Kiln
Brief Introduction of Professional Designed Factory Price Rotary Kiln
Rotary Kiln is suitable to dry metallic and nonmetallic mineral, clay in cement industry and coal in coal mine, etc. Rotary dryer can be widely used to dry various materials, and it is simple to be operated.
Working Principle of Professional Designed Factory Price Rotary Kiln
Materials are sent to hopper of rotary dryer by belt conveyor or bucket elevator.The barrel is installed with slope to horizontal line. Materials enter the barrel from the higher side, and hot air enters the barrel from the lower side, materials and hot air mix together. Materials go to the lower side by gravity when the barrel rotates. Lifters on the inner side of barrel lift materials up and down to make materials and hot air mix completely. So drying efficiency is improved.
Technical Parameters of Professional Designed Factory Price Rotary Kiln
| Model | Shell diameter (mm) | Shell length (mm) | Slope(°) | Rotary speed(r/m) | Weight(t) | Power (KW) | Volume (m3) |
| Φ0.6×8 | 600 | 8000 | 3-5 | 8 | 5.1 | 6-4 | 2.26 |
| Φ0.8×10 | 800 | 10000 | 3-5 | 7.2 | 6.9 | 6-4 | 5.02 |
| Φ1.0×10 | 1000 | 10000 | 3-5 | 6.73 | 7.5 | 6-5.5 | 7.85 |
| Φ1.2×12 | 1200 | 12000 | 3-5 | 5.8 | 13.1 | 6-11 | 13.31 |
| Φ1.5×12 | 1500 | 12000 | 3-5 | 4.8 | 22.3 | 6-15 | 21.2 |
| Φ2.2×14 | 2200 | 14000 | 3-5 | 3.2 | 52.8 | 30 | 53.22 |
| Φ2.4×18 | 2400 | 18000 | 3-5 | 3 | 73.3 | 37 | 81.43 |
| Φ2.8×24 | 2800 | 24000 | 3-5 | 2.59 | 97 | 75 | 147.8 |
| FAQ |
| Q: How about the quality of your products? |
|---|
| A: Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection. |
| Q: How about the price? |
| A: We are manufactory, and we can give you lower price than those trade companies. Besides, customers from Alibaba can get a discount. |
| Q: Do you provide after-sale service? |
| A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems. |
| Q: Do you provide equipment operation training? |
| A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports. |
| Q: Can you test our samples? |
| A: Yes. You can send your samples to us for test and analysis. |
| Q: Do you provide beneficiation flow chart? |
| A: Yes. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc. |
