Specifications
Magnet Separator :1.CTB series;
2.Shell Diameter;600-1200mm;
3.Capacity:10-120t/h;
4.Separate magnetite.
1.Model:CTB series
2.Shell Diameter;600-1200mm
3.Capacity:10-120t/h
4.Separate magnetite, hematite etc.

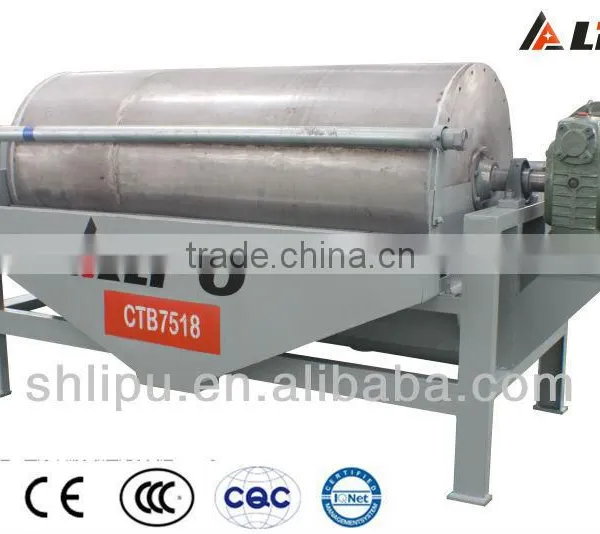

CTB Series High Intensity Magnetic Separator is used to separate magnetite, hematite, limonite, pyrrhotite, ilmenite smaller than 3 mm in wet way. It is also used to separate iron in coal, nonmetallic ore, construction industry, etc. We can provide magnetic separators of forward flow, semi counter flow and counter flow types according to customers’ request.

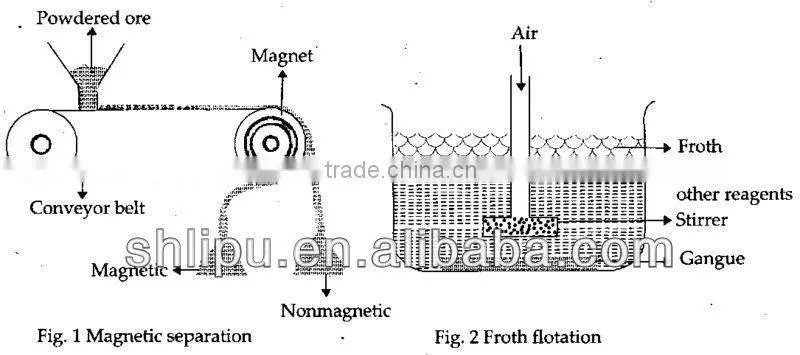

Working principle of Magnet Separator :
Slurry enters chute through ore tank firstly, and then separating zone by waterpower. Mineral with strong magnetism is absorbed on the barrel surface, sent to concentrate discharging zone and discharged into concentrate box by water effect. Gangue and ore with weak magnetism are discharged into a pipe in opposite direction of barrel.
Features of Permanent Magnet Separator :
1. High magnetic intensity.
2. Low energy consumption.
3. Good beneficiating efficiency.
4. Simple structure and easy maintenance.
Product parameter of Magnet Separator :
Model Shell Diameter (mm) Shell length (mm) Feed size (mm) Capacity (t/h) Power(kw) Weight (t) CTB612 Φ600 1200 0-2 10-20 1.1 1.5 CTB618 Φ600 1800 0-2 15-30 2.2 1.8 CTB718 Φ750 1800 0-2 25-45 3.0 2.2 CTB918 Φ900 1800 0-3 35-70 4.0 2.8 CTB1018 Φ1050 1800 0-3 40-75 5.5 4.3 CTB1024 Φ1050 2400 0-3 52-100 5.5 5.2 CTB1218 Φ1200 1800 0-3 47-90 5.5 5.0 CTB1224 Φ1200 2400 0-3 80-120 7.5 6.4 Any change of technical parameters, there is no further notice.
