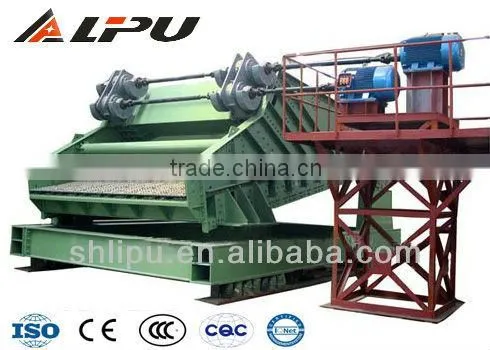

Help CenterHeavy Duty Mining Cold Ore Vibrating Screen With High Efficiency
Related Products
-
Large Capacity Dewatering Vibrating Screen for Silica SandUS$ 1,500 - 999,999MOQ: 1 Set -
China Industrial Blender Mineral Machinery Blender For Ore ExploitingUS$ 1,000 - 999,999MOQ: 1 Set
-
Vibrate Hematite Magnetic Separator for Iron Ore Dressing From ShangHaiUS$ 1,000 - 99,999MOQ: 1 Set
-
XJK&SF Auto Air Suction and Auto Pulp Suction Flotation MachineUS$ 10,000 - 999,999MOQ: 1 Set
-
Iron Sand Permanent Magnetic Separator/Magnetic DrumUS$ 1,000 - 99,999MOQ: 1 Set
Specifications
Mining Cold Ore Vibrating Screen :1.Model:ZSL series;
2.Material:stainless steel;
3.Capacity:100-700t/h;
4.OEM available.
Brief Introduction of Mining Cold Ore Vibrating Screen :
ZSL series cold ore screen is mainly used in metallurgy industry for cold sinter ore classification operation below 150°c.
According to the plant condition, mtor can be installed on the right or left side; we can design and manufacture various specifications of the cold ore screen according to user needs.
Working principle of Mining Cold Ore Vibrating Screen :
ZSL series cold ore screen uses block eccentric biaxial exiciter, which is driven respectively by two electric motors todo reverse synchronization rotate, and make the screen frame along the stright line directions do periodic reciprocating motion, thus promotes the material to complete screening operation.
Technical Parameters of Mining Cold Ore Vibrating Screen:
| Model | Input size(mm) | Vibrating mesh size(mm) | Capacity(t/h) | Double-amplitude(mm) | Frequency(r/min) | Power(kw) |
| ZSL1860 | ≤150 | 10x60 | 100-250 | 8-11 | 740 | 2x15 |
| ZSL 2060 | ≤150 | 10x60 | 150-300 | 8-11 | 740 | 2x15 |
| ZSL 2585 | ≤150 | 10x60 | 250-420 | 8-11 | 740 | 2x22 |
| ZSL 2985 | ≤150 | 10x60 | 350-500 | 8-11 | 740 | 2x22 |
| ZSL 3090 | ≤150 | 10x60 | 450-700 | 8-11 | 740 | 2x30 |
