Specifications
mechanical vibrating feeder1.Stable vibration;
2.Reliable operation;
3.Low energy consumption;
4.ISO9001:2000.
Application of mechanical vibrating feeder :
mechanical vibrating feeder is mainly used to feed materials evenly and continuously into belt conveyor, bucket elevator, screening and crushing equipment before primary crusher, also used for screening fine materials to increase the processing capacity of crusher. The feeding amount can be adjusted flexibly to achieve centralized control and automatic control in the production process.
2. The fence distance can be adjusted, special design of fence can prevent material blocking.
3. Adjustable speed motor applies matched motor to control feeding capacity easily and avoid frequent motor re-start.
Types of mechanical vibrating feeder :
We have various of mechanical vibrating feeder , such as GZD-900×3800,GZD-950×3800,GZD-1100×4900,GZD-1200×4900,GZD-1300×6000 etc. In order to give you a responsible quotation, you can inform us the following information:
- What's the material you are going to deal with?
- What's the granularity of the material?
- What's the granularity of the final products are you going to achive?
- What's the producing capacity you are going to achieve?
Our engineers will suggest you the most suitable one for you according to your information.
mechanical vibrating feeder parameter:
| Model | Funnel size (mm) | Max. feed size (mm) | Capacity(t/h) | Power (kw) | Weight (t) | Overall dimension (L x W x H) ( mm) |
| GZD-900×3800 | 900×3800 | 400 | 80-120 | 6 | 3.89 | 3900x1500x1200 |
| GZD-950×3800 | 950×3800 | 500 | 120-210 | 6 | 3.98 | 3900×1600×1250 |
| GZD-1100×4900 | 1100×4900 | 580 | 160-320 | 11 | 4.52 | 5000×1800×1500 |
| GZD-1200×4900 | 1200×4900 | 650 | 200-430 | 15 | 5.2 | 5000×1900×1700 |
| GZD-1300×6000 | 1300×6000 | 900 | 450-600 | 15 | 6.5 | 6150×1900×2100 |
Any change of technical parameters, there is no further notice.

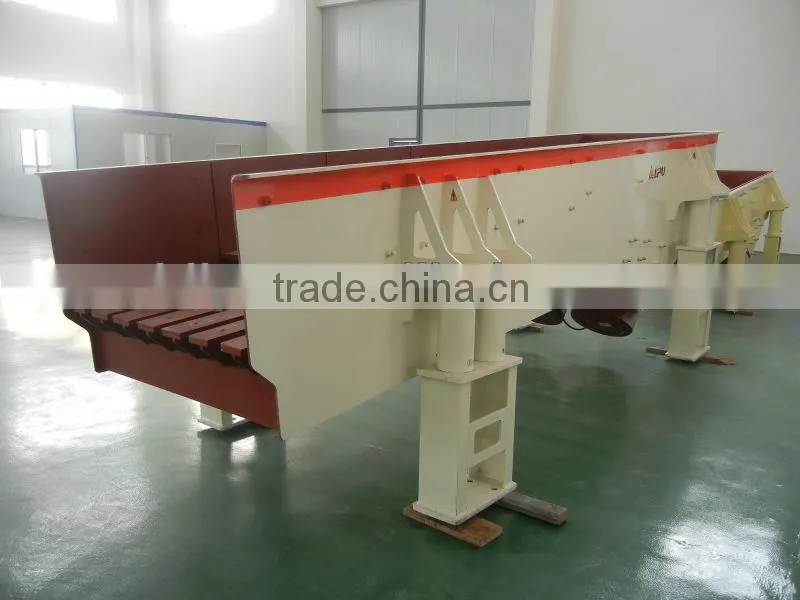

Latest Image of Shanghai Lipu mechanical vibrating feeder :
