Specifications
symons cone crashing machine1,CE,ISO9001:2000 approved;
2,high crushing ratio;
3,easy adjustment;
4,long service life.

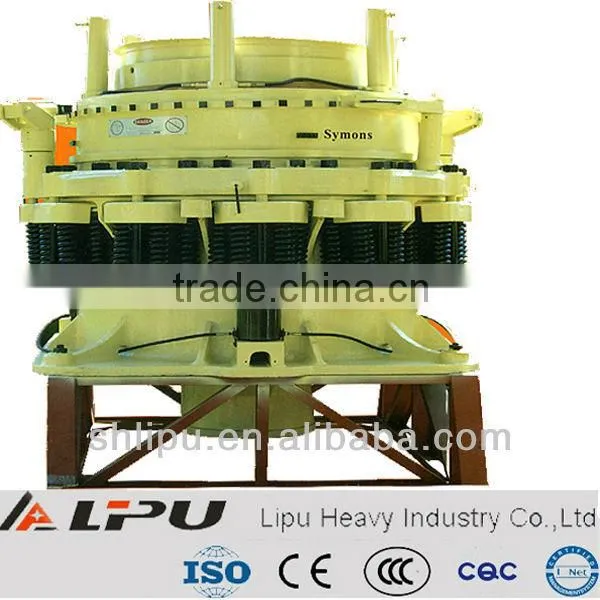

Brief introduction of symons cone crashing machine :
symons cone crashing machine is a kind of secure crusher, currenly the most widely used in the world, with the characteristics of high quality, fine products, even size, long service life, and high efficiency. the Symons Cone Crusher is the world latest cone crusher developed by our company has been experienced the optimized improvement so that Symons Cone Crusher ffeatures perfect reasonable structure and more advanced technology and have the excellent performance in the manufacturing, installation, and maintenance. Symons Cone Crusher has been widely applied in the field of mining industry, metallurgical industry, chemical industry, silicate industry. and now Symons Cone Crusher has been used to proceed the mid hard crushiing of some materials like pebbles, iron ore, limestone, copper ore, quartz, granite, sandstone and so on.
symons cone crashing machine working principle:
1-driven by the electri-motor, the eccentric shaft bush will rotate with the triangle belt, small and big bevel gear, big bear, transmission shaft.
2-driven by the eccentric shaft bush, the cone crusher axis will move in circle, which makes the mantle close or leave the cone from time to time. and then the materials will be crushed by continuously compacting, striking, and bending in the circle crushing cavity between the fixed and moving cone.
3-after several times' repeating, the materials will be crushed to the required size and then they will be discharged by the discharging opening.
symons cone crashing machine Features:
1,big crushing ratio and high efficiency.
2,perfect lubricationg device ensure reliable functions of machine.
3,wearing parts of high quality lowers cost efficiently
4,long life and wide use
Spare parts of symons cone crashing machine :
Technical parameter of symons cone crashing machine :
