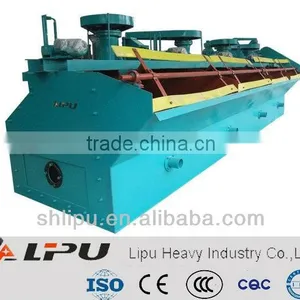

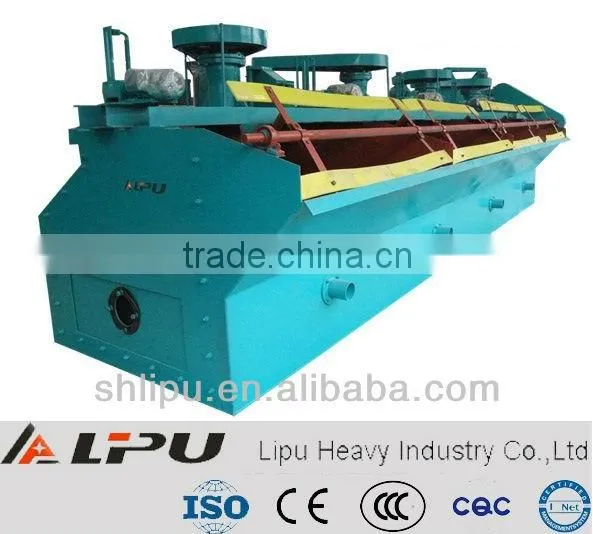

Help CenterIndustry Fluorite Flotation Machine for Silver, Lead and Nickle Ore
Related Products
-
Cement Manufacturing Machine Tank Agitator at Trade ShowsUS$ 1,000 - 999,999MOQ: 1 Set -
Quarranty Guarantee Iron Sand Magnetic Separator Machine for IndonesiaUS$ 1,000 - 99,999MOQ: 1 Set
-
PET and PTA Particle Linear Vibrating Screen Machine for Quarry and Crusher PlantUS$ 1,000 - 999,999MOQ: 1 Set
-
Iron Sand Mineral Processing Flotation Machine Machinery for Small IndustriesUS$ 10,000 - 999,999MOQ: 1 Set
-
Industrial Rectangular Vibrating Screen for CementUS$ 1,000 - 999,999MOQ: 1 Set
Specifications
fluorite flotation machine1.XJK,SF series;
2.Large inhaling capacity;
3.Capacity:0.05-3.5t/h;
4.DiaOf impeller:200-650mm
Specifications of fluorite flotation machine :
1.XJK,SF fluorite flotation machine
2.Large inhaling capacity
3.Capacity:0.05-3.5t/h
4.DiaOf impeller:200-600mm
Application of fluorite flotation machine :
fluorite flotation machine can be used to separate non-ferrous metal, ferrous metal, noble metal, non-metallic mine, chemical material. It can be used in roughing, scavenging, selection or reverse flotation. In the flotation process, after being mixed with drug, some qualified mineral attaches on bubble, floats on the surface of slurry and is scraped out, other mineral still stays in the slurry, so the separating purpose is finished.
fluorite flotation machine Features:
1.Large inhaling capacity and low consumption.
2. Complete flotation circuit with inhaling air and slurry, no auxiliares are needed.
3. Process is easy to be changed.
4. Reasonable circulation of slurry decreases coarse sand sedimentation.
5. Automatic controlling device makes adjustment more convenient.
Types of fluorite flotation machine :
We have various of fluorite flotation machine ,such as XJK-0.13(1A), XJK-0.23(2A), XJK-0.35(3A), XJK-0.62(4A), XJK-1.1(5A),XJK-2.8(6A) etc. In order to give you a responsible quotation, you can inform us the following
information:
1. What’s the material you are going to deal with?
2. What’s the granularity of the material?
3. What’s the granularity of the final products are you going to achive?
4. What’s the producing capacity you are going to achieve?
Our engineers will suggest you the most suitable one for you according to your information.
fluorite flotation machine Parameter:
| Type and specification | Trough volume of the machine | Dia. Of impeller | Production capacity m2/msh | Revolution of the impeller r/min | Scraper revolution r/min |
| XJK-0.13(1A) | 0.13 | 200 | 0.05-0.16 | 600 | 17.5 |
| XJK-0.23(2A) | 0.23 | 250 | 0.12-0.28 | 500 | 17.5 |
| XJK-0.35(3A) | 0.35 | 300 | 0.18-0.4 | 470 | 17.5 |
| XJK-0.62(4A) | 0.62 | 350 | 0.3-0.9 | 400 | 16 |
| XJK-1.1(5A) | 1.1 | 500 | 0.6-1.6 | 330 | 26 |
| XJK-2.8(6A) | 2.8 | 600 | 1.5-3.5 | 280 | 26 |
Model |
Volume(m3) |
Impeller diameter(mm) |
Capacity(m3/min) |
Impeller Speed(r/min) |
Impeller motor |
Scraper motor |
||
Model |
Power(kw) |
Model |
Power(kw) |
|||||
SF0.37 |
0.37 |
300 |
0.2-0.4 |
352 |
Y90L-4 |
1.5 |
Y90S-4 |
1.1 |
SF0.7 |
0.7 |
350 |
0.3-0.9 |
400 |
Y100L2-4 |
3 |
Y90S-4 |
1.1 |
SF1.2 |
1.2 |
450 |
0.6-1.2 |
312 |
Y132M2-6 |
5.5 |
Y90S-4 |
1.1 |
SF2.8 |
2.8 |
550 |
1.5-3.5 |
268 |
Y160L-6 |
11 |
Y90S-4 |
1.1 |
SF4 |
4 |
650 |
0.5-4 |
238 |
Y180L-6 |
15 |
Y90L-4 |
1.5 |

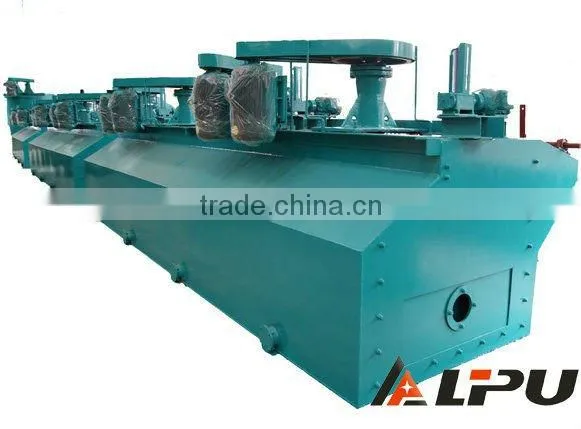

Showroom of fluorite flotation machine :
