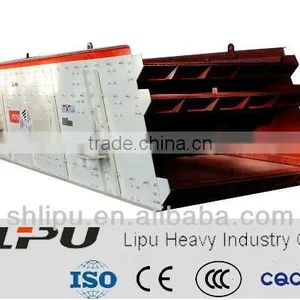

Help CenterPET and PTA Particle Linear Vibrating Screen Machine for Quarry and Crusher Plant
Related Products
-
Iron Sand Mineral Processing Flotation Machine Machinery for Small IndustriesUS$ 10,000 - 999,999MOQ: 1 Set -
Industrial Rectangular Vibrating Screen for CementUS$ 1,000 - 999,999MOQ: 1 Set
-
Llabortary Mining Equipment Flotation Cell MachineUS$ 10,000 - 999,999MOQ: 1 Set
-
Self-Nnloading Drum Magnetic Separator With Wet Magnetic FieldUS$ 1,000 - 99,999MOQ: 1 Set
-
High Speed Water Agitators With High ViscosityUS$ 1,000 - 999,999MOQ: 1 Set
Specifications
linear vibrating screen machine:1.Model:YK series,ISO9001:2000;
2.Application:Mineral,building materials,coal dressing;
Brief Introduction of linear vibrating screen machine :
vibrating screen classifier is main equipment to separate solid materials. It is widely used in mineral, building materials, coal dressing, energy, chemical industry, etc
Working principle of linear vibrating screen machine :
vibrating screen classifier produces vibrating force by vibrating generator, it makes screen body vibrate periodically according to vibrating direction. Materials are separated into various sizes according to different requests, and transported to specified places. Vibrating frequency can be adjusted by adjusting eccentric block.
Features of linear vibrating screen machine :
1. Eccentric block is vibrating source, so vibrating force is very strong.
2. Two screen bodies apply material with high quality, bolts with high strength and special welding technique, so the screen is durable.
3. Layer quantity depends on customers’ request.
4. High separating efficiency, large capacity, long life, low power consumption and little noise.
5. Two screen bodies apply tensioning technique to fasten screen, and simple structure makes it easy to change screen.
Product parameter of linear vibrating screen machine :
| Model | layer | Sievearea (m2) | Mesh size (mm) | Max feed size (mm) | Capacity (t/h) | Power (KW) | Sieve size (mm) |
| YK1236 | 1 | 4.3 | 3-100 | 300 | 20-150 | 5.5 | 1180×3550 |
| 2YK1236 | 2 | 4.3 | 3-100 | 300 | 20-150 | 5.5 | 1180×3550 |
| 3YK1236 | 3 | 4.3 | 3-100 | 300 | 20-150 | 7.5 | 1180×3550 |
| 4YK1236 | 4 | 4.3 | 3-100 | 300 | 20-150 | 11 | 1180×3550 |
| YK1548 | 1 | 7.2 | 3-100 | 400 | 20-150 | 11 | 1480×4750 |
| 2YK1548 | 2 | 7.2 | 3-100 | 400 | 20-150 | 15 | 1480×4750 |
| 3YK1548 | 3 | 7.2 | 3-100 | 400 | 20-150 | 15 | 1480×4750 |
| 4YK1548 | 4 | 7.2 | 3-100 | 200 | 20-150 | 18.5 | 1480×4750 |
| YK1848 | 1 | 8.6 | 3-100 | 400 | 32-350 | 15 | 1780×5950 |
| 2YK1848 | 2 | 8.6 | 3-100 | 400 | 32-350 | 18.5 | 1780×5950 |
| 3YK1848 | 3 | 8.6 | 3-100 | 400 | 32-350 | 18.5 | 1780×5950 |
| 4YK1848 | 4 | 8.6 | 3-100 | 400 | 32-350 | 22 | 1780×5950 |
| YK1860 | 1 | 10.8 | 3-100 | 400 | 32-350 | 15 | 1780×5950 |
| 2YK1860 | 2 | 10.8 | 3-100 | 400 | 32-350 | 18.5 | 1780×5950 |
| 3YK1860 | 3 | 10.8 | 3-100 | 400 | 32-350 | 22 | 1780×5950 |
| 4YK1860 | 4 | 10.8 | 3-100 | 400 | 32-350 | 22 | 1780×5950 |
| YK2160 | 1 | 12.6 | 3-100 | 400 | 66-720 | 18.5 | 2080×5950 |
| 2YK2160 | 2 | 12.6 | 3-100 | 400 | 66-720 | 22 | 2080×5950 |
| 3YK2160 | 3 | 12.6 | 3-100 | 400 | 66-720 | 30 | 2080×5950 |
| 4YK2160 | 4 | 12.6 | 3-100 | 400 | 66-720 | 30 | 2080×5950 |
| YK2460 | 1 | 14.4 | 3-100 | 400 | 75-750 | 18.5 | 2080×5950 |
| 2YK2460 | 2 | 14.4 | 3-100 | 400 | 75-750 | 30 | 2380×5950 |
| 3YK2460 | 3 | 14.4 | 3-100 | 400 | 75-750 | 37 | 2380×5950 |
| 4YK2460 | 4 | 14.4 | 3-100 | 400 | 75-750 | 37 | 2380×5950 |
| YK3060 | 1 | 18 | 3-100 | 400 | 200-900 | 30 | 2980x5950 |
| 2YK3060 | 2 | 18 | 3-100 | 400 | 200-900 | 37 | 2980x5950 |
| 3YK3060 | 3 | 18 | 3-100 | 400 | 200-900 | 45 | 2980x5950 |
| 4YK3060 | 4 | 18 | 3-100 | 400 | 200-900 | 45 | 2980x5950 |
Any change of technical parameters, there is no further notice.

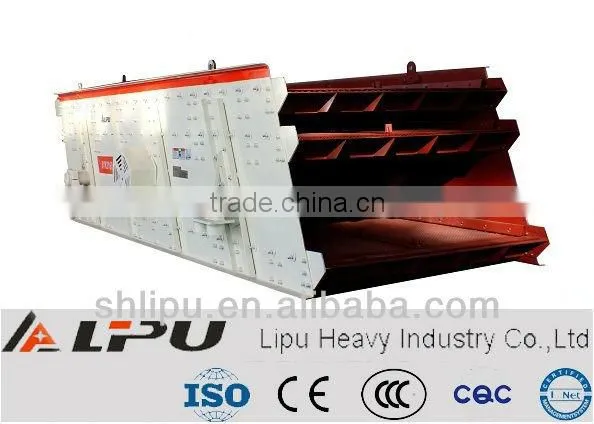

Latest Image of Shanghai Lipu linear vibrating screen machine :
Application of Shanghai Lipu linear vibrating screen machine :
