Specifications
vibrating screen price:1.Model:YK series,ISO9001:2000;
2.Application:Mineral,building materials,coal dressing;
3.Long life.
Brief Introduction of rectangular vibrating screen :
Circular Vibrating Screen is main equipment to separate solid materials. It is widely used in mineral, building materials, coal dressing, energy, chemical industry, etc
Working principle of rectangular vibrating screen :
Circular Vibrating Screen produces vibrating force by vibrating generator, it makes screen body vibrate periodically according to vibrating direction. Materials are separated into various sizes according to different requests, and transported to specified places. Vibrating frequency can be adjusted by adjusting eccentric block.
Features of rectangular vibrating screen :
1. Eccentric block is vibrating source, so vibrating force is very strong.
2. Two screen bodies apply material with high quality, bolts with high strength and special welding technique, so the screen is durable.
3. Layer quantity depends on customers’ request.
4. High separating efficiency, large capacity, long life, low power consumption and little noise.
5. Two screen bodies apply tensioning technique to fasten screen, and simple structure makes it easy to change screen.
Product parameter of rectangular vibrating screen :
| Model | layer | Sievearea (m2) | Mesh size (mm) | Max feed size (mm) | Capacity (t/h) | Power (KW) | Sieve size (mm) |
| YK1236 | 1 | 4.3 | 3-100 | 300 | 20-150 | 5.5 | 1180×3550 |
| 2YK1236 | 2 | 4.3 | 3-100 | 300 | 20-150 | 5.5 | 1180×3550 |
| 3YK1236 | 3 | 4.3 | 3-100 | 300 | 20-150 | 7.5 | 1180×3550 |
| 4YK1236 | 4 | 4.3 | 3-100 | 300 | 20-150 | 11 | 1180×3550 |
| YK1548 | 1 | 7.2 | 3-100 | 400 | 20-150 | 11 | 1480×4750 |
| 2YK1548 | 2 | 7.2 | 3-100 | 400 | 20-150 | 15 | 1480×4750 |
| 3YK1548 | 3 | 7.2 | 3-100 | 400 | 20-150 | 15 | 1480×4750 |
| 4YK1548 | 4 | 7.2 | 3-100 | 200 | 20-150 | 18.5 | 1480×4750 |
| YK1848 | 1 | 8.6 | 3-100 | 400 | 32-350 | 15 | 1780×5950 |
| 2YK1848 | 2 | 8.6 | 3-100 | 400 | 32-350 | 18.5 | 1780×5950 |
| 3YK1848 | 3 | 8.6 | 3-100 | 400 | 32-350 | 18.5 | 1780×5950 |
| 4YK1848 | 4 | 8.6 | 3-100 | 400 | 32-350 | 22 | 1780×5950 |
| YK1860 | 1 | 10.8 | 3-100 | 400 | 32-350 | 15 | 1780×5950 |
| 2YK1860 | 2 | 10.8 | 3-100 | 400 | 32-350 | 18.5 | 1780×5950 |
| 3YK1860 | 3 | 10.8 | 3-100 | 400 | 32-350 | 22 | 1780×5950 |
| 4YK1860 | 4 | 10.8 | 3-100 | 400 | 32-350 | 22 | 1780×5950 |
| YK2160 | 1 | 12.6 | 3-100 | 400 | 66-720 | 18.5 | 2080×5950 |
| 2YK2160 | 2 | 12.6 | 3-100 | 400 | 66-720 | 22 | 2080×5950 |
| 3YK2160 | 3 | 12.6 | 3-100 | 400 | 66-720 | 30 | 2080×5950 |
| 4YK2160 | 4 | 12.6 | 3-100 | 400 | 66-720 | 30 | 2080×5950 |
| YK2460 | 1 | 14.4 | 3-100 | 400 | 75-750 | 18.5 | 2080×5950 |
| 2YK2460 | 2 | 14.4 | 3-100 | 400 | 75-750 | 30 | 2380×5950 |
| 3YK2460 | 3 | 14.4 | 3-100 | 400 | 75-750 | 37 | 2380×5950 |
| 4YK2460 | 4 | 14.4 | 3-100 | 400 | 75-750 | 37 | 2380×5950 |
| YK3060 | 1 | 18 | 3-100 | 400 | 200-900 | 30 | 2980x5950 |
| 2YK3060 | 2 | 18 | 3-100 | 400 | 200-900 | 37 | 2980x5950 |
| 3YK3060 | 3 | 18 | 3-100 | 400 | 200-900 | 45 | 2980x5950 |
| 4YK3060 | 4 | 18 | 3-100 | 400 | 200-900 | 45 | 2980x5950 |
Any change of technical parameters, there is no further notice.

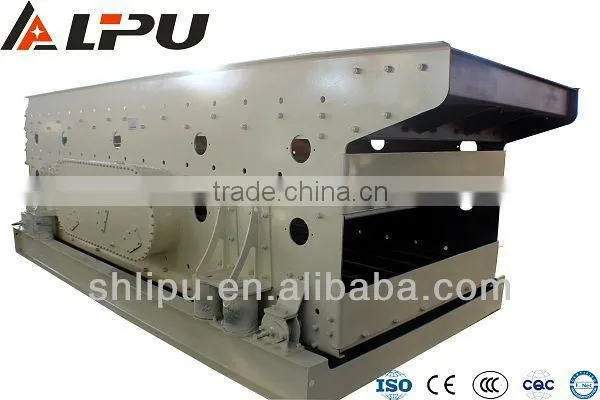

Latest Image of Shanghai Lipu rectangular vibrating screen :
Application of Shanghai Lipu rectangular vibrating screen :
